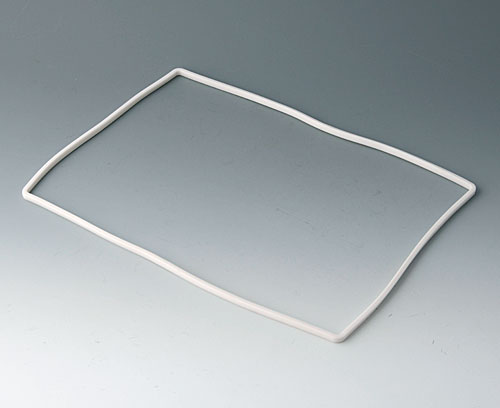

B4146005 Sealing L (bottom part - front design)

B4146005

Sealing L (bottom part - front design)

For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).

Supply

1 sealing

  • Usato per
B4046407 Cover L

B4046407

Cover L Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply 1 cover, assembly kit

Chiudi

B4046407

Cover L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046427 Cover L, for iPad Air

B4046427

Cover L, for iPad Air With preparation and fixing material for installing an iPad Air. This module is suitable for Type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.

Supply 1 top part, 2 attachment strips, 2 assembly kits (iPad is not included)

Chiudi

B4046427

Cover L, for iPad Air
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046707 Bottom part L flat, version I

B4046707

Bottom part L flat, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part flat

Chiudi

B4046707

Bottom part L flat, version I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046717 Bottom part L flat, version II

B4046717

Bottom part L flat, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part flat

Chiudi

B4046717

Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757 Bottom part L high, version I

B4046757

Bottom part L high, version I Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting cover or aluminium front panel (sep. article)

Supply 1 bottom part high

Chiudi

B4046757

Bottom part L high, version I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046767 Bottom part L high, version II

B4046767

Bottom part L high, version II Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version Suitable for mounting ABS front panel or glass panel (sep. article)

Supply 1 bottom part high

Chiudi

B4046767

Bottom part L high, version II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046827 Base L - desk-top -

B4046827

Base L - desk-top - Assembly unit: for case combinations with open bottom part vers. I or II. Case screwed to base. Assembly screws hidden from view. Ergonomically designed for operating and reading off. Assembly of the operating panel vertically or horizontally, depending on the application, see assembly instruction.

Supply 1 base, 2 covers, assembly kit

Chiudi

B4046827

Base L - desk-top -
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
183x183x73mm
B4046837 Base L - charging station, case deposit mobile

B4046837

Base L - charging station, case deposit mobile Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.

Supply 1 base, 1 base cover, 2 covers, assembly kit

Chiudi

B4046837

Base L - charging station, case deposit mobile
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
183x183x80mm
B4046847 Base L - desk-top/wall -

B4046847

Base L - desk-top/wall - Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.

Supply 1 base, 2 clips, assembly kit

Chiudi

B4046847

Base L - desk-top/wall -
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
183x183x73mm
B4146047 Battery compartment and lid L, 5 x AA

B4146047

Battery compartment and lid L, 5 x AA Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.

Supply 1 battery compartment and lid, assembly kit

Chiudi

B4146047

Battery compartment and lid L, 5 x AA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4146106 Front panel L

B4146106

Front panel L Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4146106

Front panel L
Prodotto aggiunto alla lista
Aluminium
matt anodised
271,5x191,5x2mm
B4146107 Front panel L

B4146107

Front panel L Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.

Supply 1 front panel, assembly kit

Chiudi

B4146107

Front panel L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
275,6x195,6x15,5mm
B4146126 Front panel L, for iPad Air

B4146126

Front panel L, for iPad Air With preparation and fixing material for installing an iPad Air. This module is suitable for type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.

Supply 1 front panel, 2 attachment strips, 1 assembly kits (iPad is not included)

Chiudi

B4146126

Front panel L, for iPad Air
Prodotto aggiunto alla lista
Aluminium
matt anodised
275,4x195,4x4mm
B4146167 Bottom panel with handle recess L

B4146167

Bottom panel with handle recess L Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, assembly kit

Chiudi

B4146167

Bottom panel with handle recess L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4146203 Glass panel L

B4146203

Glass panel L Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.

Version Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean

Supply 1 glass panel incl. mounting frame and adhesive foil

Chiudi

B4146203

Glass panel L
Prodotto aggiunto alla lista
Glass
clear
275,6x195,6x17,7mm
B4146247 Wall suspension element L

B4146247

Wall suspension element L Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.

Supply 1 wall suspension element with snap-in mechanism

Chiudi

B4146247

Wall suspension element L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4146257 Bottom panel with snap-in strips L

B4146257

Bottom panel with snap-in strips L Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply 1 bottom panel, 2 snap-in strips, assembly kit

Chiudi

B4146257

Bottom panel with snap-in strips L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4146587 Installation assembly kit L, flat

B4146587

Installation assembly kit L, flat For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.

Version Holders matches bottom part, flat

Supply 4 holders, assembly kit, design frame

Chiudi

B4146587

Installation assembly kit L, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
325x251mm
B4146597 Installation assembly kit L, high

B4146597

Installation assembly kit L, high For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.

Version Holders matches bottom part, high

Supply 4 holders, assembly kit, design frame

Chiudi

B4146597

Installation assembly kit L, high
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
325x251mm
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Weight/1 part
15 g
Customs tariff number
(OKW product)
40169300
Country of manufacture
Germany
