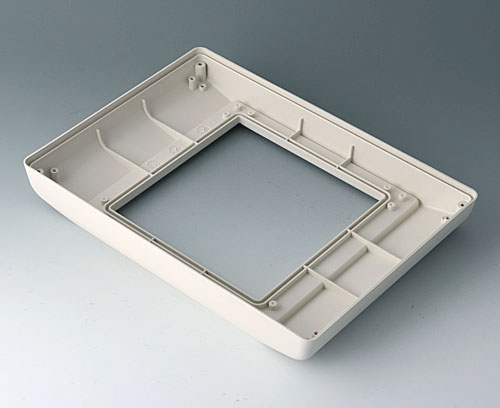

B4046767 Bottom part L high, version II

B4046767

Bottom part L high, version II

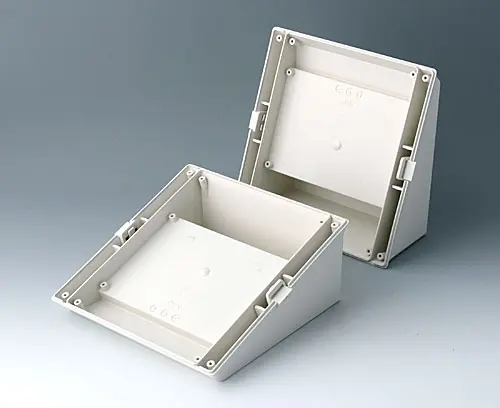

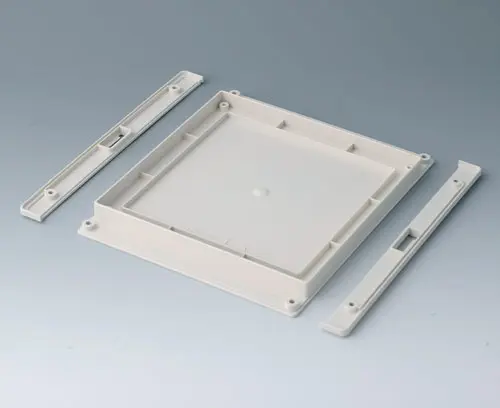

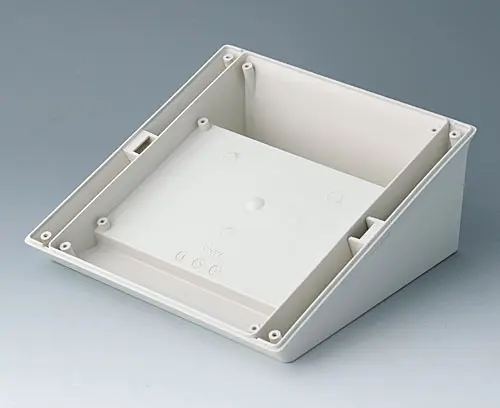

Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.

Version

Suitable for mounting ABS front panel or glass panel (sep. article)

Supply

1 bottom part high

  • Componenti adatti
  • Modifiche specifiche del cliente

Mobile con vano batterie

Mobile senza vano batterie

Mobile con stazione di ricarica

Mobile / parete

Desk (avvitato)

Desk / parete

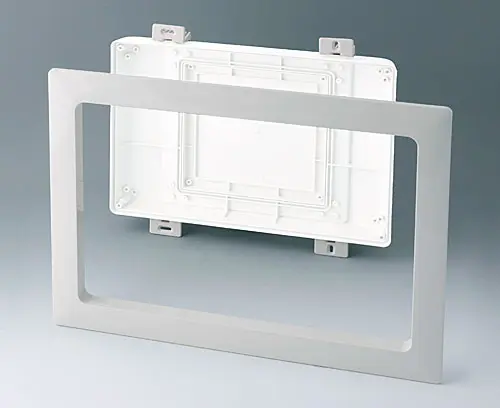

Incasso

Customising options for B4046767

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 54 opt.

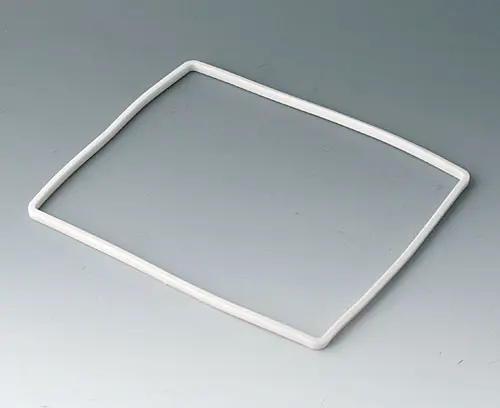

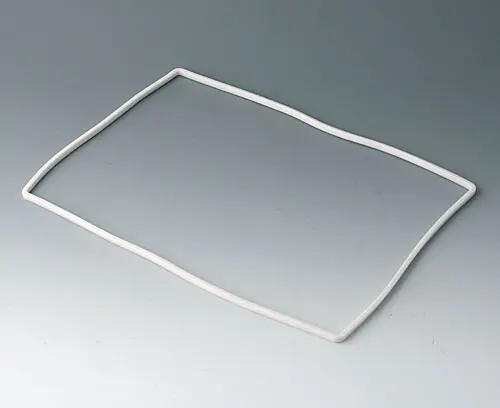

Sealings (accessories) as well as system components to complete required
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
275 mm
Depth
195 mm
Height
36,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 24.138 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
207 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
