Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).

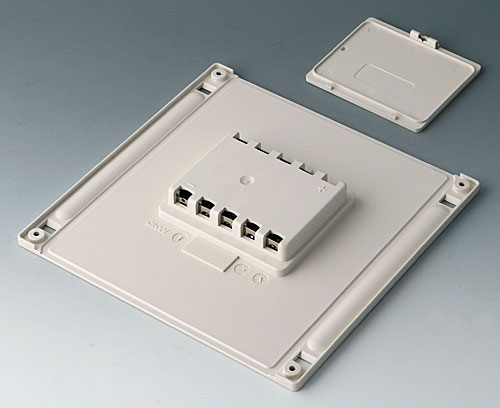

1 vano batterie con coperchio.
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio.
System components to complete
B4046407
Cover L
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Chiudi
Cover L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046427
Cover L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for Type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply
1 top part, 2 attachment strips, 2 assembly kits (iPad is not included)
Chiudi
Cover L, for iPad Air
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146106
Front panel L
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel L
Prodotto aggiunto alla lista
Aluminium
matt anodised
271,5x191,5x2mm
B4146107
Front panel L
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275,6x195,6x15,5mm
B4146126
Front panel L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply
1 front panel, 2 attachment strips, 1 assembly kits (iPad is not included)
Chiudi
Front panel L, for iPad Air
Prodotto aggiunto alla lista
Aluminium
matt anodised
275,4x195,4x4mm
B4146203
Glass panel L
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Chiudi
Glass panel L
Prodotto aggiunto alla lista
Glass
clear
275,6x195,6x17,7mm
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 vano batterie con coperchio o piastra di base con incavo per le dita.
1 base – stazione di ricarica, appoggio contenitore –
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio o piastra di base con incavo per le dita.
1 base – stazione di ricarica, appoggio contenitore –
System components to complete
B4046407
Cover L
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Chiudi
Cover L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046427
Cover L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for Type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply
1 top part, 2 attachment strips, 2 assembly kits (iPad is not included)
Chiudi
Cover L, for iPad Air
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046837
Base L - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply
1 base, 1 base cover, 2 covers, assembly kit
Chiudi
Base L - charging station, case deposit mobile
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
183x183x80mm
B4146106
Front panel L
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel L
Prodotto aggiunto alla lista
Aluminium
matt anodised
271,5x191,5x2mm
B4146107
Front panel L
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275,6x195,6x15,5mm
B4146126
Front panel L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply
1 front panel, 2 attachment strips, 1 assembly kits (iPad is not included)
Chiudi
Front panel L, for iPad Air
Prodotto aggiunto alla lista
Aluminium
matt anodised
275,4x195,4x4mm
B4146203
Glass panel L
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Chiudi
Glass panel L
Prodotto aggiunto alla lista
Glass
clear
275,6x195,6x17,7mm
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Componenti minimi
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio)
1 vano batterie con coperchio o 1 piastra di base con incavo per le dita.
1 supporto parete.
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio o 1 piastra di base con incavo per le dita.
1 supporto parete.
System components to complete
B4046407
Cover L
Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.
Supply
1 cover, assembly kit
Chiudi
Cover L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046427
Cover L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for Type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply
1 top part, 2 attachment strips, 2 assembly kits (iPad is not included)
Chiudi
Cover L, for iPad Air
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x25,5mm
B4046707
Bottom part L flat, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046757
Bottom part L high, version I
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting cover or aluminium front panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version I
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146106
Front panel L
Assembly unit: suitable for bottom part vers. I. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel L
Prodotto aggiunto alla lista
Aluminium
matt anodised
271,5x191,5x2mm
B4146107
Front panel L
Assembly unit: suitable for bottom part vers. II. For mounting operating elements of all kinds.
Supply
1 front panel, assembly kit
Chiudi
Front panel L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275,6x195,6x15,5mm
B4146126
Front panel L, for iPad Air
With preparation and fixing material for installing an iPad Air. This module is suitable for type I bottom parts. Protection class with iPad installed max. IP40. We can also offer the option of installing other smaller tablets in our enclosures in this way.
Supply
1 front panel, 2 attachment strips, 1 assembly kits (iPad is not included)
Chiudi
Front panel L, for iPad Air
Prodotto aggiunto alla lista
Aluminium
matt anodised
275,4x195,4x4mm
B4146203
Glass panel L
Assembly unit: suitable for bottom part vers. II. Front design without printing. Various media and environmental parameters affect the adhesion of the adhesive foil. Please check before use if it is suitable for your application.
Version
Safety glass with anti-reflex coating, high scratch-resistance, very easy to clean
Supply
1 glass panel incl. mounting frame and adhesive foil
Chiudi
Glass panel L
Prodotto aggiunto alla lista
Glass
clear
275,6x195,6x17,7mm
B4146247
Wall suspension element L
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply
1 wall suspension element with snap-in mechanism
Chiudi
Wall suspension element L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Customising options for B4146047
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Accessori per contenitori
Aggiungi al carrello
