Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 vano batterie con coperchio.
oppure
1 parte inferiore, vers. II.

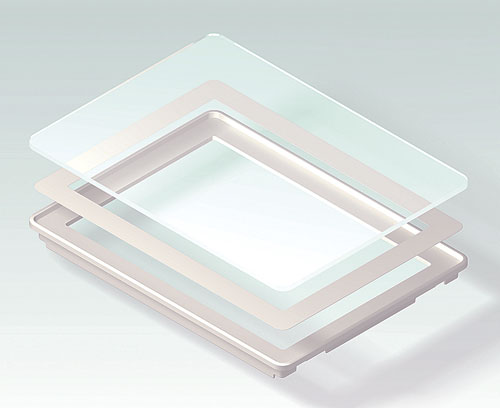

1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio.
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146047
Battery compartment and lid L, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply
1 battery compartment and lid, assembly kit
Chiudi
Battery compartment and lid L, 5 x AA
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 piastra di base con incavo per le dita.
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 piastra di base con incavo per le dita.
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146167
Bottom panel with handle recess L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, assembly kit
Chiudi
Bottom panel with handle recess L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 vano batterie con coperchio o piastra di base con incavo per le dita.
1 base – stazione di ricarica, appoggio contenitore –
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio o piastra di base con incavo per le dita.
1 base – stazione di ricarica, appoggio contenitore –
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046837
Base L - charging station, case deposit mobile
Assembly unit: Suitable for case with battery compartment or bottom panel with handle recess. Ergonomically designed for desktop and for wall mounting favorable. Can be equipped either for installing the case for desktop applications or with a snap-in mechanism for secure wall mounted and desktop applications. Case position vertically or horizontally, depending on the application - see assembly instruction. Contacts for simple data and charging current transfer as accessories.
Supply
1 base, 1 base cover, 2 covers, assembly kit
Chiudi
Base L - charging station, case deposit mobile
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
183x183x80mm
B4146047
Battery compartment and lid L, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply
1 battery compartment and lid, assembly kit
Chiudi
Battery compartment and lid L, 5 x AA
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
B4146167
Bottom panel with handle recess L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, assembly kit
Chiudi
Bottom panel with handle recess L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Componenti minimi
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio)
1 vano batterie con coperchio o 1 piastra di base con incavo per le dita.
1 supporto parete.
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 vano batterie con coperchio o 1 piastra di base con incavo per le dita.
1 supporto parete.
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146047
Battery compartment and lid L, 5 x AA
Assembly unit: suitable for bottom part vers. I and II, screw fixing. Battery clips for 5 x AA, tin-plated. Protection against incorrect polarity as well as anti-rotation device.
Supply
1 battery compartment and lid, assembly kit
Chiudi
Battery compartment and lid L, 5 x AA
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
B4146167
Bottom panel with handle recess L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, assembly kit
Chiudi
Bottom panel with handle recess L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
B4146247
Wall suspension element L
Hidden wall mounting. While closed, the entire case (version with battery compartment or base plate with handle recess) can be mounted on the wall, fixed and also removed again by means of the wall suspension element.
Supply
1 wall suspension element with snap-in mechanism
Chiudi
Wall suspension element L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Accessory
A9178007
Contacts, male
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178008
Contacts, female
Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.
Supply
1 contact
Chiudi
Contacts, female
Prodotto aggiunto alla lista
gold-plated
Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 base – desk –
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 base – desk –
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046827
Base L - desk-top -
Assembly unit: for case combinations with open bottom part vers. I or II. Case screwed to base. Assembly screws hidden from view. Ergonomically designed for operating and reading off. Assembly of the operating panel vertically or horizontally, depending on the application, see assembly instruction.
Supply
1 base, 2 covers, assembly kit
Chiudi
Base L - desk-top -
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
183x183x73mm
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Componenti minimi (per elementi singoli)
1 parte inferiore, vers. I.
1 design frontale (parte superiore o placca frontale in alluminio).
1 piastra di base con listelli di fissaggio.
1 base – desk/parete –
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 piastra di base con listelli di fissaggio.
1 base – desk/parete –
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4046847
Base L - desk-top/wall -
Assembly unit: for case combinations with bottom panel and snap-in strips. Case snaps into the base in vertical or horizontal position, depending on the application - see assembly instruction. If required, unit can be secured by latch lock. Ergonomically designed for operating and reading off. Direct wall mounting.
Supply
1 base, 2 clips, assembly kit
Chiudi
Base L - desk-top/wall -
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
183x183x73mm
B4146257
Bottom panel with snap-in strips L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, 2 snap-in strips, assembly kit
Chiudi
Bottom panel with snap-in strips L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Componenti minimi
1 parte inferiore, vers. I.
1 design frontale (parte superiore).
1 piastra di base.
1 set per il montaggio a incasso.
oppure
1 parte inferiore, vers. II.
1 design frontale (placca frontale in ABS o pannello in vetro).
1 piastra di base.
1 set per il montaggio a incasso.
System components to complete
B4046717
Bottom part L flat, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part flat
Chiudi
Bottom part L flat, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x26,5mm
IP 54 opt.
B4046767
Bottom part L high, version II
Assembly unit: unique variety of applications - mobile / desk-top and wall mounted. With screw pillars for PCB fixing. End piece for bottom part required - depending on the application - battery compartment and lid / bottom panel with handle recess / bottom panel with snap-in strips, base (desk-top), base (station for mobile cases) or base (desk-top/wall) can be assembled - see separate articles.
Version
Suitable for mounting ABS front panel or glass panel (sep. article)
Supply
1 bottom part high
Chiudi
Bottom part L high, version II
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
275x195x36,5mm
IP 54 opt.
B4146257
Bottom panel with snap-in strips L
Assembly unit: suitable for bottom part vers. I and II, screw fixing.
Supply
1 bottom panel, 2 snap-in strips, assembly kit
Chiudi
Bottom panel with snap-in strips L
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
B4146587
Installation assembly kit L, flat
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version
Holders matches bottom part, flat
Supply
4 holders, assembly kit, design frame
Chiudi
Installation assembly kit L, flat
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
325x251mm
B4146597
Installation assembly kit L, high
For the installation of the INTERFACE-TERMINAL enclosure in walls, in front panels, machines or systems. Can only be used in conjunction with bottom panel or open rear side of enclosure. Easy installation: Mount holders on the fully assembled enclosure. Place the enclosure with holders in the wall/front panel and align it. Mark and drill mounting holes. Then bolt the enclosure with the holders from the front and push on the design frame.
Version
Holders matches bottom part, high
Supply
4 holders, assembly kit, design frame
Chiudi
Installation assembly kit L, high
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
325x251mm
Accessory "protection"
B4146005
Sealing L (bottom part - front design)
For a higher protection class. Suitable between bottom part and front design (cover / aluminium front panel / ABS front panel or glass panel).
Supply
1 sealing
Chiudi
Sealing L (bottom part - front design)
Prodotto aggiunto alla lista
SEBS (TPE)
B4146006
Sealing L (bottom part - base/bot. panel/bat. comp...)
For a higher protection class. Suitable between
- bottom part and base / bottom panel / battery compartment respectively
- base and base cover (station for charging station, case deposit mobile).
Supply
1 sealing
Chiudi
Sealing L (bottom part - base/bot. panel/bat. comp...)
Prodotto aggiunto alla lista
SEBS (TPE)
Customising options for B4146203
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Accessori per contenitori
Aggiungi al carrello
