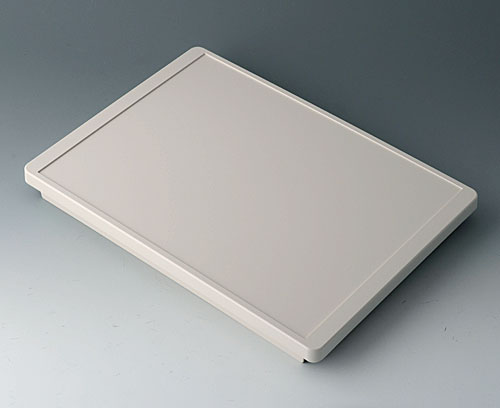

B4046407 Cover L

B4046407

Cover L

Assembly unit: suitable for bottom part vers. I. For protecting the electronics. Integrated screw pillars for PCB fixing. Recessed operating area for protecting the membrane keyboard. Fixing from the rear.

Supply

1 cover, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Mobile con vano batterie

Mobile senza vano batterie

Mobile con stazione di ricarica

Mobile / parete

Desk (avvitato)

Desk / parete

Incasso

Customising options for B4046407

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Width
275 mm
Depth
195 mm
Height
25,5 mm
Keypad length
183 mm
Keypad width
247 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.343 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
231 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
