B4146257 Bottom panel with snap-in strips L

B4146257

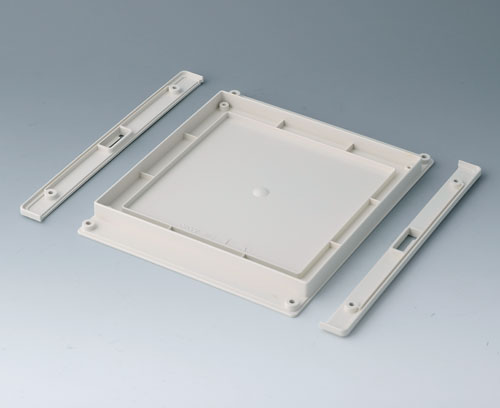

Bottom panel with snap-in strips L

Assembly unit: suitable for bottom part vers. I and II, screw fixing.

Supply

1 bottom panel, 2 snap-in strips, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Desk / parete

Incasso

Customising options for B4146257

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Group)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.339 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
107 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
