DIATEC

Diatec

Contenitori dal design piatto

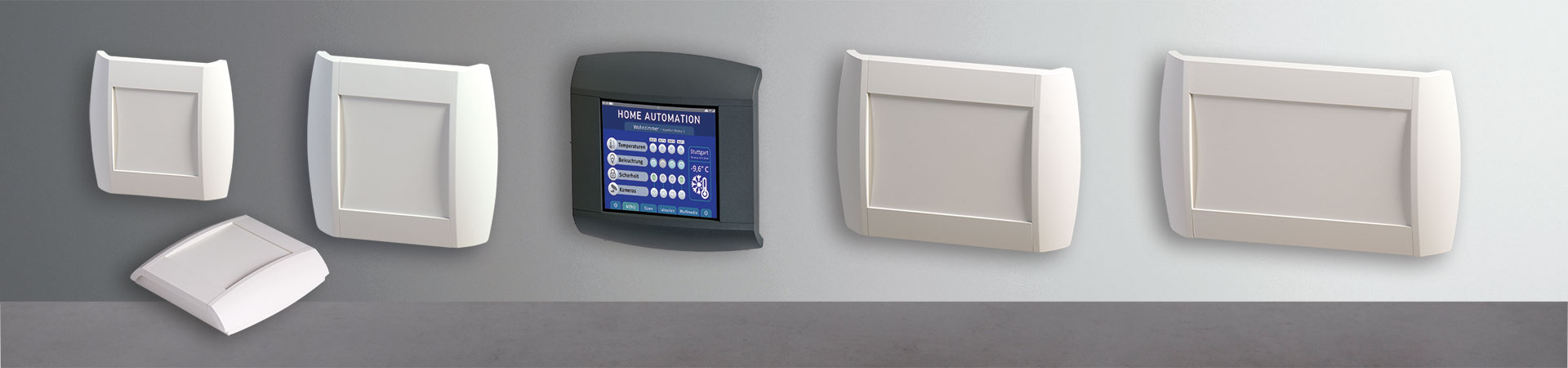

La forma elegante dei contenitori DIATEC li rende particolarmente adatti agli ambienti dell'abitazione e del luogo di lavoro – la soluzione ideale per componenti di comunicazione e di rete.

  • Design moderno, piatto per applicazioni da scrivania e a muro

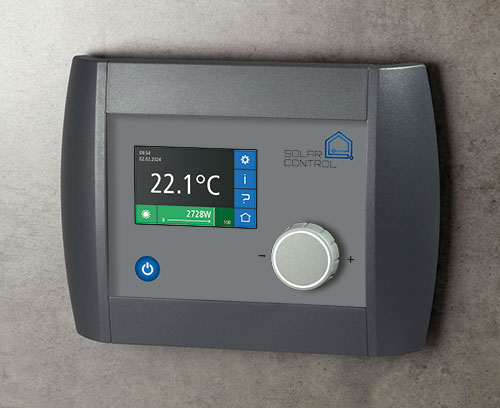

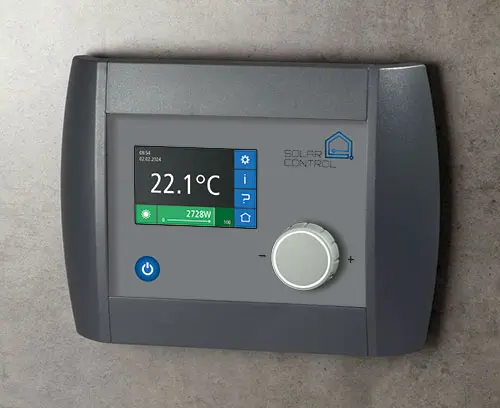

  • Interfaccia centrale per tastiere a membrana, touch screen o display ecc.

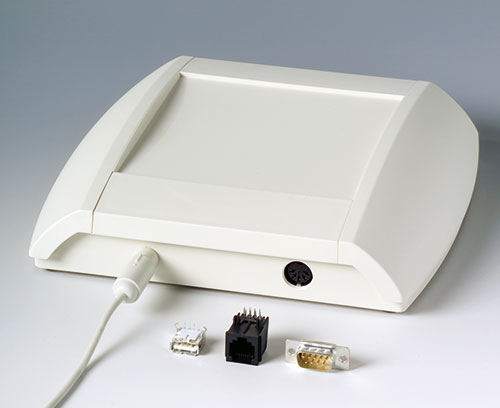

  • Installazione protetta di interfacce, passacavi a vite, connettori ecc.

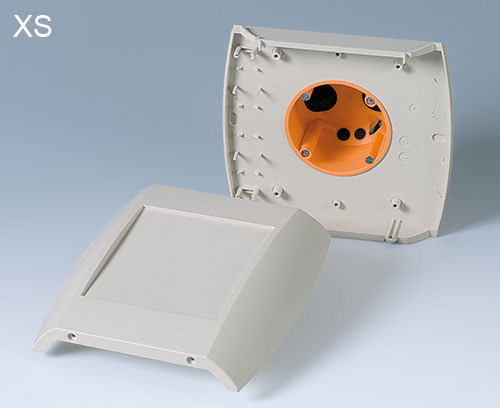

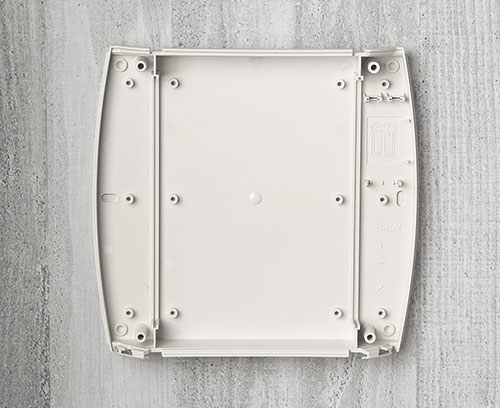

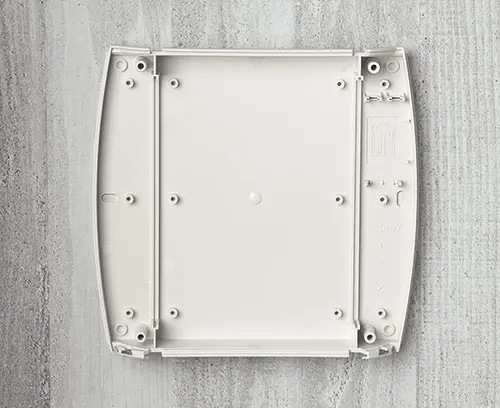

  • Montaggio a filo semplice e invisibile; fissaggio mediante asole o negli angoli del contenitore

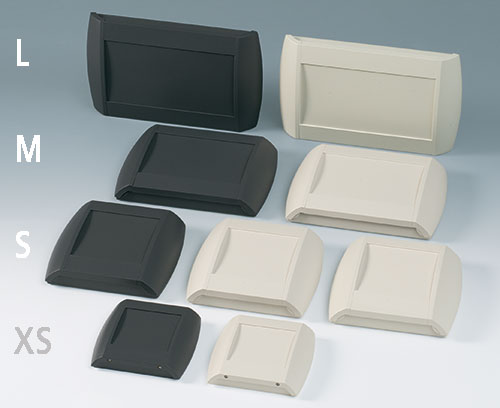

  • 4 misure, 2 colori

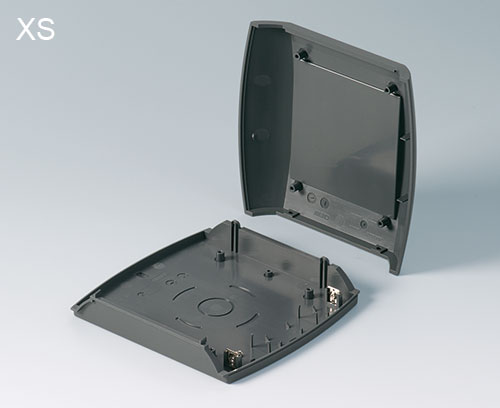

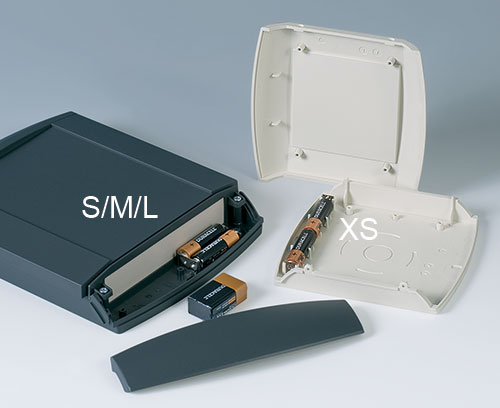

  • DIATEC XS: contenitore composto da 2 parti, una superiore e una inferiore, avvitate, vano batterie incorporato per 2 x AA, contorno della scatola da incasso preformato nella parte inferiore

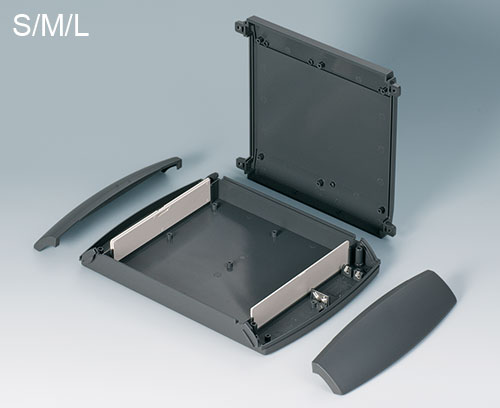

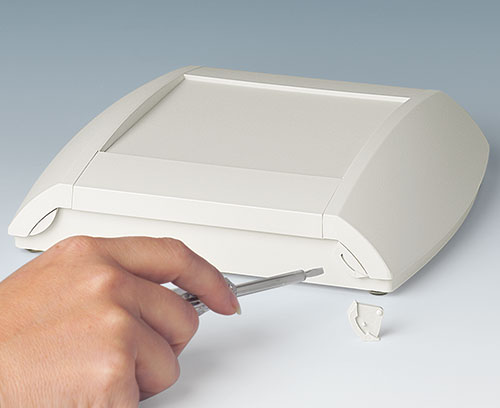

  • DIATEC S, M, L: contenitore composto da 4 parti, una superiore e una inferiore e due placche per coprire i collegamenti a vite; se necessario le placche con innesto a scatto possono essere bloccate per prevenire manomissioni, vano batterie incorporato per 2 x AA o 1 x 9 V

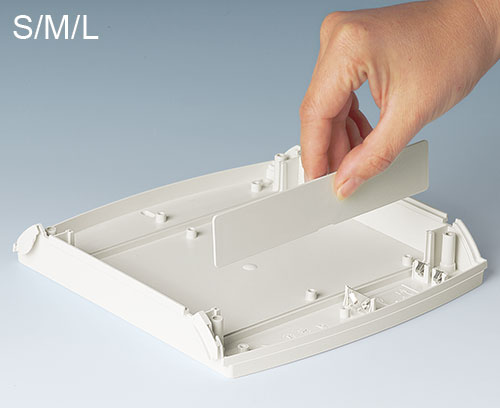

  • Piastre a innesto separate che fungono da divisorio, ad es. come protezione dal contatto con i componenti elettronici in caso di sostituzione delle batterie (disponibile come accessorio per S, M, L)
  • Grado di protezione IP 40

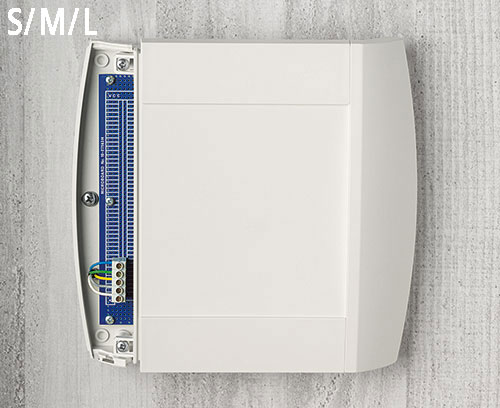

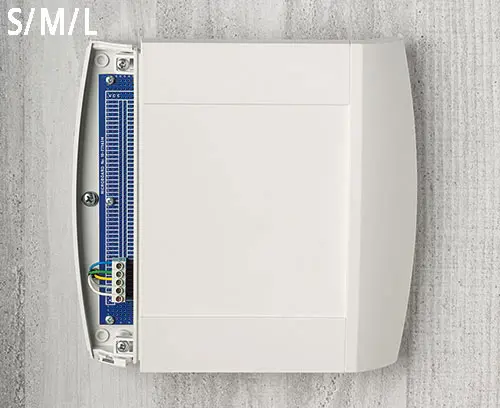

  • Placche amovibili, pratiche in caso di operazioni di collegamento e di sostituzione delle batterie (S, M, L)
  • Calotta nel colore del contenitore, traslucido o trasparente a copertura dell'area di dialogo (come accessorio per S, M, L)
  • Punti di fissaggio per schede e componenti di montaggio
  • Esempi di applicazione

Application fields

  • Periferiche di computer e informatica
  • IoT/IIoT
  • Sistemi di rilevamento dati sul posto di lavoro
  • Impianti di intercomunicazione e di monitoraggio
  • Dispositivi per il controllo dell'accesso
  • Metrologia
  • Tecnica di regolazione
  • Tecnica medicale e di laboratorio
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente
A9092107 DIATEC XS

A9092107

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Chiudi

A9092107

DIATEC XS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
150x37x155mm
IP 40
A9092108 DIATEC XS

A9092108

DIATEC XS Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply Top and bottom part, assembly kit

Chiudi

A9092108

DIATEC XS
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
150x37x155mm
IP 40
A9093107 DIATEC S

A9093107

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Chiudi

A9093107

DIATEC S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
210x48x200mm
IP 40
A9093108 DIATEC S

A9093108

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Chiudi

A9093108

DIATEC S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
210x48x200mm
IP 40
A9094107 DIATEC M

A9094107

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Chiudi

A9094107

DIATEC M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
270x48x200mm
IP 40
A9094108 DIATEC M

A9094108

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Chiudi

A9094108

DIATEC M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
270x48x200mm
IP 40
A9095107 DIATEC L

A9095107

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Chiudi

A9095107

DIATEC L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
330x48x200mm
IP 40
A9095108 DIATEC L

A9095108

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Chiudi

A9095108

DIATEC L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
330x48x200mm
IP 40
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Chiudi

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative

Chiudi

A9190015

Set of battery clips, 2 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated
A9193121 Hinged lid S, L

A9193121

Hinged lid S, L Hinged lid for covering the dialog zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193121

Hinged lid S, L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
translucent
A9193122 Hinged lid S, L

A9193122

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193122

Hinged lid S, L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
translucent
A9193127 Hinged lid S, L

A9193127

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193127

Hinged lid S, L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9193128 Hinged lid S, L

A9193128

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193128

Hinged lid S, L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
A9193131 Hinged lid S, L

A9193131

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193131

Hinged lid S, L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
clear
A9193132 Hinged lid S, L

A9193132

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193132

Hinged lid S, L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
clear
A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Chiudi

A9194007

Slot-in panel
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
156x30x3mm
A9194121 Hinged lid M

A9194121

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9194121

Hinged lid M
Prodotto aggiunto alla lista
PC (UL 94 V-0)
translucent
A9194122 Hinged lid M

A9194122

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9194122

Hinged lid M
Prodotto aggiunto alla lista
PC (UL 94 V-0)
translucent
A9194127 Hinged lid M

A9194127

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9194127

Hinged lid M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9194128 Hinged lid M

A9194128

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9194128

Hinged lid M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
A9194131 Hinged lid M

A9194131

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9194131

Hinged lid M
Prodotto aggiunto alla lista
PC (UL 94 V-0)
clear
A9194132 Hinged lid M

A9194132

Hinged lid M Hinged lid for covering the dialogue zone. 2 mounting holes ø 4.2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9194132

Hinged lid M
Prodotto aggiunto alla lista
PC (UL 94 V-0)
clear
A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9212330

Anti-slide feet 12 x 3.5 mm
Prodotto aggiunto alla lista
transparent
B1360048 Wall suspension elements

B1360048

Wall suspension elements Two-part construction. The adapter is screwed down together with the base part of the case. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element, 1 adapter 58 x 128 mm, assembly kit

Chiudi

B1360048

Wall suspension elements
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032

Opzioni prodotto per Diatec

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
