A9092108 DIATEC XS

A9092108

DIATEC XS

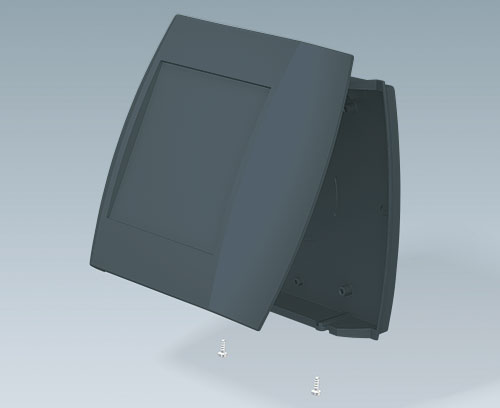

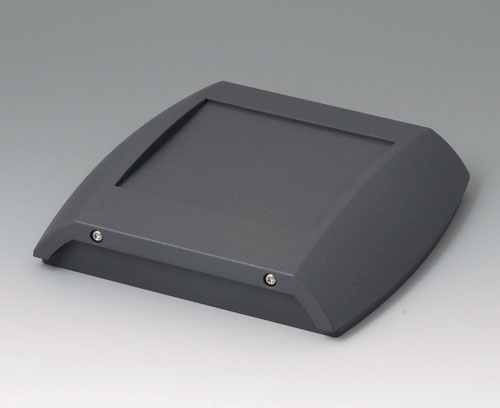

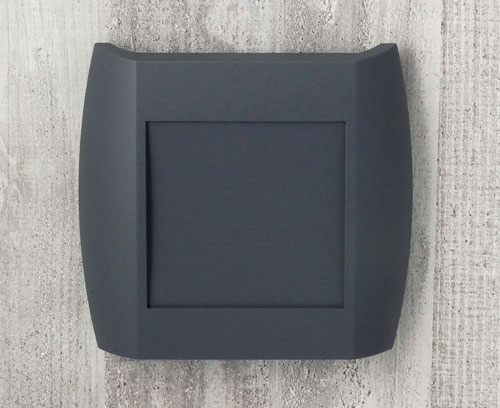

Two-part case. The bottom part can be fixed directly to the wall, the top part is fixed by Torx T10 stainless steel screws from above or below. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCB in the bottom and top parts. Integrated battery compartment for 2 x AA.

Supply

Top and bottom part, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9190015 Set of battery clips, 2 x AA

A9190015

Set of battery clips, 2 x AA For contacting the batteries. Complies with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly!

Supply 1 single contact positive, 1 single contact negative
