A9093108 DIATEC S

A9093108

DIATEC S

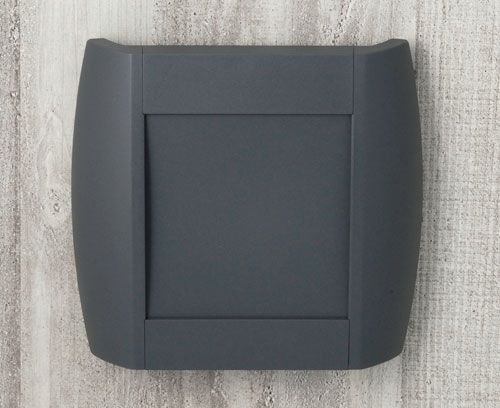

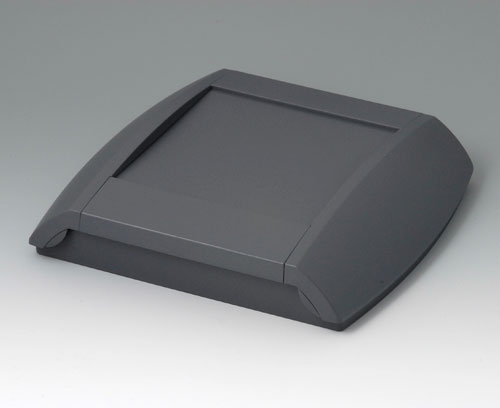

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorised access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply

Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Chiudi

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated

Accessory "protection"

A9193122 Hinged lid S, L

A9193122

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193122

Hinged lid S, L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
translucent
A9193128 Hinged lid S, L

A9193128

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193128

Hinged lid S, L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
A9193132 Hinged lid S, L

A9193132

Hinged lid S, L Hinged lid for covering the dialogue zone on DIATEC S or for partially covering the dialog area on DIATEC L (on one side). 2 mounting holes ø 4,2 mm necessary.

Supply 1 hinged lid, assembly kit

Chiudi

A9193132

Hinged lid S, L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
clear
A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Chiudi

A9194007

Slot-in panel
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
156x30x3mm

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9212330 Anti-slide feet 12 x 3.5 mm

A9212330

Anti-slide feet 12 x 3.5 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9212330

Anti-slide feet 12 x 3.5 mm
Prodotto aggiunto alla lista
transparent

Customising options for A9093108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni

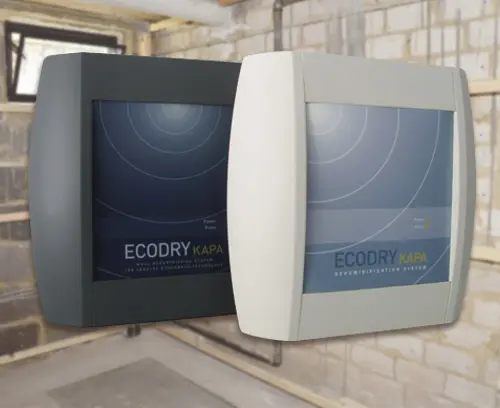

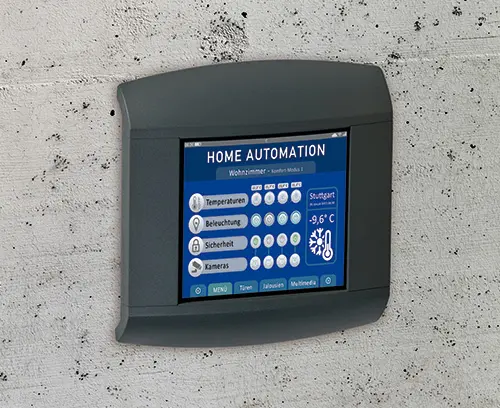

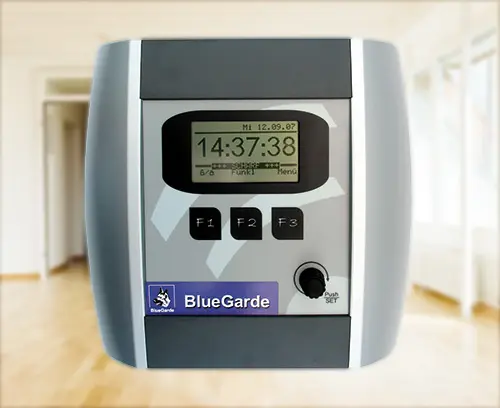

  • Esempi di applicazione
  • Purchasing Data
Protection class
Colore
lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
210 mm
Height
48 mm
Depth
200 mm
PCB length, base
120 mm
PCB width, base
180 mm
PCB length, top
120 mm
PCB width, top
180 mm
Keypad length
127,6 mm
Keypad width
119,7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.261 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
330 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
