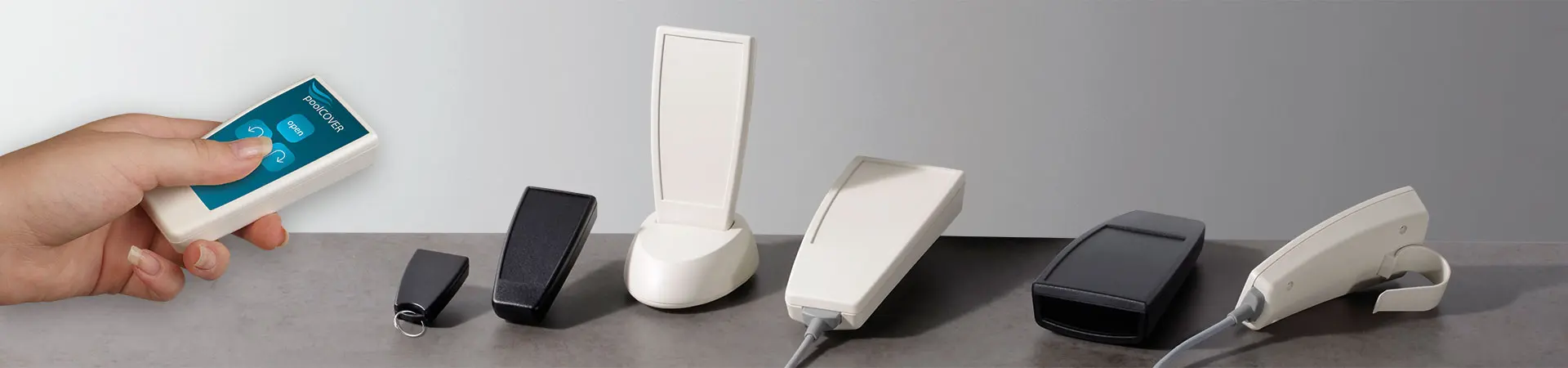

SMART-CASE

Smart-Case

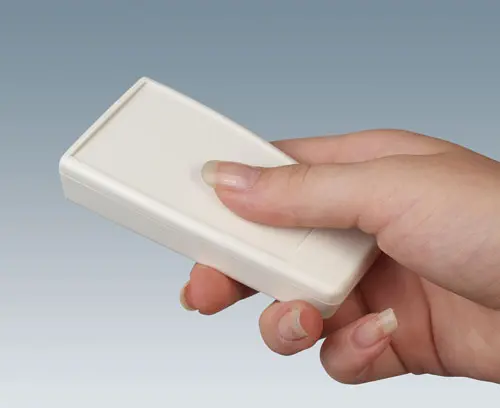

Contenitori estremamente maneggevoli

L’idea di dare maggior importanza alle esigenze ergonomiche è stato il punto di partenza per lo sviluppo della serie di contenitori per applicazioni mobili SMART-CASE.

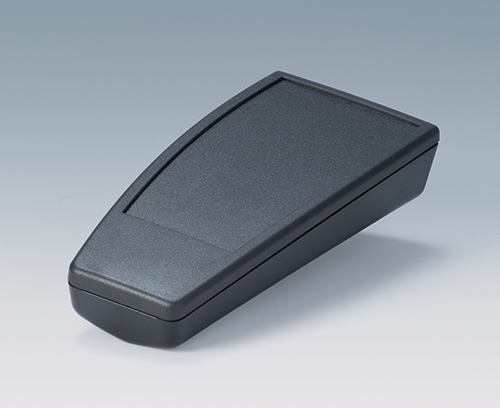

  • Forma dalle linee curve, convince per la sua indiscussa maneggevolezza

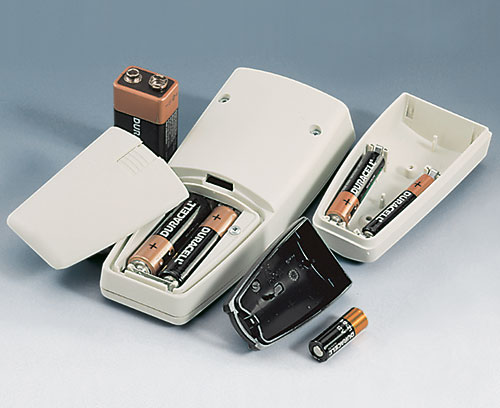

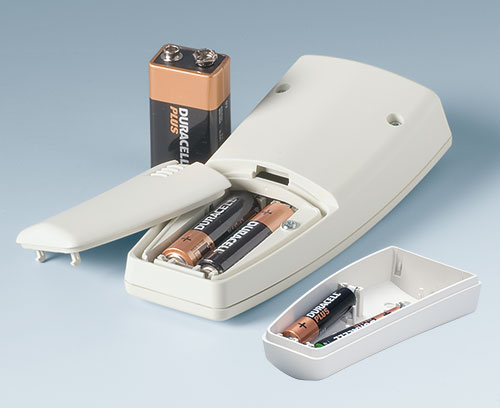

  • Ideale per telecomandi collegati con cavo o con funzionamento a batteria: batterie AAA, AA, batteria piatta da 9 V o pila cilindrica da 12 V

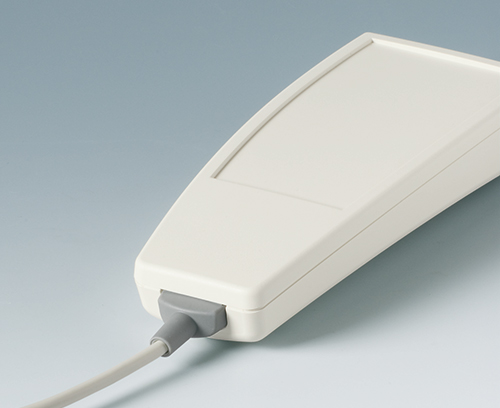

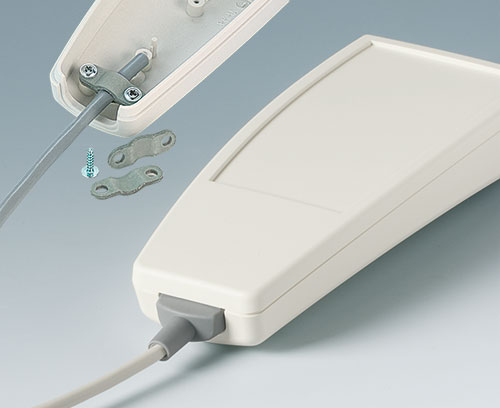

  • Passacavi adatti per i comuni cavi rotondi (misure M, L e XL)

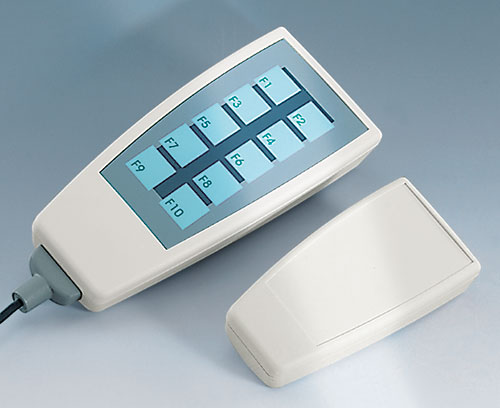

  • Superficie di comando incavata a protezione della tastiera a membrana/pellicola decorativa

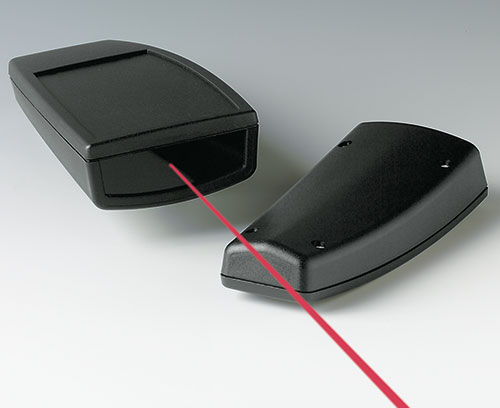

  • ABS (UL 94 HB), disponibile anche in plexiglass PMMA trasparente ai raggi infrarossi

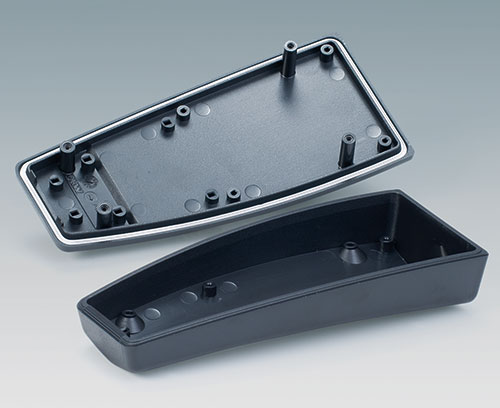

  • Grado di protezione fino a IP 65: misure L e XL con guarnizione opzionale e senza vano batteria
  • Pratica clip da cintura e supporto come accessori per riporlo in modo sicuro

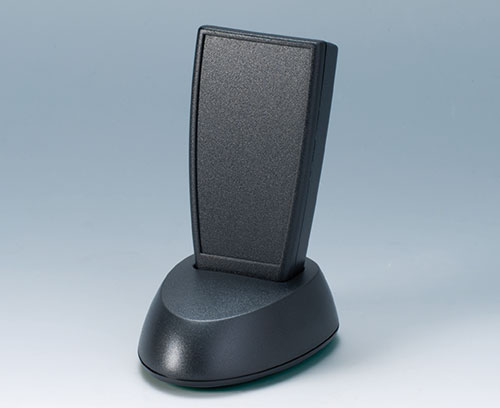

  • Base M, L e XL per applicazioni da scrivania

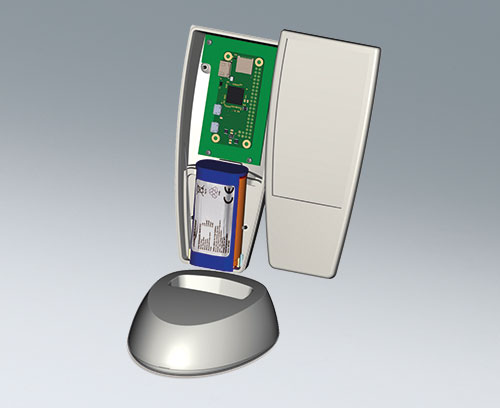

  • Punti di fissaggio ovvero base di fissaggio per schede e componenti di montaggio

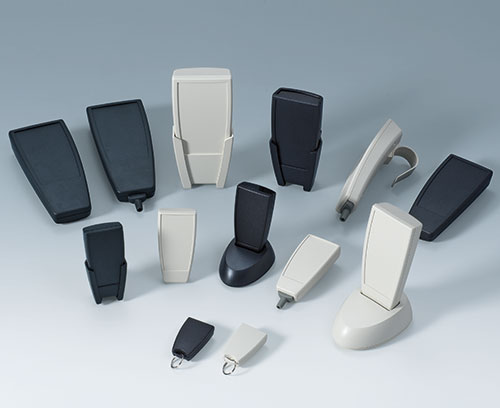

  • 4 misure
  • Esempi di applicazione

Application fields

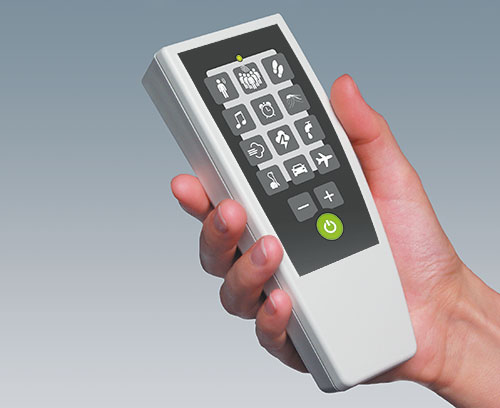

  • Svariate tipologie di telecomandi, senza fili o tramite cavo
  • Impiego in particolare in ambito ospedaliero e di istituti sociali, nelle abitazioni e nell'industria
  • Versioni
  • Accessori
  • Modifiche specifiche del cliente

Scegliete la versione e la misura o le misure desiderate oppure cliccate sul pulsante “Seleziona tutti i prodotti” alla fine della lista dei prodotti.

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista
A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Chiudi

A9100001

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9164001 Key ring

A9164001

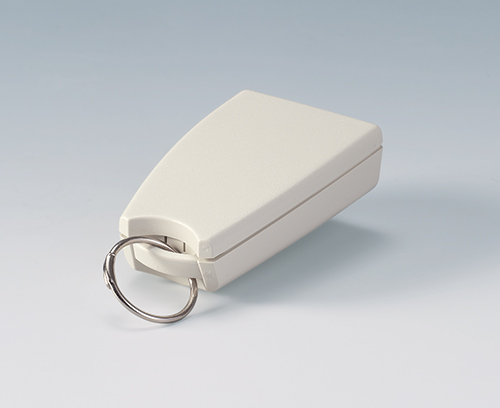

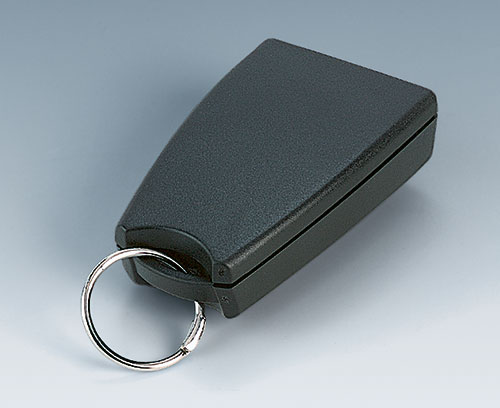

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Chiudi

A9164001

Key ring
Prodotto aggiunto alla lista
Steel
nickel-plated
20,5mm
A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Chiudi

A9166001

Set of battery clips, 2 x AAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Chiudi

A9166002

Battery contact, 2 x AAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Chiudi

A9166003

Battery holder, 2 x AAA
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005
A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Chiudi

A9166004

Set of pull-relief
Prodotto aggiunto alla lista
PA 6
volcano
A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9166005

Adhesive foil M
Prodotto aggiunto alla lista
A9166037 Station M

A9166037

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9166037

Station M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9166039 Station M

A9166039

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9166039

Station M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9166307 Holder M

A9166307

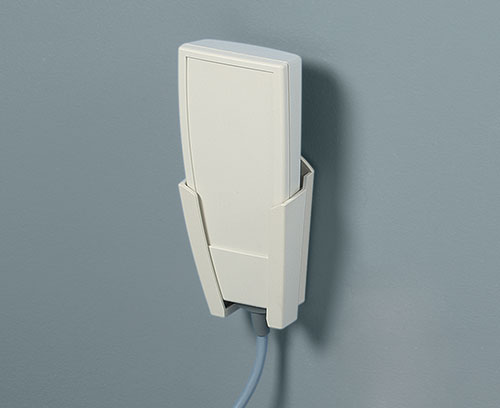

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Chiudi

A9166307

Holder M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9166309 Holder M

A9166309

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Chiudi

A9166309

Holder M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9167002 Sealing L

A9167002

Sealing L Application: for a higher protection class. For versions II - V.

Supply 1 Sealing kit

Chiudi

A9167002

Sealing L
Prodotto aggiunto alla lista
A9167005 Adhesive foil L

A9167005

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9167005

Adhesive foil L
Prodotto aggiunto alla lista
A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Chiudi

A9167017

Belt/pocket clip
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Chiudi

A9167019

Belt/pocket clip
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005

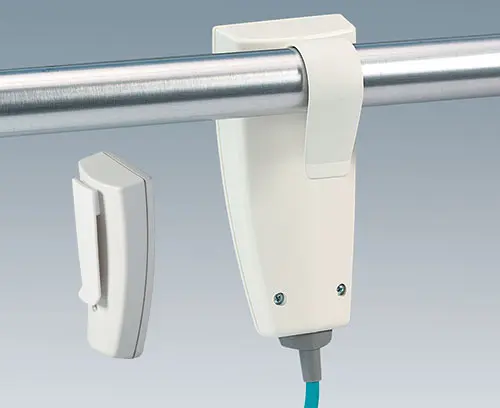

A9167027 Holding clamp

A9167027

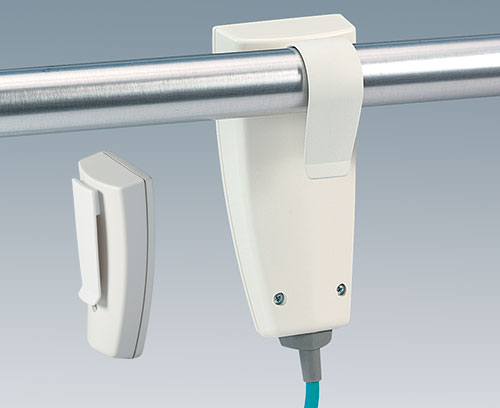

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167027

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167029

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005
A9167037 Station L

A9167037

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9167037

Station L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9167039 Station L

A9167039

Station L Attractive and practical station for holding your SMART CASE L with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9167039

Station L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9167307 Holder L

A9167307

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Chiudi

A9167307

Holder L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9167309 Holder L

A9167309

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Chiudi

A9167309

Holder L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9168002 Sealing XL

A9168002

Sealing XL Application: For a higher protection class. For the versions II - V.

Supply 1 sealing

Chiudi

A9168002

Sealing XL
Prodotto aggiunto alla lista
A9168005 Adhesive foil XL

A9168005

Adhesive foil XL For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9168005

Adhesive foil XL
Prodotto aggiunto alla lista
A9168037 Station XL

A9168037

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9168037

Station XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9168039 Station XL

A9168039

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9168039

Station XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9168307 Holder XL

A9168307

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Chiudi

A9168307

Holder XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9168309 Holder XL

A9168309

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Chiudi

A9168309

Holder XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Chiudi

A9190002

Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9190003 Set of battery clips, 2xN/2xAA/2xAAA

A9190003

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Chiudi

A9190003

Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
nickel-plated

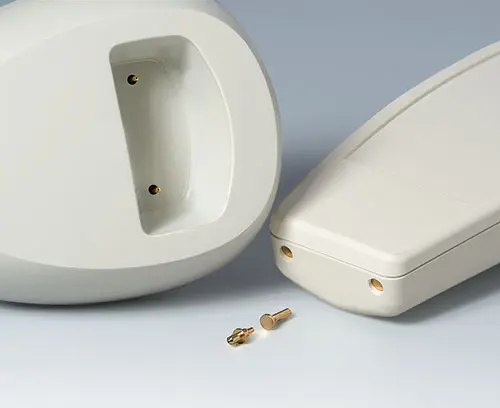

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Chiudi

A9193030

Contact pin
Prodotto aggiunto alla lista
gold-plated
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Chiudi

A9193032

Spring contact
Prodotto aggiunto alla lista
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Chiudi

B9100063

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
860mm

Opzioni prodotto per Smart-Case

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
