A9166309 Holder M

A9166309

Holder M

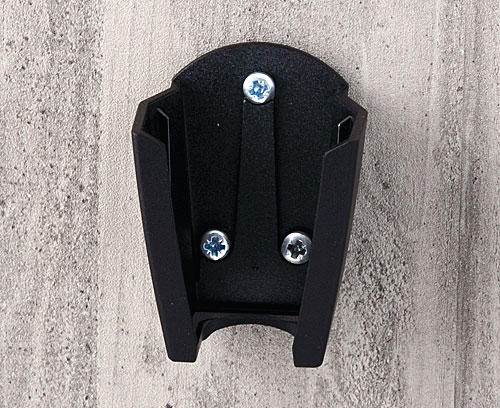

Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply

1 holder

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A9066109 SMART-CASE M, Vers. I

A9066109

SMART-CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Chiudi

A9066109

SMART-CASE M, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066119 SMART-CASE M, Vers. II

A9066119

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Chiudi

A9066119

SMART-CASE M, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066129 SMART-CASE M, Vers. III

A9066129

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9066129

SMART-CASE M, Vers. III
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066139 SMART-CASE M, Vers. IV

A9066139

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9066139

SMART-CASE M, Vers. IV
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066149 SMART-CASE M, Vers. V

A9066149

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9066149

SMART-CASE M, Vers. V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066209 SMART CASE M, Vers. I

A9066209

SMART CASE M, Vers. I Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top without recessed operating area

Supply Base and top part, 1 screw

Chiudi

A9066209

SMART CASE M, Vers. I
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066219 SMART-CASE M, Vers. II

A9066219

SMART-CASE M, Vers. II Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light. Integrated supports for two 1,5 V micro cells (AAA).

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Chiudi

A9066219

SMART-CASE M, Vers. II
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066319 SMART-CASE M, Vers. VI

A9066319

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Chiudi

A9066319

SMART-CASE M, Vers. VI
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066329 SMART-CASE M, Vers. III

A9066329

SMART-CASE M, Vers. III Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (5 - 5.9 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9066329

SMART-CASE M, Vers. III
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066339 SMART-CASE M, Vers. IV

A9066339

SMART-CASE M, Vers. IV Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (4.2 - 5.0 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9066339

SMART-CASE M, Vers. IV
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066349 SMART-CASE M, Vers. V

A9066349

SMART-CASE M, Vers. V Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply Case-top and base, cable strain, assembly kit

Chiudi

A9066349

SMART-CASE M, Vers. V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40
A9066419 SMART-CASE M, Vers. VI

A9066419

SMART-CASE M, Vers. VI Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version Case-top with recessed operating area

Supply Base and top part, 1 screw

Chiudi

A9066419

SMART-CASE M, Vers. VI
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x47x24mm
IP 40

Accessory

A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9166005

Adhesive foil M
Prodotto aggiunto alla lista

Customising options for A9166309

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.046 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
14 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
