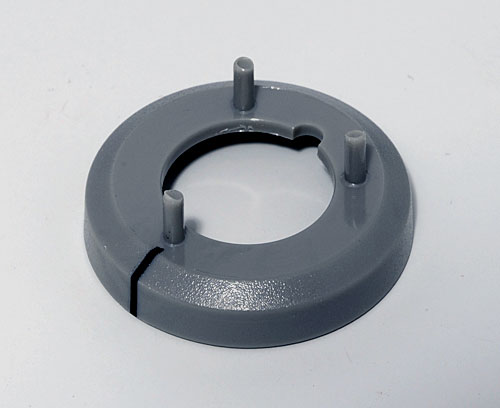

A7516018 Nut cover 16, with line

A7516018

Nut cover 16, with line

Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version

Black marking.

Supply

1 nut cover

  • Usato per
A2516040 ROUND KNOB 16, without line

A2516040

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 round knob

Chiudi

A2516040

ROUND KNOB 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 4mm
A2516060 ROUND KNOB 16, without line

A2516060

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2516060

ROUND KNOB 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 6mm
A2516068 ROUND KNOB 16, without line

A2516068

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2516068

ROUND KNOB 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
Foro assiale 6mm
A2516630 ROUND KNOB 16, without line

A2516630

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2516630

ROUND KNOB 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 1/4″
A2516638 ROUND KNOB 16, without line

A2516638

ROUND KNOB 16, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2516638

ROUND KNOB 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
Foro assiale 1/4″
A2616040 ROUND KNOB 16, with line

A2616040

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 round knob

Chiudi

A2616040

ROUND KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 4mm
A2616060 ROUND KNOB 16, with line

A2616060

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2616060

ROUND KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 6mm
A2616068 ROUND KNOB 16, with line

A2616068

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2616068

ROUND KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
16x15mm
Foro assiale 6mm
A2616630 ROUND KNOB 16, with line

A2616630

ROUND KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Chiudi

A2616630

ROUND KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 1/4″
A2816060 WING KNOB 16, with line

A2816060

WING KNOB 16, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 wing knob

Chiudi

A2816060

WING KNOB 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
16x15mm
Foro assiale 6mm
A3116048 COM-KNOBS 16, without recess

A3116048

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3116048

COM-KNOBS 16, without recess
Prodotto aggiunto alla lista
PA 6
volcano
16x16mm
Foro assiale 4mm
A3116049 COM-KNOBS 16, without recess

A3116049

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 0.6 Nm, function = 0.5 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3116049

COM-KNOBS 16, without recess
Prodotto aggiunto alla lista
PA 6
nero
16x16mm
Foro assiale 4mm
A3116068 COM-KNOBS 16, without recess

A3116068

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3116068

COM-KNOBS 16, without recess
Prodotto aggiunto alla lista
PA 6
volcano
16x16mm
Foro assiale 6mm
A3116069 COM-KNOBS 16, without recess

A3116069

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3116069

COM-KNOBS 16, without recess
Prodotto aggiunto alla lista
PA 6
nero
16x16mm
Foro assiale 6mm
A3116638 COM-KNOBS 16, without recess

A3116638

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3116638

COM-KNOBS 16, without recess
Prodotto aggiunto alla lista
PA 6
volcano
16x16mm
Foro assiale 1/4″
A3116639 COM-KNOBS 16, without recess

A3116639

COM-KNOBS 16, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole with chamfer.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3116639

COM-KNOBS 16, without recess
Prodotto aggiunto alla lista
PA 6
nero
16x16mm
Foro assiale 1/4″
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
dusty grey RAL 7037
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0,3 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
