A2616060 ROUND KNOB 16, with line

A2616060

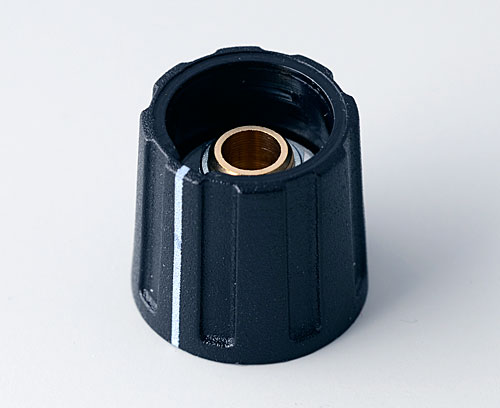

ROUND KNOB 16, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply

1 round knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A4116000 Cover 16, without line

A4116000

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover
