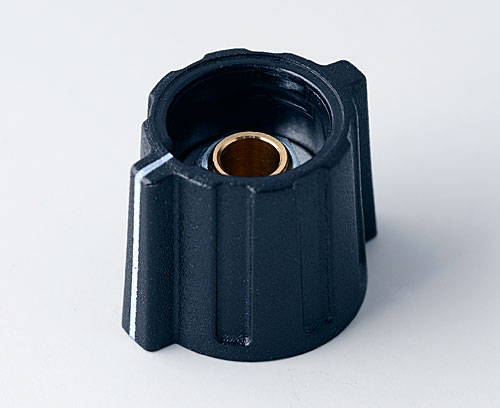

A2816060 WING KNOB 16, with line

A2816060

WING KNOB 16, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply

1 wing knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A4116000 Cover 16, without line

A4116000

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116000

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4116002 Cover 16, without line

A4116002

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116002

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4116004 Cover 16, without line

A4116004

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116004

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
yellow RAL F12/0-1
A4116005 Cover 16, without line

A4116005

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116005

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green RAL F12/0-43
A4116006 Cover 16, without line

A4116006

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116006

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4116007 Cover 16, without line

A4116007

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116007

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4116008 Cover 16, without line

A4116008

Cover 16, without line Suitable for round and wing knob 16. Cover simply to pin up.

Supply 1 cover

Chiudi

A4116008

Cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4116100 Cover 16, with line

A4116100

Cover 16, with line Suitable for round and wing knob 16. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A4116100

Cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4116102 Cover 16, with line

A4116102

Cover 16, with line Suitable for round and wing knob 16. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4116102

Cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4116106 Cover 16, with line

A4116106

Cover 16, with line Suitable for round and wing knob 16. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4116106

Cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4116107 Cover 16, with line

A4116107

Cover 16, with line Suitable for round and wing knob 16. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4116107

Cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4116108 Cover 16, with line

A4116108

Cover 16, with line Suitable for round and wing knob 16. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4116108

Cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista
A7516000 Nut cover 16, without line

A7516000

Nut cover 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Supply 1 nut cover

Chiudi

A7516000

Nut cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7516010 Nut cover 16, with line

A7516010

Nut cover 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version White marking.

Supply 1 nut cover

Chiudi

A7516010

Nut cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7516018 Nut cover 16, with line

A7516018

Nut cover 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Nut cover simply to pin up.

Version Black marking.

Supply 1 nut cover

Chiudi

A7516018

Nut cover 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A7616000 Nut cover 16, without line

A7616000

Nut cover 16, without line Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.

Supply 1 nut cover

Chiudi

A7616000

Nut cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7616008 Nut cover 16, without line

A7616008

Nut cover 16, without line Suitable for round and wing knobs 16 / COM-KNOB 16. Nut cover with arrow simply to pin up.

Supply 1 nut cover

Chiudi

A7616008

Nut cover 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory

A7316000 Disk 16, without line

A7316000

Disk 16, without line Suitable for round and wing knob 16 / COM-KNOB 16. Disk simply to pin up.

Supply 1 disk

Chiudi

A7316000

Disk 16, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7316010 Disk 16, with line

A7316010

Disk 16, with line Suitable for round and wing knob 16 / COM-KNOB 16. Disk simply to pin up. White marking.

Supply 1 disk

Chiudi

A7316010

Disk 16, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A2816060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
16 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 715 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
5,6 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
