A9053117 SOFT-CASE XL

A9053117

SOFT-CASE XL

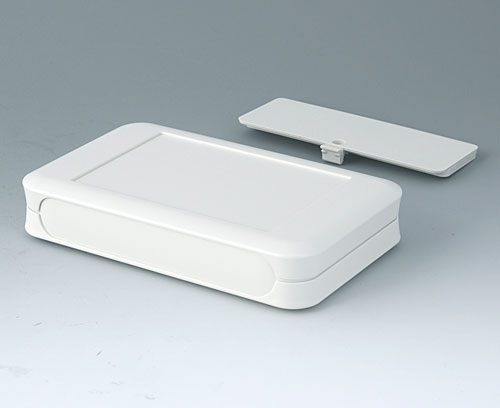

Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version

With battery compartment for 4 x AA, accessible from the outside

Supply

Top and bottom part, battery compartment lid, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "intermediate ring"

A9153011 Intermediate ring XL

A9153011

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153011

Intermediate ring XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed
96x154x26mm
A9153017 Intermediate ring XL

A9153017

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153017

Intermediate ring XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
96x154x26mm
A9153018 Intermediate ring XL

A9153018

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153018

Intermediate ring XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
96x154x26mm
A9153118 Intermediate ring XL

A9153118

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153118

Intermediate ring XL
Prodotto aggiunto alla lista
SEBS (TPE)
volcano
96x154x26mm
A9153219 Intermediate ring XL

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153219

Intermediate ring XL
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x154x26mm

Accessory "battery"

A9152010 Set of battery clips, 2/4 x AA

A9152010

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Chiudi

A9152010

Set of battery clips, 2/4 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated

Accessory "wall/holder"

A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Chiudi

A9152047

Combi-Clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x27mm

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Chiudi

A9152047

Combi-Clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x27mm

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9152057

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002

Customising options for A9053117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
92 mm
Width
150 mm
Height
28 mm
PCB length, base
30 mm
PCB width, base
140 mm
PCB length, top
82 mm
PCB width, top
140 mm
Keypad length
67,15 mm
Keypad width
101,05 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.196 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
117 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
