SOFT-CASE

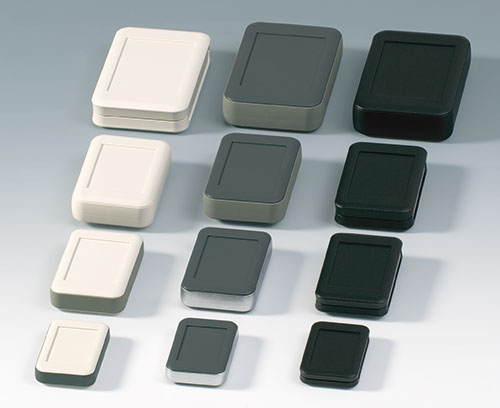

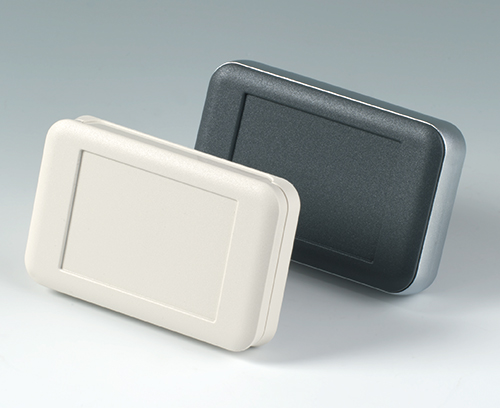

Soft-Case

Contenitori per applicazioni mobili in formato grande

I contenitori SOFT-CASE convincono l’utilizzatore perché per design e tecnica rispondono alle sue esigenze attuali.

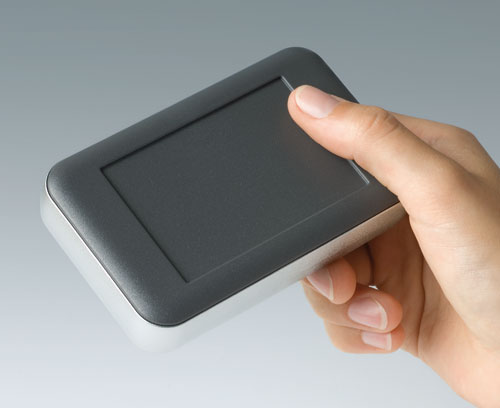

  • Formati maneggevoli con forme morbide e arrotondate gradevoli al tatto
  • Il singolare "orientamento in larghezza" permette di installare display grandi in uno spazio ridotto, aiutando l’utilizzatore sia nella lettura delle indicazioni che nelle operazioni di comando

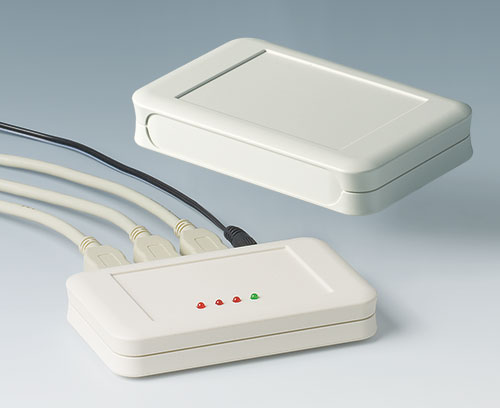

  • Ampio spazio per le interfacce sul lato lungo per una maggiore flessibilità

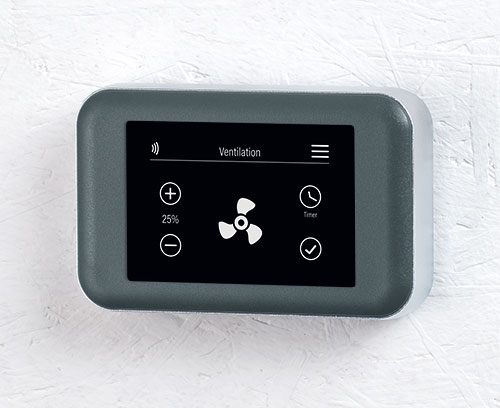

  • Impiego universale come contenitore per applicazioni mobili, a scrivania e a muro

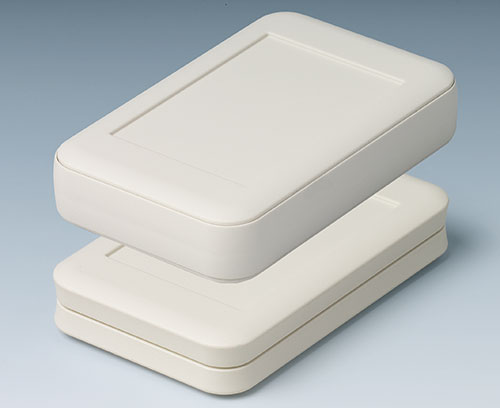

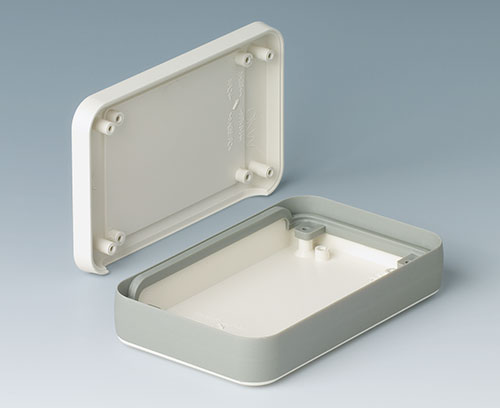

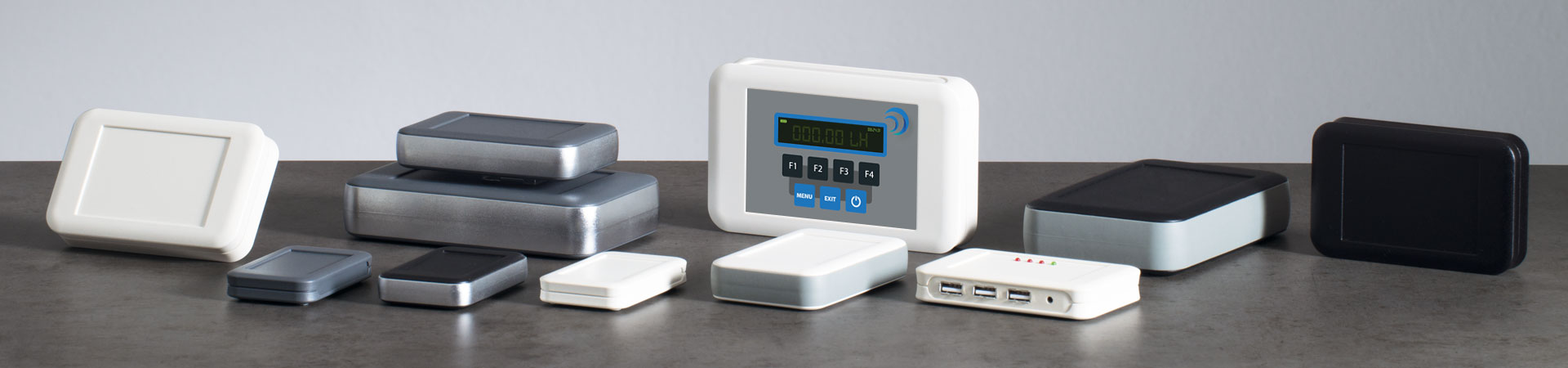

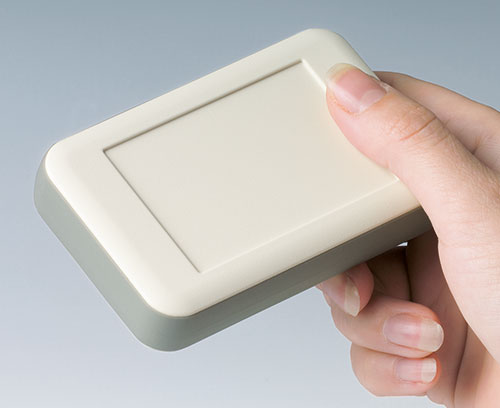

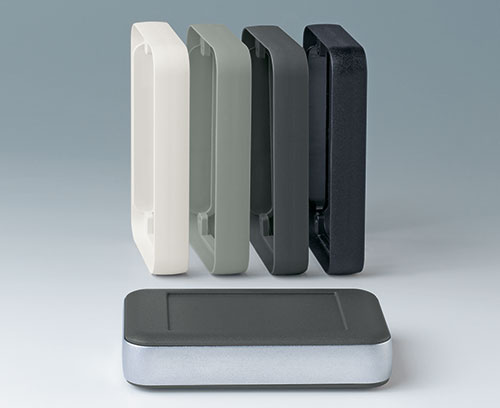

  • 4 misure, in opzione con anello intermedio per maggiore altezza di montaggio nelle diverse versioni: ABS nel colore del contenitore o cromato, materiale TPE
  • Possibilità di grado di protezione IP 54 in collegamento con l’anello intermedio in TPE (versioni di contenitori senza vano batteria in ABS o PMMA)

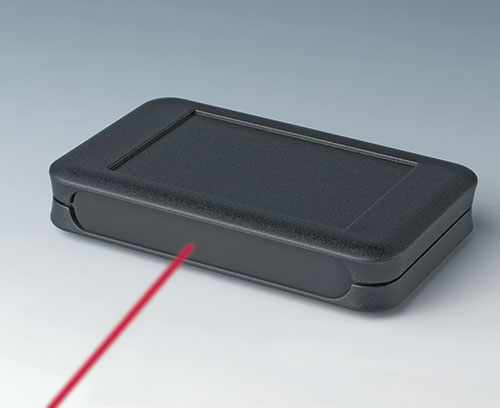

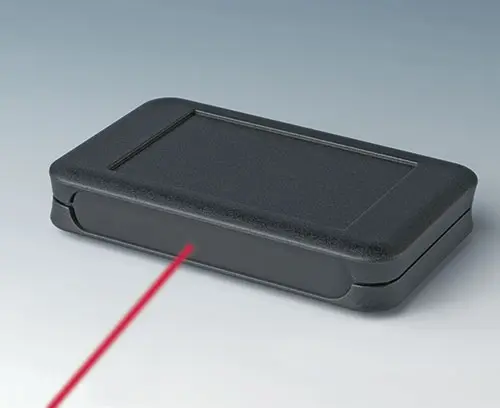

  • 2 materiali: ABS (UL 94 HB) o PMMA trasparente ai raggi infrarossi (UL 94 HB)

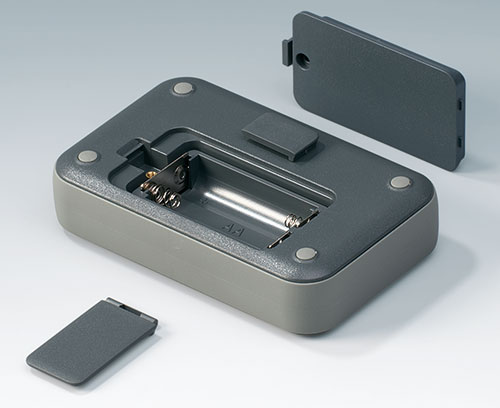

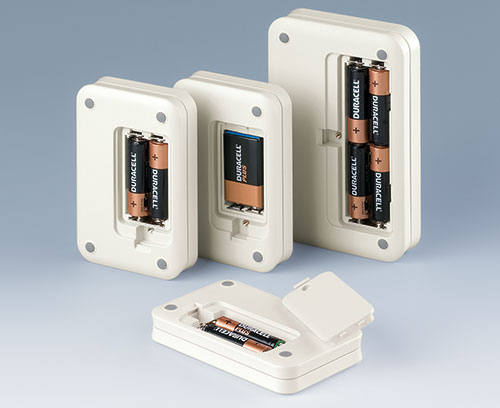

  • Con/senza vano batteria per 2 batterie AAA, 2 batterie AA, 4 batterie AA o 1 batteria da 9 V; coperchio del vano batteria con arresto a scatto, se necessario vite di bloccaggio

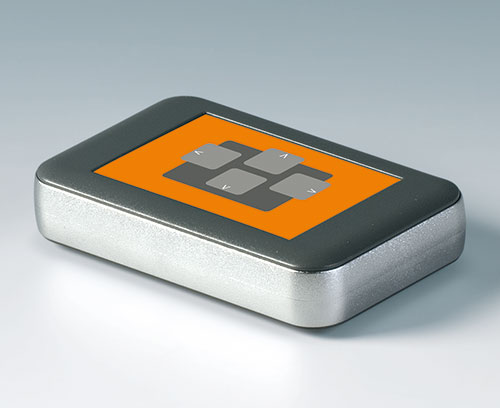

  • Superficie di comando incavata a protezione della tastiera a membrana/pellicola decorativa

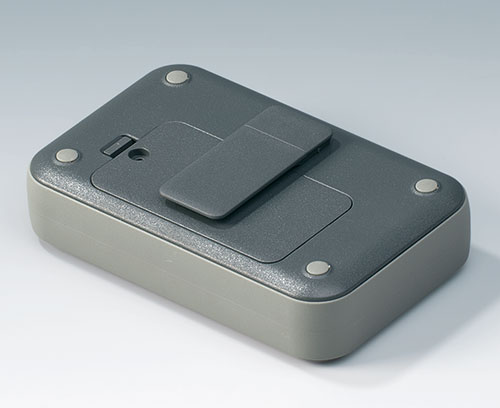

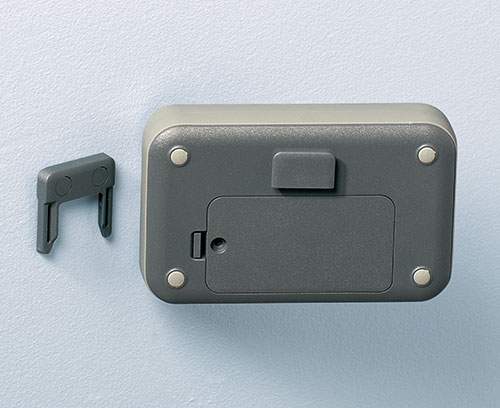

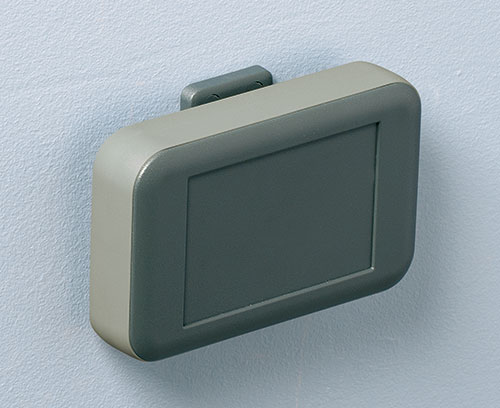

  • La clip combinata funge da clip da cintura e/o supporto da parete (accessorio)

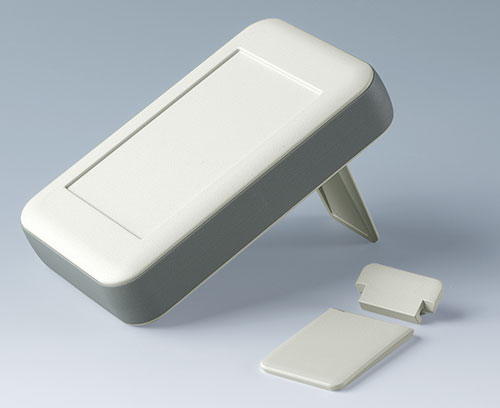

  • Supporto inclinato, pratico per le operazioni di comando
  • Punti di fissaggio ovvero base di fissaggio per schede e componenti di montaggio

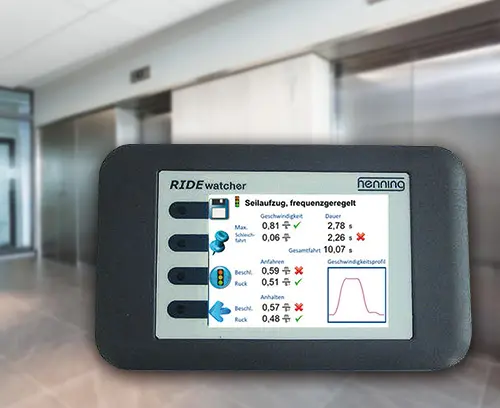

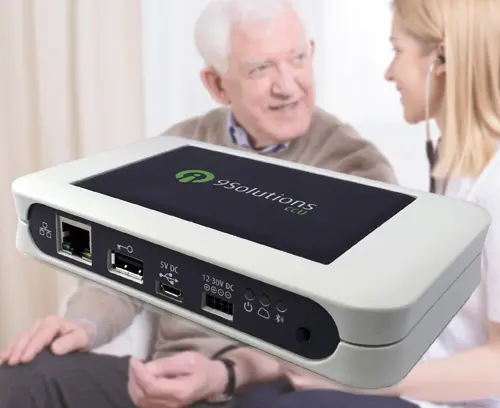

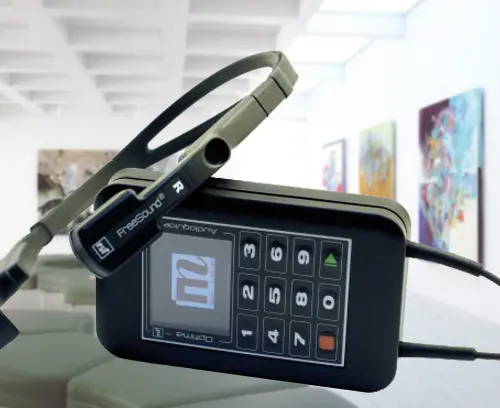

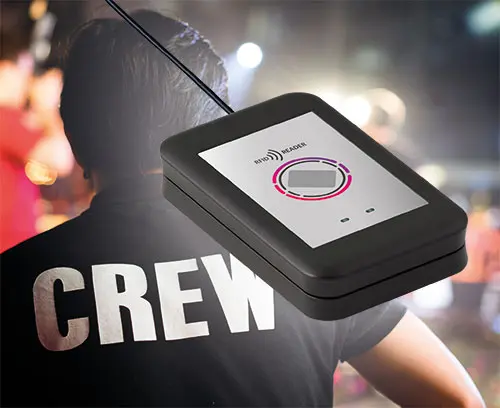

  • Esempi di applicazione

Application fields

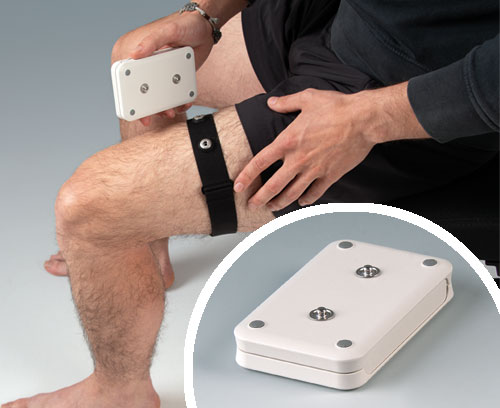

  • Diverse tipologie di comandi a distanza, senza fili o tramite cavo
  • Metrologia e tecnica di regolazione
  • Tecnica di comando digitale
  • Tecnica medicale e di laboratorio
  • Periferiche e dispositivi interfaccia
  • Tecnica di comunicazione
  • IoT/IIoT
  • Versioni
  • Accessori
  • Modifiche specifiche del cliente

Scegliete la versione e la misura o le misure desiderate oppure cliccate sul pulsante “Seleziona tutti i prodotti” alla fine della lista dei prodotti.

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista

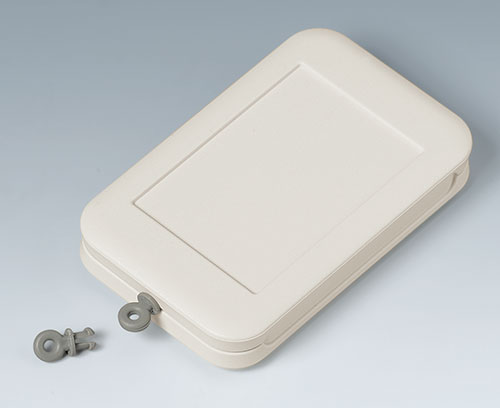

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Chiudi

A9100001

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano

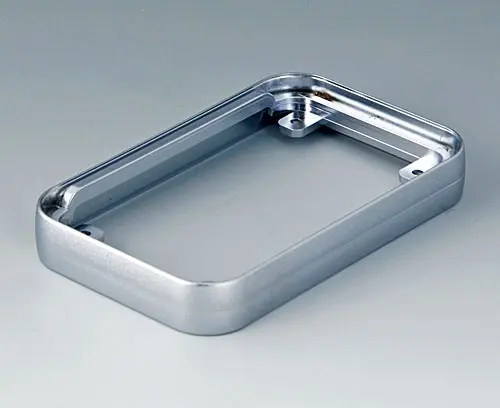

A9150011 Intermediate ring S

A9150011

Intermediate ring S Sophisticated feature in metallic finish (RoHS compliant). 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Chiudi

A9150011

Intermediate ring S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed
54x85x12mm

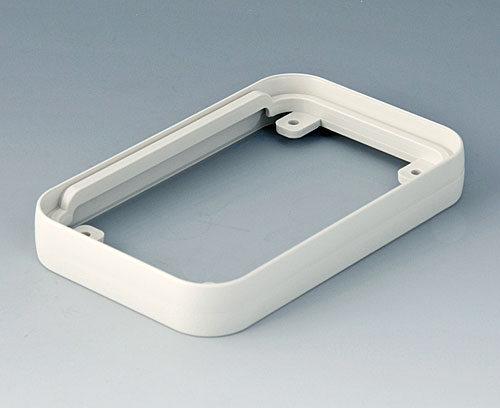

A9150017 Intermediate ring S

A9150017

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9150017

Intermediate ring S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
54x85x12mm

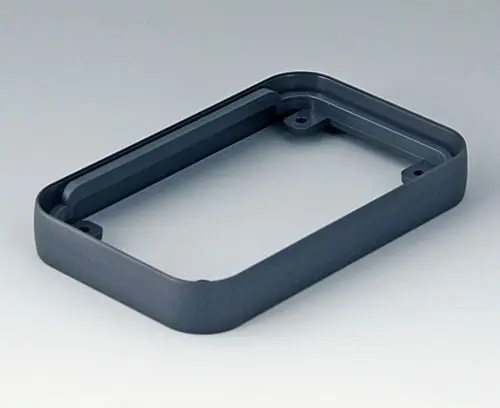

A9150018 Intermediate ring S

A9150018

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9150018

Intermediate ring S
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
54x85x12mm

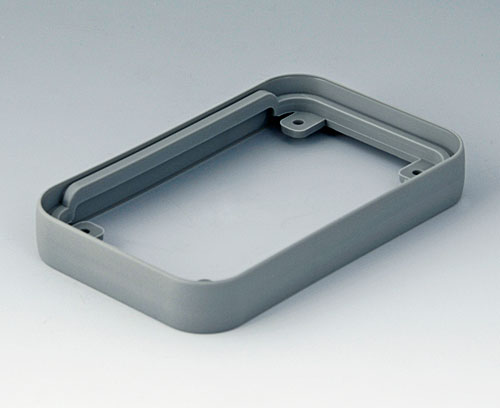

A9150118 Intermediate protection ring S

A9150118

Intermediate protection ring S Serves as a sealing ring and impact protection and ensures 2 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9150118

Intermediate protection ring S
Prodotto aggiunto alla lista
SEBS (TPE)
volcano
54x85x12mm

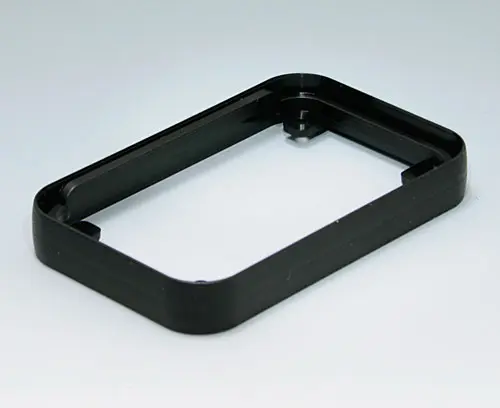

A9150219 Intermediate ring S

A9150219

Intermediate ring S For 2 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Chiudi

A9150219

Intermediate ring S
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
54x85x12mm

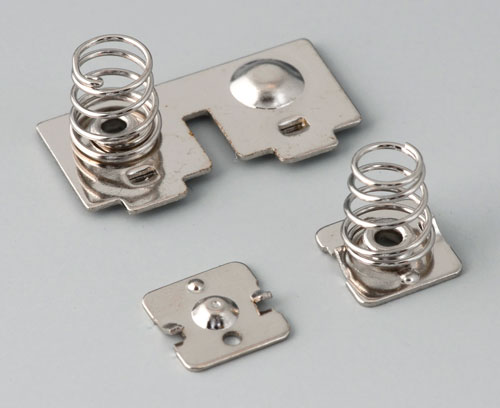

A9151010 Set of battery clips, 2 x AAA

A9151010

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Chiudi

A9151010

Set of battery clips, 2 x AAA
Prodotto aggiunto alla lista
Steel
nickel-plated

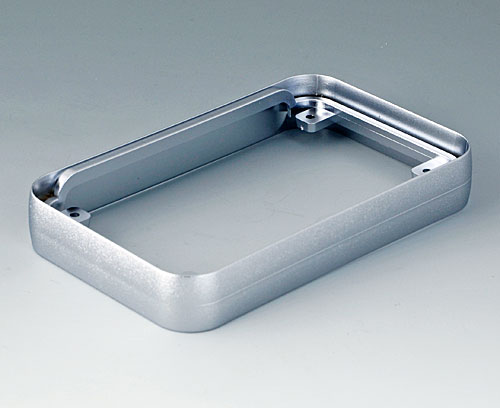

A9151011 Intermediate ring M

A9151011

Intermediate ring M Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Chiudi

A9151011

Intermediate ring M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed
68x108x16mm

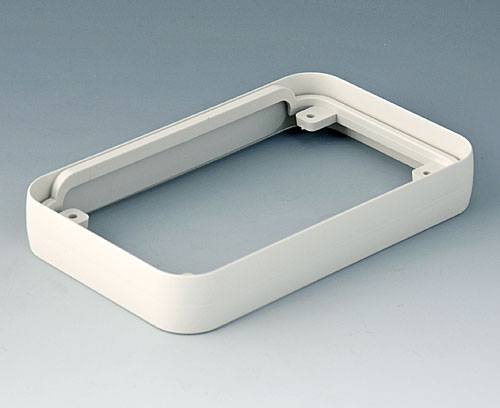

A9151017 Intermediate ring M

A9151017

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9151017

Intermediate ring M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
68x108x16mm

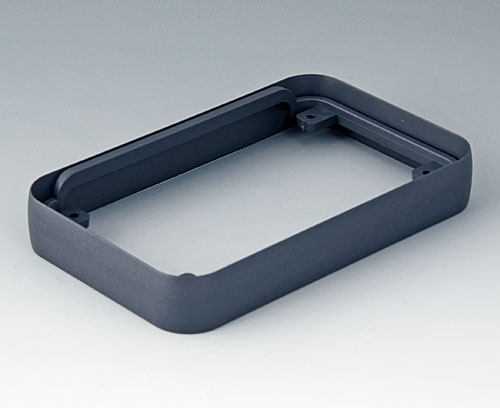

A9151018 Intermediate ring M

A9151018

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9151018

Intermediate ring M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
68x108x16mm

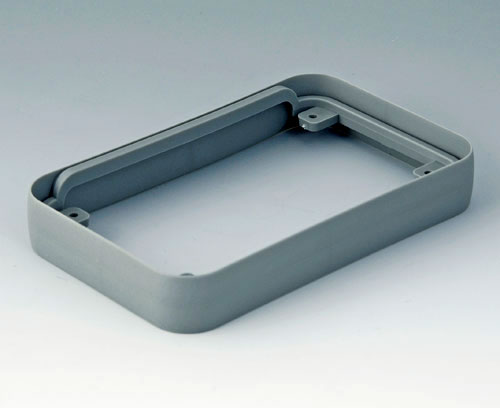

A9151118 Intermediate protection ring M

A9151118

Intermediate protection ring M Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9151118

Intermediate protection ring M
Prodotto aggiunto alla lista
SEBS (TPE)
volcano
68x108x16mm
A9151219 Intermediate ring M

A9151219

Intermediate ring M For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Chiudi

A9151219

Intermediate ring M
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
68x108x16mm
A9152010 Set of battery clips, 2/4 x AA

A9152010

Set of battery clips, 2/4 x AA For contacting the batteries.

Supply 1 double contact, 2 single contacts

Chiudi

A9152010

Set of battery clips, 2/4 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated

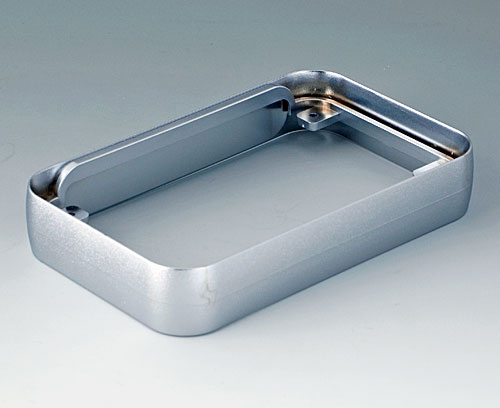

A9152011 Intermediate ring L

A9152011

Intermediate ring L Sophisticated feature in metallic finish (RoHS compliant). 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring

Chiudi

A9152011

Intermediate ring L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed
76x120x21mm
A9152017 Intermediate ring L

A9152017

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9152017

Intermediate ring L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
76x120x21mm
A9152018 Intermediate ring L

A9152018

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9152018

Intermediate ring L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
76x120x21mm
A9152047 Combi-Clip

A9152047

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Chiudi

A9152047

Combi-Clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
45x27mm

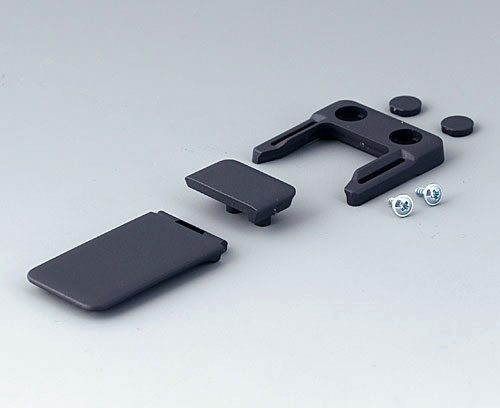

A9152048 Combi-Clip

A9152048

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Chiudi

A9152048

Combi-Clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
45x27mm

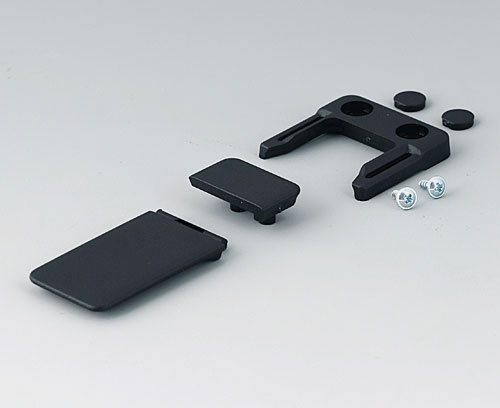

A9152049 Combi-Clip

A9152049

Combi-Clip Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 4.2 mm necessary.

Supply 1 set

Chiudi

A9152049

Combi-Clip
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
45x27mm
A9152057 Tilt foot bar

A9152057

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9152057

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9152058 Tilt foot bar

A9152058

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9152058

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
A9152059 Tilt foot bar

A9152059

Tilt foot bar Facilitates ergonomical reading angles, side lenght 40 mm. Assembly oriented towards the length or width (size S towards the length only). Two mounting holes diameter 4.2 mm necessary.

Supply 1 tilt foot bar, assembly kit

Chiudi

A9152059

Tilt foot bar
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9152118 Intermediate protection ring L

A9152118

Intermediate protection ring L Serves as a sealing ring and impact protection and ensures 3 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring

Chiudi

A9152118

Intermediate protection ring L
Prodotto aggiunto alla lista
SEBS (TPE)
volcano
76x120x21mm

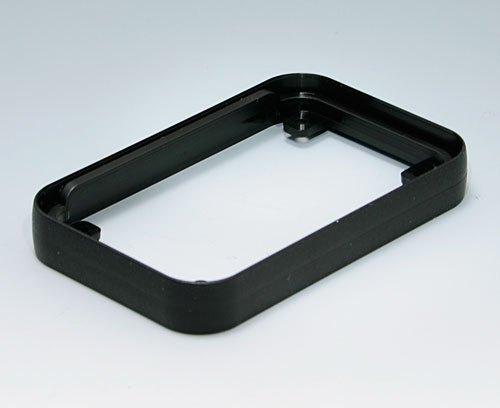

A9152219 Intermediate ring L

A9152219

Intermediate ring L For 3 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring

Chiudi

A9152219

Intermediate ring L
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
76x120x21mm

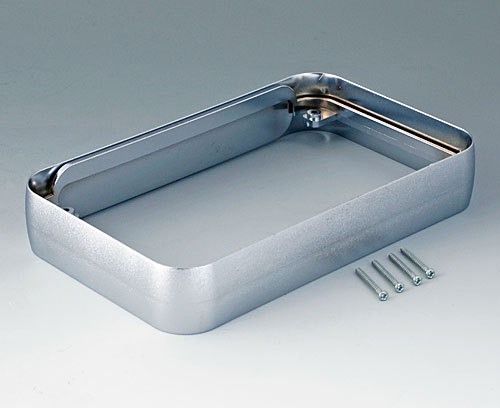

A9153011 Intermediate ring XL

A9153011

Intermediate ring XL Sophisticated feature in metallic finish (RoHS compliant). 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153011

Intermediate ring XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
matt chromed
96x154x26mm

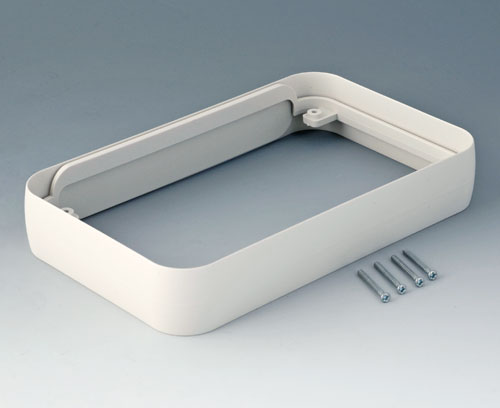

A9153017 Intermediate ring XL

A9153017

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153017

Intermediate ring XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
96x154x26mm

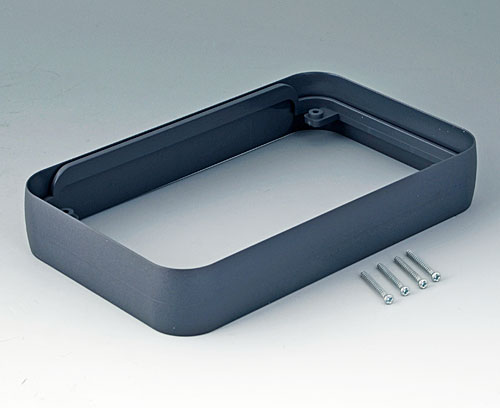

A9153018 Intermediate ring XL

A9153018

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153018

Intermediate ring XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
96x154x26mm
A9153118 Intermediate ring XL

A9153118

Intermediate ring XL Serves as a sealing ring and impact protection and ensures 5 mm more installation height. Individual colour choice and designs on demand.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153118

Intermediate ring XL
Prodotto aggiunto alla lista
SEBS (TPE)
volcano
96x154x26mm

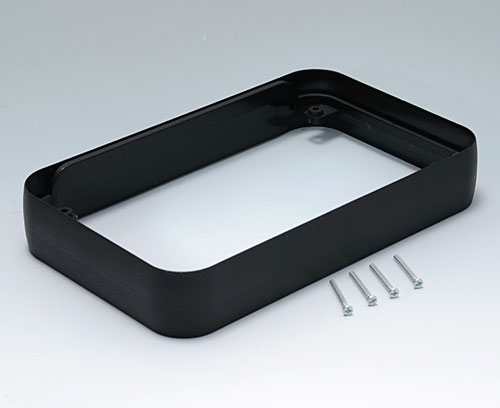

A9153219 Intermediate ring XL

A9153219

Intermediate ring XL For 5 mm additional installation height. Easy to handle: simply insert between bottom and top part and screw the case together. Note: IR function only possible with enclosure in PMMA.

Supply 1 intermediate ring, 1 assembly kit (for case assembly with intermediate ring)

Chiudi

A9153219

Intermediate ring XL
Prodotto aggiunto alla lista
PMMA (IR) (UL 94 HB)
black RAL 9005
96x154x26mm
A9174006 Set of battery clips, 1 x 9 V

A9174006

Set of battery clips, 1 x 9 V For contacting the battery.

Supply 2 single contacts

Chiudi

A9174006

Set of battery clips, 1 x 9 V
Prodotto aggiunto alla lista
Steel
tin-plated
B9106128 Strap eyelet

B9106128

Strap eyelet For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 35 mm high, 4 mm thick. Easy assembly.

Supply 1 strap eyelet, 2 screws

Chiudi

B9106128

Strap eyelet
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava

Opzioni prodotto per Soft-Case

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
