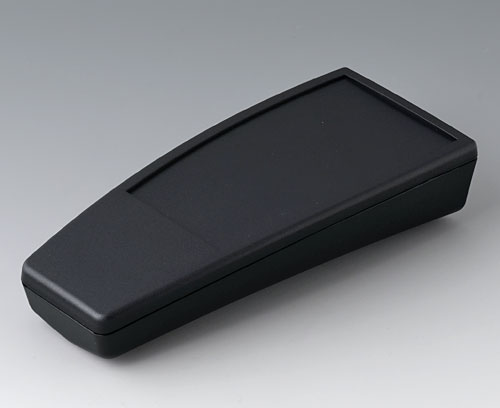

A9068119 SMART-CASE XL, Vers. II

A9068119

SMART-CASE XL, Vers. II

Two-part handheld case with screw connection without battery compartment. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment

Supply

Case-top and base, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "station"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Chiudi

A9166004

Set of pull-relief
Prodotto aggiunto alla lista
PA 6
volcano
A9168039 Station XL

A9168039

Station XL Attractive and practical station for holding your SMART CASE XL with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9168039

Station XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Chiudi

A9193032

Spring contact
Prodotto aggiunto alla lista

Accessory "protection"

A9168002 Sealing XL

A9168002

Sealing XL Application: For a higher protection class. For the versions II - V.

Supply 1 sealing

Chiudi

A9168002

Sealing XL
Prodotto aggiunto alla lista

Accessory "wall/holder"

A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167029

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005
A9168005 Adhesive foil XL

A9168005

Adhesive foil XL For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9168005

Adhesive foil XL
Prodotto aggiunto alla lista
A9168309 Holder XL

A9168309

Holder XL Special holder for SMART-CASE XL for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm.

Supply 1 holder

Chiudi

A9168309

Holder XL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9100002 Ring eyelet

A9100002

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 4 mm, location hole ø 5 mm required.

Supply 1 ring eyelet

Chiudi

A9100002

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Chiudi

A9167019

Belt/pocket clip
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Chiudi

A9193030

Contact pin
Prodotto aggiunto alla lista
gold-plated

Customising options for A9068119

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colore
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
168 mm
Width
74,4 mm
Height
35,4 mm
PCB length, base
127 mm
PCB width, base
61 mm
PCB length, top
132 mm
PCB width, top
61 mm
Keypad length
110,5 mm
Keypad width
61,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.253 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
94 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
