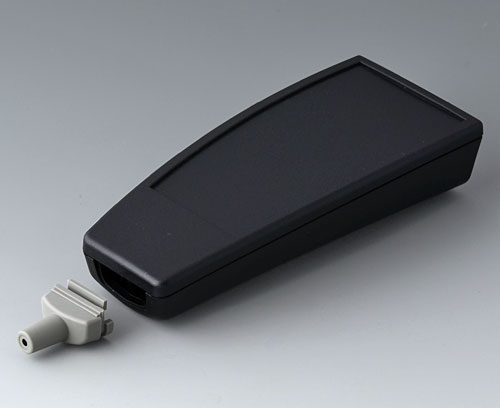

A9067149 SMART-CASE L, Vers. V

A9067149

SMART-CASE L, Vers. V

Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply

Case-top and base, cable strain, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Chiudi

A9166004

Set of pull-relief
Prodotto aggiunto alla lista
PA 6
volcano
A9167002 Sealing L

A9167002

Sealing L Application: for a higher protection class. For versions II - V.

Supply 1 Sealing kit

Chiudi

A9167002

Sealing L
Prodotto aggiunto alla lista

Accessory "wall/holder"

A9167005 Adhesive foil L

A9167005

Adhesive foil L For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9167005

Adhesive foil L
Prodotto aggiunto alla lista
A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167029

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005
A9167309 Holder L

A9167309

Holder L Special holder for SMART-CASE L for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE L with clip.

Supply 1 holder

Chiudi

A9167309

Holder L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Accessory "carrying"

A9167019 Belt/pocket clip

A9167019

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Chiudi

A9167019

Belt/pocket clip
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista

Customising options for A9067149

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Cable gland
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colore
Enclosure black RAL 9005,
Cable gland volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
140 mm
Width
62,7 mm
Height
30,5 mm
PCB length, base
89 mm
PCB width, base
51 mm
PCB length, top
117 mm
PCB width, top
51 mm
Keypad length
103,5 mm
Keypad width
51,2 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.573 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
65 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
