A9066147 SMART-CASE M, Vers. V

A9066147

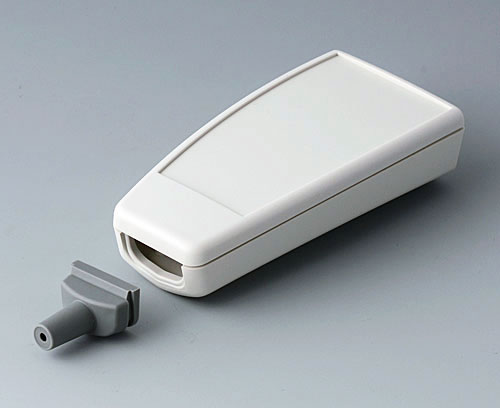

SMART-CASE M, Vers. V

Three-part handheld case with cable bush. Bush simply to plug-in, suitable for round cables. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version

Without battery compartment, bottom part with cable strain (3.4 - 4.2 mm)

Supply

Case-top and base, cable strain, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Chiudi

A9166004

Set of pull-relief
Prodotto aggiunto alla lista
PA 6
volcano

Accessory "wall/holder"

A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9166005

Adhesive foil M
Prodotto aggiunto alla lista
A9166307 Holder M

A9166307

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Chiudi

A9166307

Holder M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167027

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002

Accessory "carrying"

A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Chiudi

A9167017

Belt/pocket clip
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista

Customising options for A9066147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ABS (UL 94 HB)
Enclosure
SEBS (TPE)
Cable gland
Protection class
Colore
Enclosure off-white RAL 9002,
Cable gland volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
96 mm
Width
47 mm
Height
24 mm
PCB length, base
58 mm
PCB width, base
38 mm
PCB length, top
61 mm
PCB width, top
40 mm
Keypad length
74,6 mm
Keypad width
40,3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 803 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
38 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
