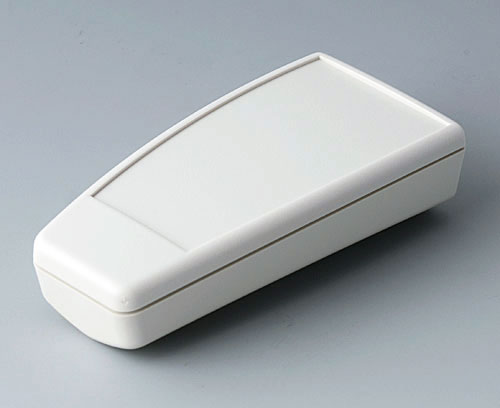

A9066117 SMART-CASE M, Vers. II

A9066117

SMART-CASE M, Vers. II

Ergonomic handheld case composed of two parts. Location at the front along with a screw in the center of the case. Possiblities for fixing PCBs in top and base part. Integrated supports for two 1,5 V micro cells (AAA).

Version

Case-top with recessed operating area

Supply

Base and top part, 1 screw

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9166001 Set of battery clips, 2 x AAA

A9166001

Set of battery clips, 2 x AAA For contacting the batteries.

Supply 4 single contacts

Chiudi

A9166001

Set of battery clips, 2 x AAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9166002 Battery contact, 2 x AAA

A9166002

Battery contact, 2 x AAA In combination with battery contacts A9166001 it's possible to have a bridge connection and therefore a serial connection.

Supply 1 battery contact

Chiudi

A9166002

Battery contact, 2 x AAA
Prodotto aggiunto alla lista
Steel
tin-plated
A9166003 Battery holder, 2 x AAA

A9166003

Battery holder, 2 x AAA The battery holder allows practically movement-free securing of the 2 x 1.5 V micro cells (AAA), thus ensuring that the internal power supply is securely located in position.

Supply 1 battery holder, 1 self-tapping screw

Chiudi

A9166003

Battery holder, 2 x AAA
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005

Accessory "station"

A9166004 Set of pull-relief

A9166004

Set of pull-relief For pull-relief of cable-connected applications. To be mounted onto the towers provided in the case or station.

Supply 2 preshaped pull-relief clamps, 2 self-tapping screws

Chiudi

A9166004

Set of pull-relief
Prodotto aggiunto alla lista
PA 6
volcano
A9166037 Station M

A9166037

Station M Attractive and practical station for holding your SMART CASE M with internal power supply. Contact is made with contact pins and spring contacts so that you can charge your batteries automatically (separate article, holes necessary, preformed centring facility provided). Pillars for PCB mounting, and strain relief to the rear.

Supply Bottom and top part, rubber feet, assembly kit

Chiudi

A9166037

Station M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9193032 Spring contact

A9193032

Spring contact Spring contact, round with ballpoint tip and collar for transmitting charging current. Drilled hole necessary, then self-locking. Further contact established by means of a soldered stranded wire on the fixed outer surface or PCB mounting. Load-carrying capacity up to 3 A. 1.5 mm stroke, 0,3 N. Extremely low contact resistance.

Supply 1 spring contact

Chiudi

A9193032

Spring contact
Prodotto aggiunto alla lista

Accessory "wall/holder"

A9166005 Adhesive foil M

A9166005

Adhesive foil M For self-adhesive mounting of the holder. Double-sided adhesive foil with foam carrier.

Supply 1 piece

Chiudi

A9166005

Adhesive foil M
Prodotto aggiunto alla lista
A9166307 Holder M

A9166307

Holder M Special holder for SMART-CASE M for safe storing of cable-connected or wireless remote controls. Fixing at the wall or other surfaces by commercial screws with head diameter 5.3 - 8.2 mm. The contour in the rear facilitates receiving also SMART-CASE M with clip.

Supply 1 holder

Chiudi

A9166307

Holder M
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167027

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002

Accessory "carrying"

A9100001 Ring eyelet

A9100001

Ring eyelet For universal use. For threading in hand straps and the like. Simple installation with locking hook. Inside ring diameter 2.5 mm, max. wall thickness 3 mm, location hole ø 4 mm required.

Supply 1 ring eyelet

Chiudi

A9100001

Ring eyelet
Prodotto aggiunto alla lista
PA 6
volcano
A9167017 Belt/pocket clip

A9167017

Belt/pocket clip Design: Special clip for SMART-CASE M, L and XL. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 Clip, assembly kit

Chiudi

A9167017

Belt/pocket clip
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002

Accessory "screws"

A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9193030 Contact pin

A9193030

Contact pin Contact pin, round with flat flange for transmitting charging current. Stepped bore necessary, then self-locking. Further contact established by means of a soldered stranded wire in the internal drilled hole. Load-carrying capacity up to 15 A. Extremely low contact resistance.

Supply 1 contact pin

Chiudi

A9193030

Contact pin
Prodotto aggiunto alla lista
gold-plated

Customising options for A9066117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
96 mm
Width
47 mm
Height
24 mm
PCB length, base
28 mm
PCB width, base
38 mm
PCB length, top
61 mm
PCB width, top
40 mm
Keypad length
74,6 mm
Keypad width
40,3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.102 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
30 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
