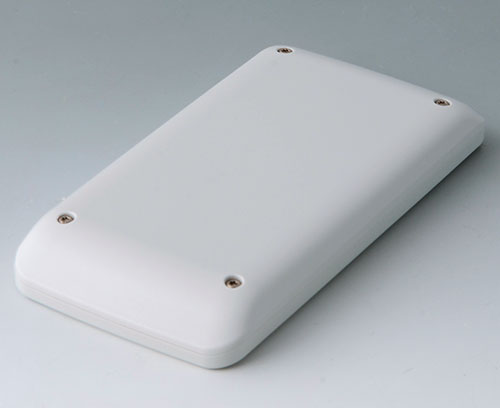

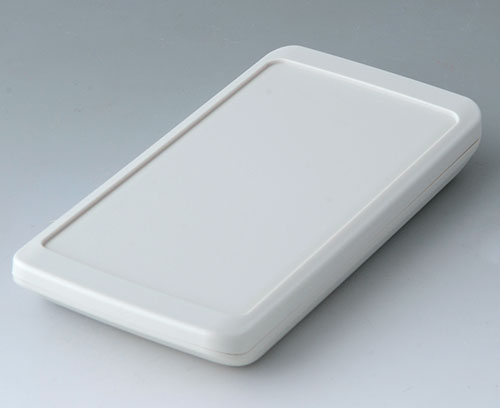

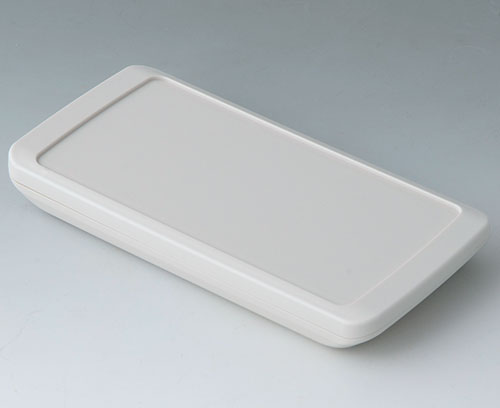

B5403307 SLIM-CASE M, Vers. III

B5403307

SLIM-CASE M, Vers. III

2-piece handheld enclosure, flat design, with a large operating panel of up to 4" (10 cm). The contours of the enclosure are rounded along the sides - comfortable to hold and easy to operate. Recessed operating panel for using a contoured transparent front screen (available as an accessory with adhesive film) or for protecting individual membrane keyboards. Fastening pillars for mounting PCBs in top and bottom parts. Seal for protection class IP 65 available as accessory.

Version

Operating panel recessed 1.6 mm

Supply

Top and bottom part, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "protection"

B5503039 Seal M

B5503039

Seal M To increase the protection class of SLIM-CASE M enclosures without TPE intermediate ring (versions I-III).

Supply 1 seal

Chiudi

B5503039

Seal M
Prodotto aggiunto alla lista
Silicone
black

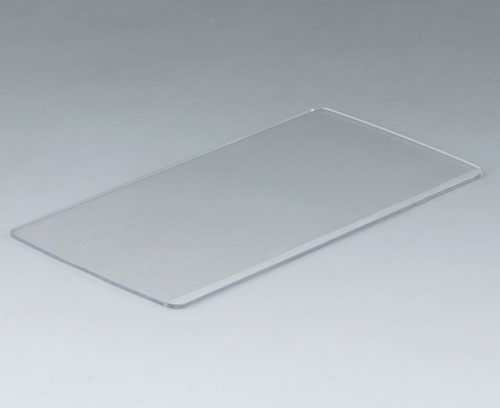

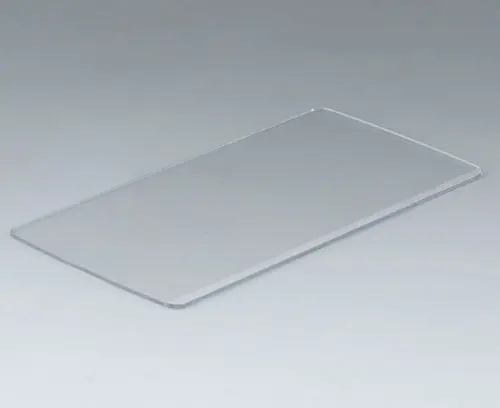

B5503201 Front screen M

B5503201

Front screen M The contoured transparent front screen (accessory) protects the displays underneath. It is rounded on the long edges to follow the ergonomic shape of the case. Suitable for SLIM-CASE M with operating panel recessed 1.6 mm (versions III and VI). Mounted with a double-sided adhesive film (accessories).
On request, supplied individually printed from behind to match your visible display as well as masking the adhesive film.

Supply 1 front screenm

Chiudi

B5503201

Front screen M
Prodotto aggiunto alla lista
PC
transparent
125,3x63,5x1,3mm

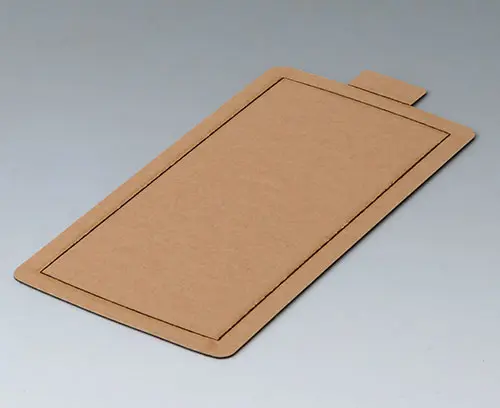

B5503300 Adhesive foil M

B5503300

Adhesive foil M For secure mounting of the front screen on the top part.

Supply 1 adhesive foil

Chiudi

B5503300

Adhesive foil M
Prodotto aggiunto alla lista

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Prodotto aggiunto alla lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T08

Torx T8 screwdriver
Prodotto aggiunto alla lista

Customising options for B5403307

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Esempi di applicazione
  • Purchasing Data
Protection class
IP 65 opt.
Necessary accessories: sealing, IP 40
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
148 mm
Width
74 mm
Height
19 mm
PCB length, base
126 mm
PCB width, base
64 mm
PCB length, top
130 mm
PCB width, top
64 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 470 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
63 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
