B5403117 SLIM-CASE M, Vers. IV

B5403117

SLIM-CASE M, Vers. IV

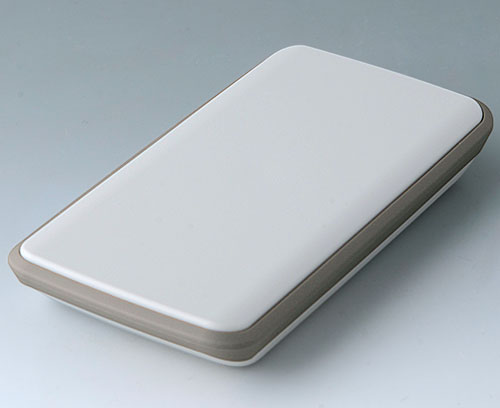

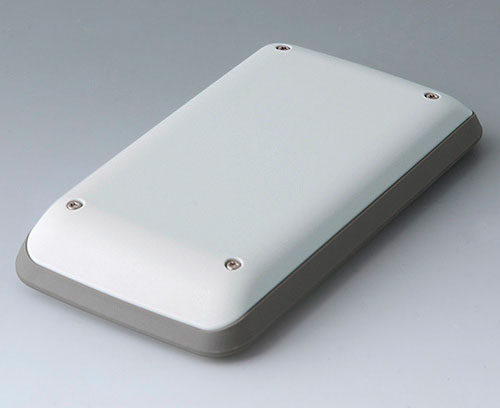

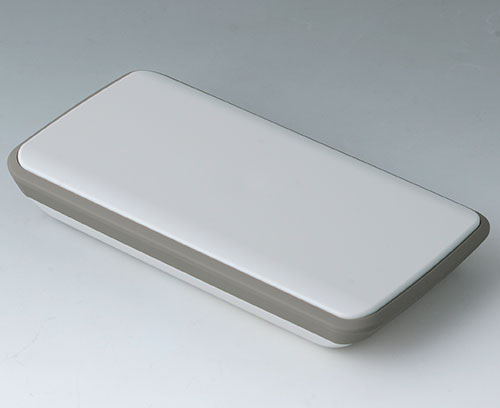

3-piece handheld enclosure with TPE intermediate ring, compact design, with a large operating panel of up to 4" (10 cm). Comfortable grip thanks to enclosure contours that are rounded along the sides and intermediate ring made of TPE, which also serves as impact protection and as a sealing ring for protection class IP 54. Flat operating panel for individual design and arrangement of operating and display elements of all kinds. Fastening pillars for mounting PCBs in top and bottom parts.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPE intermediate ring are not possible.

Version

With TPE intermediate ring and flat operating panel

Supply

Top and bottom part, TPE intermediate ring, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Prodotto aggiunto alla lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T08

Torx T8 screwdriver
Prodotto aggiunto alla lista

Customising options for B5403117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ASA+PC (UL 94 V-0)
Bottom and top part
SEBS (TPE)
Intermediate ring
Protection class
Colore
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
148 mm
Width
74 mm
Height
22 mm
PCB length, base
126 mm
PCB width, base
64 mm
PCB length, top
130 mm
PCB width, top
64 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 495 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
84 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
