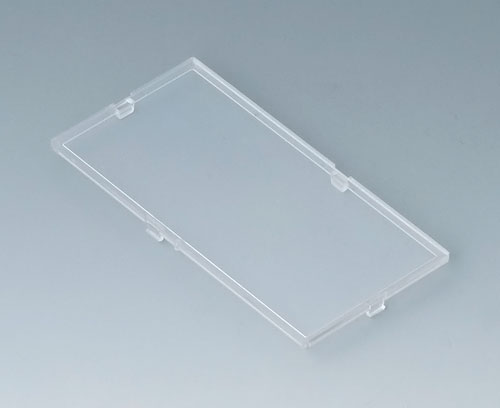

B6804200 Front panel, 5 modules

B6804200

Front panel, 5 modules

Snap-in.

Supply

1 front panel

  • Usato per
  • Modifiche specifiche del cliente
B6704100 RAILTEC C, 5 modules, Vers. I

B6704100

RAILTEC C, 5 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704100

RAILTEC C, 5 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704101 RAILTEC C, 5 modules, Vers. I

B6704101

RAILTEC C, 5 modules, Vers. I Enclosure with 1 side open for connection - for max. 1 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704101

RAILTEC C, 5 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704102 RAILTEC C, 5 modules, Vers. II

B6704102

RAILTEC C, 5 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704102

RAILTEC C, 5 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704103 RAILTEC C, 5 modules, Vers. II

B6704103

RAILTEC C, 5 modules, Vers. II Enclosure with 1 side open for connection - for max. 1 terminal guards accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with free through passage, with ventilations slots (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704103

RAILTEC C, 5 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704104 RAILTEC C, 5 modules, Vers. III

B6704104

RAILTEC C, 5 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704104

RAILTEC C, 5 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704105 RAILTEC C, 5 modules, Vers. III

B6704105

RAILTEC C, 5 modules, Vers. III Enclosure with 1 side open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704105

RAILTEC C, 5 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704106 RAILTEC C, 5 modules, Vers. IV

B6704106

RAILTEC C, 5 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704106

RAILTEC C, 5 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm
B6704107 RAILTEC C, 5 modules, Vers. IV

B6704107

RAILTEC C, 5 modules, Vers. IV Enclosure with 1 side open for connection - for max. terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 3 clips, 1 top part

Chiudi

B6704107

RAILTEC C, 5 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
88x90x58mm

Customising options for B6804200

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
transparent
Width
84 mm
Height
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
