B6704104 RAILTEC C, 5 modules, Vers. III

B6704104

RAILTEC C, 5 modules, Vers. III

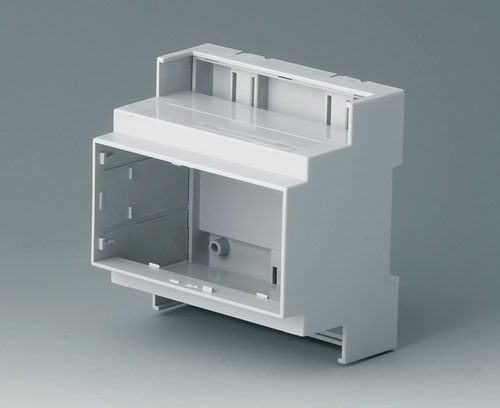

Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts.

Version

Front open*, connection side with extended case wall (*a ridge gives more stability during transport-easily removeable)

Supply

1 bottom part, 3 clips, 1 top part

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6603222 Plug header, block 5.08

B6603222

Plug header, block 5.08 Male terminal block, 5.08. 12-pin.

Supply 1 piece

Chiudi

B6603222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6603223 Plug header, block 5.08

B6603223

Plug header, block 5.08 Female terminal block, 5.08. 12-pin.

Supply 1 piece

Chiudi

B6603223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6605222 Plug header, block 5.08

B6605222

Plug header, block 5.08 Male terminal block, 5.08. 13-pin.

Supply 1 piece

Chiudi

B6605222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6605223 Plug header, block 5.08

B6605223

Plug header, block 5.08 Female terminal block, 5.08. 13-pin.

Supply 1 piece

Chiudi

B6605223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6607222 Plug header, block 5.08

B6607222

Plug header, block 5.08 Male terminal block, 5.08. 15-pin.

Supply 1 piece

Chiudi

B6607222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6607223 Plug header, block 5.08

B6607223

Plug header, block 5.08 Female terminal block, 5.08. 15-pin.

Supply 1 piece

Chiudi

B6607223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6804650 Terminal block, block 5.08

B6804650

Terminal block, block 5.08 PCB terminal block, 5.08. 15-pin.

Supply 1 piece

Chiudi

B6804650

Terminal block, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
light grey

Accessory

B6804100 Front panel, 5 modules

B6804100

Front panel, 5 modules Snap-in.

Supply 1 front panel

Chiudi

B6804100

Front panel, 5 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
84x42mm
B6804200 Front panel, 5 modules

B6804200

Front panel, 5 modules Snap-in.

Supply 1 front panel

Chiudi

B6804200

Front panel, 5 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
84x42mm

Customising options for B6704104

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
Bottom and top part light grey,
Locking clip black/translucent
Standards
Width
88 mm
Height
90 mm
Depth
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 424 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
62 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
