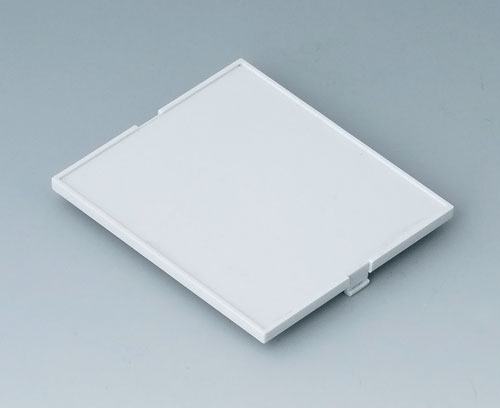

B6802100 Front panel, 3 modules

B6802100

Front panel, 3 modules

Snap-in.

Supply

1 front panel

  • Usato per
  • Modifiche specifiche del cliente
B6702100 RAILTEC C, 3 modules, Vers. I

B6702100

RAILTEC C, 3 modules, Vers. I Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702100

RAILTEC C, 3 modules, Vers. I
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6702102 RAILTEC C, 3 modules, Vers. II

B6702102

RAILTEC C, 3 modules, Vers. II Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, frame, front panel, front lid convex see accessories.

Version Front open, connection side with free through passage, with ventilations slots

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702102

RAILTEC C, 3 modules, Vers. II
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6702104 RAILTEC C, 3 modules, Vers. III

B6702104

RAILTEC C, 3 modules, Vers. III Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version Front open, connection side with extended case wall

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702104

RAILTEC C, 3 modules, Vers. III
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm
B6702106 RAILTEC C, 3 modules, Vers. IV

B6702106

RAILTEC C, 3 modules, Vers. IV Enclosure with 2 sides open for connection - for max. 2 terminal guards (accessories). Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Terminal guards, front panel see accessories.

Version Front closed, connection side with free through passage

Supply 1 bottom part, 2 clips, 1 top part

Chiudi

B6702106

RAILTEC C, 3 modules, Vers. IV
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
53x90x58mm

Customising options for B6802100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
light grey
Width
49 mm
Height
42 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
4 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
