B6702104 RAILTEC C, 3 modules, Vers. III

B6702104

RAILTEC C, 3 modules, Vers. III

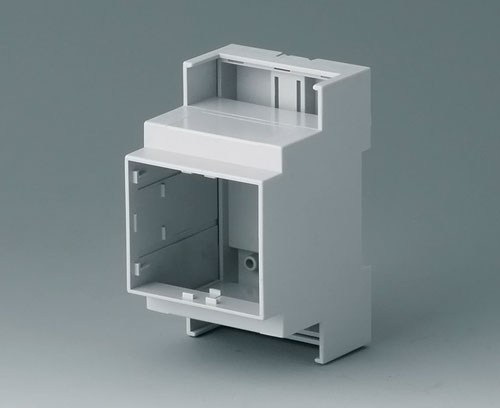

Enclosure with 2 sides open for connection. Fast and simple locking capability onto DIN EN 60715 (TH35). Bottom part with fastening pillars. Vertical and horizontal guides for assembling the PCBs. Easy assembly through snap-in installation of the case parts. Frame, front panel, front lid convex see accessories.

Version

Front open, connection side with extended case wall

Supply

1 bottom part, 2 clips, 1 top part

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "wall/holder"

B6811542 Adapter

B6811542

Adapter Suitable for DIN EN 60715 (TH35), EN 60715 (G32) and EN 60715 (TH15).

Supply 1 piece

Chiudi

B6811542

Adapter
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
green

Accessory "terminals"

B6601222 Plug header, block 5.08

B6601222

Plug header, block 5.08 Male terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6601223 Plug header, block 5.08

B6601223

Plug header, block 5.08 Female terminal block, 5.08. 5-pin.

Supply 1 piece

Chiudi

B6601223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602222 Plug header, block 5.08

B6602222

Plug header, block 5.08 Male terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6602223 Plug header, block 5.08

B6602223

Plug header, block 5.08 Female terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6602223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606222 Plug header, block 5.08

B6606222

Plug header, block 5.08 Male terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606222

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6606223 Plug header, block 5.08

B6606223

Plug header, block 5.08 Female terminal block, 5.08. 2-pin.

Supply 1 piece

Chiudi

B6606223

Plug header, block 5.08
Prodotto aggiunto alla lista
PA 6 (UL 94 V-0)
B6802650 Terminal block, block 5.08

B6802650

Terminal block, block 5.08 PCB terminal block, 5.08. 9-pin.

Supply 1 piece

Chiudi

B6802650

Terminal block, block 5.08
Prodotto aggiunto alla lista
PA 68 (UL 94 V-0)
light grey

Accessory

B6802100 Front panel, 3 modules

B6802100

Front panel, 3 modules Snap-in.

Supply 1 front panel

Chiudi

B6802100

Front panel, 3 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
light grey
49x42mm
B6802200 Front panel, 3 modules

B6802200

Front panel, 3 modules Snap-in.

Supply 1 front panel

Chiudi

B6802200

Front panel, 3 modules
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
49x42mm
