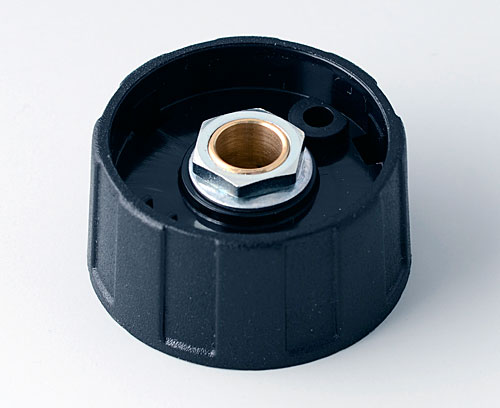

A2531630 ROUND KNOB 31, without line

A2531630

ROUND KNOB 31, without line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply

1 round knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A4131000 Cover 31, without line

A4131000

Cover 31, without line Suitable for round knobs 31. Cover simply to pin up.

Supply 1 cover

Chiudi

A4131000

Cover 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4131002 Cover 31, without line

A4131002

Cover 31, without line Suitable for round knobs 31. Cover simply to pin up.

Supply 1 cover

Chiudi

A4131002

Cover 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4131005 Cover 31, without line

A4131005

Cover 31, without line Suitable for round knobs 31. Cover simply to pin up.

Supply 1 cover

Chiudi

A4131005

Cover 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green RAL F12/0-43
A4131006 Cover 31, without line

A4131006

Cover 31, without line Suitable for round knobs 31. Cover simply to pin up.

Supply 1 cover

Chiudi

A4131006

Cover 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4131007 Cover 31, without line

A4131007

Cover 31, without line Suitable for round knobs 31. Cover simply to pin up.

Supply 1 cover

Chiudi

A4131007

Cover 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4131008 Cover 31, without line

A4131008

Cover 31, without line Suitable for round knobs 31. Cover simply to pin up.

Supply 1 cover

Chiudi

A4131008

Cover 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4131100 Cover 31, with line

A4131100

Cover 31, with line Suitable for round knobs 31. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A4131100

Cover 31, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4131102 Cover 31, with line

A4131102

Cover 31, with line Suitable for round knobs 31. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4131102

Cover 31, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4131108 Cover 31, with line

A4131108

Cover 31, with line Suitable for round knobs 31. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4131108

Cover 31, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

A4231000 Arrow disk 31

A4231000

Arrow disk 31 Suitable for round knob 31. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4231000

Arrow disk 31
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4231002 Arrow disk 31

A4231002

Arrow disk 31 Suitable for round knob 31. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4231002

Arrow disk 31
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4231008 Arrow disk 31

A4231008

Arrow disk 31 Suitable for round knob 31. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4231008

Arrow disk 31
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4431010 Dial 31

A4431010

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4431010

Dial 31
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4431060 Dial 31

A4431060

Dial 31 Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4431060

Dial 31
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A6403005 Adjusting key 20/23/31

A6403005

Adjusting key 20/23/31 For exact adjustment of combination knobs with marking elements, dials, arrow disks. Unproblematic knob assembly. Suitable for round knobs ø 20, 23 and 31.

Supply 1 adjusting key

Chiudi

A6403005

Adjusting key 20/23/31
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green
A7331000 Disk 31, without line

A7331000

Disk 31, without line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up.

Supply 1 disk

Chiudi

A7331000

Disk 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A7331010 Disk 31, with line

A7331010

Disk 31, with line Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up. White marking.

Supply 1 disk

Chiudi

A7331010

Disk 31, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A2531630

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
31 mm
Height
15 mm
Bore hole ″
1/4″
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 887 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7,7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
