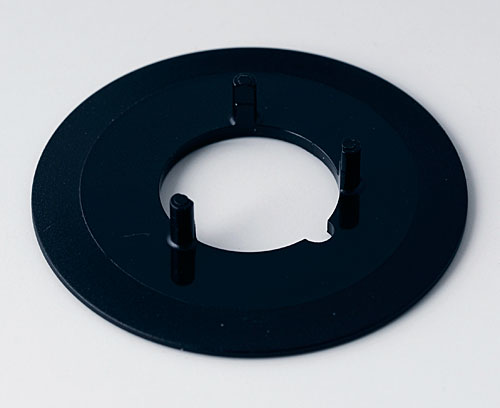

A7331000 Disk 31, without line

A7331000

Disk 31, without line

Suitable for round knob 31 / COM-KNOB 31. Disk simply to pin up.

Supply

1 disk

  • Usato per
  • Modifiche specifiche del cliente
A2531060 ROUND KNOB 31, without line

A2531060

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2531060

ROUND KNOB 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
31x15mm
Foro assiale 6mm
A2531068 ROUND KNOB 31, without line

A2531068

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2531068

ROUND KNOB 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
31x15mm
Foro assiale 6mm
A2531630 ROUND KNOB 31, without line

A2531630

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2531630

ROUND KNOB 31, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
31x15mm
Foro assiale 1/4″
A2631060 ROUND KNOB 31, with line

A2631060

ROUND KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2631060

ROUND KNOB 31, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
31x15mm
Foro assiale 6mm
A2631068 ROUND KNOB 31, with line

A2631068

ROUND KNOB 31, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Chiudi

A2631068

ROUND KNOB 31, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
31x15mm
Foro assiale 6mm
A3131068 COM-KNOBS 31, without recess

A3131068

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3131068

COM-KNOBS 31, without recess
Prodotto aggiunto alla lista
PA 6
volcano
31x16mm
Foro assiale 6mm
A3131069 COM-KNOBS 31, without recess

A3131069

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3131069

COM-KNOBS 31, without recess
Prodotto aggiunto alla lista
PA 6
nero
31x16mm
Foro assiale 6mm
A3131638 COM-KNOBS 31, without recess

A3131638

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3131638

COM-KNOBS 31, without recess
Prodotto aggiunto alla lista
PA 6
volcano
31x16mm
Foro assiale 1/4″
A3131639 COM-KNOBS 31, without recess

A3131639

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3131639

COM-KNOBS 31, without recess
Prodotto aggiunto alla lista
PA 6
nero
31x16mm
Foro assiale 1/4″

Customising options for A7331000

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1,4 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
