A2523060 ROUND KNOB 23, without line

A2523060

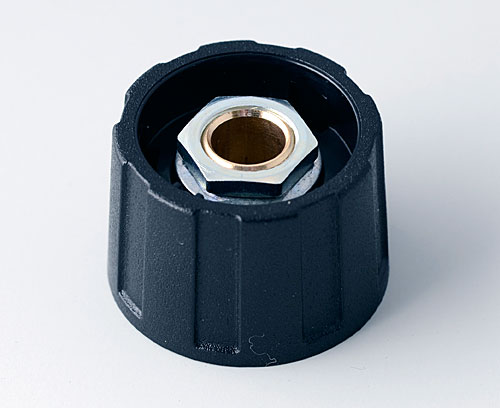

ROUND KNOB 23, without line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply

1 round knob

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A4123000 Cover 23, without line

A4123000

Cover 23, without line Suitable for round knobs 23. Cover simply to pin up.

Supply 1 cover

Chiudi

A4123000

Cover 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4123002 Cover 23, without line

A4123002

Cover 23, without line Suitable for round knobs 23. Cover simply to pin up.

Supply 1 cover

Chiudi

A4123002

Cover 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4123004 Cover 23 without line

A4123004

Cover 23 without line Suitable for round knobs 23. Cover simply to pin up.

Supply 1 cover

Chiudi

A4123004

Cover 23 without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
yellow RAL F12/0-1
A4123006 Cover 23, without line

A4123006

Cover 23, without line Suitable for round knobs 23. Cover simply to pin up.

Supply 1 cover

Chiudi

A4123006

Cover 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4123007 Cover 23, without line

A4123007

Cover 23, without line Suitable for round knobs 23. Cover simply to pin up.

Supply 1 cover

Chiudi

A4123007

Cover 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4123008 Cover 23, without line

A4123008

Cover 23, without line Suitable for round knobs 23. Cover simply to pin up.

Supply 1 cover

Chiudi

A4123008

Cover 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4123100 Cover 23, with line

A4123100

Cover 23, with line Suitable for round knobs 23. Cover simply to pin up. White marking.

Supply 1 cover

Chiudi

A4123100

Cover 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4123102 Cover 23, with line

A4123102

Cover 23, with line Suitable for round knobs 23. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4123102

Cover 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4123105 Cover 23, with line

A4123105

Cover 23, with line Suitable for round knobs 23. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4123105

Cover 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green RAL F12/0-43
A4123106 Cover 23, with line

A4123106

Cover 23, with line Suitable for round knobs 23. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4123106

Cover 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light blue RAL 5012
A4123107 Cover 23, with line

A4123107

Cover 23, with line Suitable for round knobs 23. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4123107

Cover 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
pebble grey RAL 7032
A4123108 Cover 23, with line

A4123108

Cover 23, with line Suitable for round knobs 23. Cover simply to pin up. Black marking.

Supply 1 cover

Chiudi

A4123108

Cover 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037

Accessory "screws"

A6207009 Round nut M7 x 0.75

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6207009

Round nut M7 x 0.75
Prodotto aggiunto alla lista
A6210009 Round nut M10 x 0.75

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6210009

Round nut M10 x 0.75
Prodotto aggiunto alla lista
A6295009 Round nut 3/8"-32G

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Chiudi

A6295009

Round nut 3/8"-32G
Prodotto aggiunto alla lista
A6300000 Spanner

A6300000

Spanner For tightening the round nut. Suitable for round nuts M7 x 0.75, M10 x 0.75 and 3/8"-32G.

Supply 1 spanner

Chiudi

A6300000

Spanner
Prodotto aggiunto alla lista

Accessory

A4223000 Arrow disk 23

A4223000

Arrow disk 23 Suitable for round knob 23. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4223000

Arrow disk 23
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A4223002 Arrow disk 23

A4223002

Arrow disk 23 Suitable for round knob 23. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4223002

Arrow disk 23
Prodotto aggiunto alla lista
ABS (UL 94 HB)
red RAL F12/0-10
A4223008 Arrow disk 23

A4223008

Arrow disk 23 Suitable for round knob 23. Arrow disk simply to pin up.

Supply 1 arrow disk

Chiudi

A4223008

Arrow disk 23
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
A4423010 Dial 23

A4423010

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4423010

Dial 23
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4423020 Dial 23

A4423020

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright.

Version Black symbol.

Supply 1 dial

Chiudi

A4423020

Dial 23
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4423039 Dial 23

A4423039

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Silver symbol.

Supply 1 dial

Chiudi

A4423039

Dial 23
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A4423060 Dial 23

A4423060

Dial 23 Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply 1 dial

Chiudi

A4423060

Dial 23
Prodotto aggiunto alla lista
PC (UL 94 HB)
transparent
A6023019 Stator 23

A6023019

Stator 23 Suitable for round knobs 23 / COM-KNOB 23. Stator with self-adhesive foil. Black marking.

Supply 1 Stator

Chiudi

A6023019

Stator 23
Prodotto aggiunto alla lista
Aluminium
A6403005 Adjusting key 20/23/31

A6403005

Adjusting key 20/23/31 For exact adjustment of combination knobs with marking elements, dials, arrow disks. Unproblematic knob assembly. Suitable for round knobs ø 20, 23 and 31.

Supply 1 adjusting key

Chiudi

A6403005

Adjusting key 20/23/31
Prodotto aggiunto alla lista
ABS (UL 94 HB)
green
A6600064 Torsion protection 6/4.6

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

Chiudi

A6600064

Torsion protection 6/4.6
Prodotto aggiunto alla lista
A7323010 Disk 23, with line

A7323010

Disk 23, with line Suitable for round knob 23 / COM-KNOB 23. Disk simply to pin up. Black marking.

Supply 1 disk

Chiudi

A7323010

Disk 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Customising options for A2523060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
23 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 856 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
6,9 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
