A4423060 Dial 23

A4423060

Dial 23

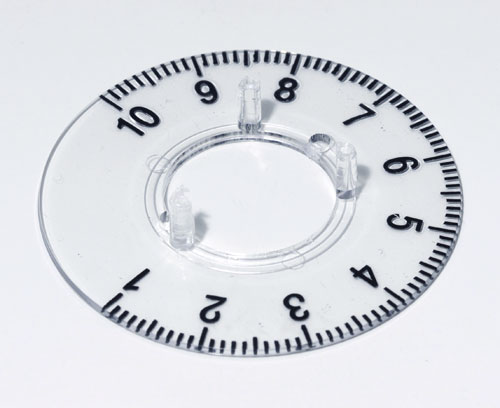

Dial simply to pin up for round knob 23 / COM-KNOB 23. Surface bright. Black symbol.

Supply

1 dial

  • Usato per
  • Modifiche specifiche del cliente
A2523040 ROUND KNOB 23, without line

A2523040

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

Chiudi

A2523040

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 4mm
A2523060 ROUND KNOB 23, without line

A2523060

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523060

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 6mm
A2523068 ROUND KNOB 23, without line

A2523068

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523068

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Foro assiale 6mm
A2523630 ROUND KNOB 23, without line

A2523630

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523630

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 1/4″
A2523638 ROUND KNOB 23, without line

A2523638

ROUND KNOB 23, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2523638

ROUND KNOB 23, without line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Foro assiale 1/4″
A2623040 ROUND KNOB 23, with line

A2623040

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking. Max. torque: assembly = 1,0 Nm, function = 0.8 Nm.

Supply 1 round knob

Chiudi

A2623040

ROUND KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 4mm
A2623060 ROUND KNOB 23, with line

A2623060

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2623060

ROUND KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
23x15mm
Foro assiale 6mm
A2623068 ROUND KNOB 23, with line

A2623068

ROUND KNOB 23, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. Black marking.
Max. torque: assembly = 1,2 Nm, function = 1,0 Nm.

Supply 1 round knob

Chiudi

A2623068

ROUND KNOB 23, with line
Prodotto aggiunto alla lista
ABS (UL 94 HB)
dusty grey RAL 7037
23x15mm
Foro assiale 6mm
A3123048 COM-KNOBS 23, without recess

A3123048

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.8 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3123048

COM-KNOBS 23, without recess
Prodotto aggiunto alla lista
PA 6
volcano
23x16mm
Foro assiale 4mm
A3123049 COM-KNOBS 23, without recess

A3123049

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.0 Nm, function = 0.8 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3123049

COM-KNOBS 23, without recess
Prodotto aggiunto alla lista
PA 6
nero
23x16mm
Foro assiale 4mm
A3123068 COM-KNOBS 23, without recess

A3123068

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3123068

COM-KNOBS 23, without recess
Prodotto aggiunto alla lista
PA 6
volcano
23x16mm
Foro assiale 6mm
A3123069 COM-KNOBS 23, without recess

A3123069

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3123069

COM-KNOBS 23, without recess
Prodotto aggiunto alla lista
PA 6
nero
23x16mm
Foro assiale 6mm
A3123638 COM-KNOBS 23, without recess

A3123638

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3123638

COM-KNOBS 23, without recess
Prodotto aggiunto alla lista
PA 6
volcano
23x16mm
Foro assiale 1/4″
A3123639 COM-KNOBS 23, without recess

A3123639

COM-KNOBS 23, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply 1 COM-KNOB (without recess)

Chiudi

A3123639

COM-KNOBS 23, without recess
Prodotto aggiunto alla lista
PA 6
nero
23x16mm
Foro assiale 1/4″

Customising options for A4423060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
1,2 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
