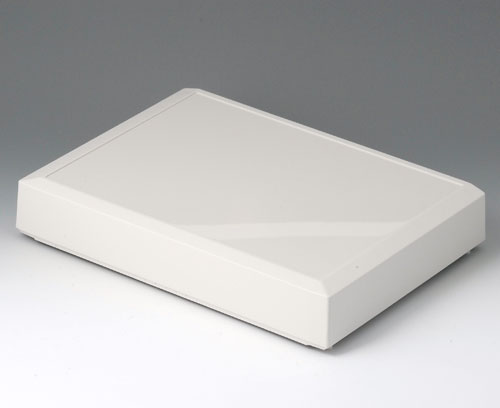

B4030657 Cover L, high

B4030657

Cover L, high

Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply

1 cover, assembly kit

  • Usato per
  • Modifiche specifiche del cliente
B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Chiudi

B4030117

DATEC-TERMINAL L, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.
B4030217 DATEC-TERMINAL L, Vers. II

B4030217

DATEC-TERMINAL L, Vers. II Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Chiudi

B4030217

DATEC-TERMINAL L, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.
B4030317 DATEC-TERMINAL L, Vers. III

B4030317

DATEC-TERMINAL L, Vers. III Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

Chiudi

B4030317

DATEC-TERMINAL L, Vers. III
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
302x272x101mm
IP 54 opt.

Customising options for B4030657

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Width
302 mm
Depth
220 mm
Height
50 mm
PCB length, base
209 mm
PCB width, base
263 mm
Keypad length
194,9 mm
Keypad width
262,9 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 11.965 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
459 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
