B4030217 DATEC-TERMINAL L, Vers. II

B4030217

DATEC-TERMINAL L, Vers. II

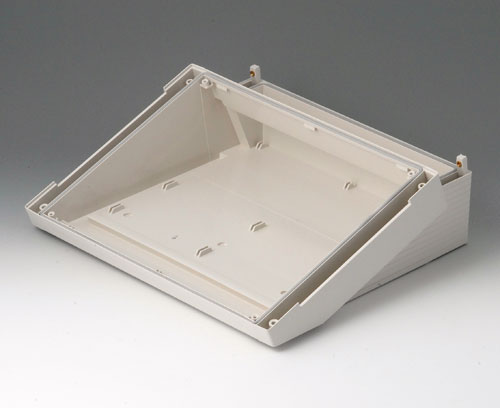

Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version

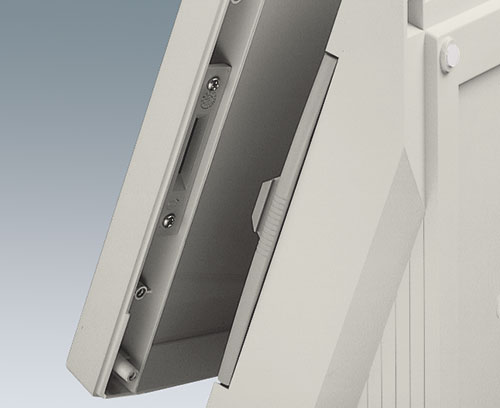

Machined for assembly of hinge and quick-action lock

Supply

1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

B4016671 Cover strip M / L

B4016671

Cover strip M / L For covering the area with the screws when using the convex cover. Simply snap-in. Colour coding possible, e.g. by inserting an individual coloured paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Chiudi

B4016671

Cover strip M / L
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
B4016677 Cover strip M / L

B4016677

Cover strip M / L For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Chiudi

B4016677

Cover strip M / L
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
B4030417 Lid L closed, flat

B4030417

Lid L closed, flat Lid L closed, flat to cover up the terminal compartment and for mounting of pocket scanners on a magnetic, inductive and chip-card base. List of suitable devices on demand.

Supply 1 lid, 2 screws M3

Chiudi

B4030417

Lid L closed, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
268x62x24mm
B4030617 Cover L, flat

B4030617

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Chiudi

B4030617

Cover L, flat
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm

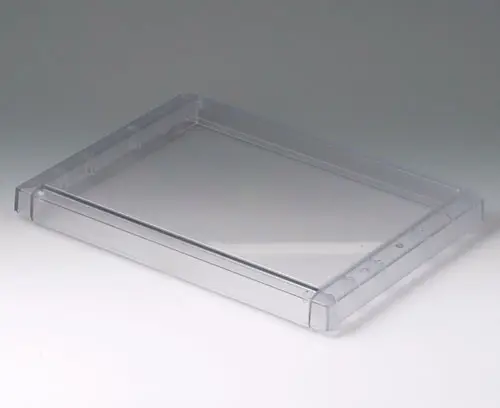

B4030621 Cover L, flat

B4030621

Cover L, flat Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protectingthe electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Chiudi

B4030621

Cover L, flat
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
302x220x29mm
B4030631 Cover L, convex

B4030631

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Chiudi

B4030631

Cover L, convex
Prodotto aggiunto alla lista
PC (UL 94 V-0)
transparent
302x220x29mm
B4030637 Cover L, convex

B4030637

Cover L, convex Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.

Supply 1 cover, assembly kit

Chiudi

B4030637

Cover L, convex
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x29mm
B4030657 Cover L, high

B4030657

Cover L, high Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (1 mm) for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply 1 cover, assembly kit

Chiudi

B4030657

Cover L, high
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
302x220x50mm
B4030917 Lid L with card slot, one piece

B4030917

Lid L with card slot, one piece Lid L with slot, one piece for mounting of pull-through reading devices for magnetic cards. List of suitable devices on demand. Additional machining (milling) necessary. Support plate for installation of reading devices see accessories.

Supply 1 lid, 2 screws

Chiudi

B4030917

Lid L with card slot, one piece
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
268x67x38mm
B4130116 Front panel LH

B4130116

Front panel LH Front panel LH used when case is fitted with a cover. Suitable for mounting of all kinds of operating elements under the cover.

Supply 1 front panel, 4 screws diameter 3 mm

Chiudi

B4130116

Front panel LH
Prodotto aggiunto alla lista
Aluminium
matt anodised
262x209x2mm

Accessory "wall/holder"

B4130147 Wall suspension element L

B4130147

Wall suspension element L Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply 1 wall suspension element, 2 screws M3

Chiudi

B4130147

Wall suspension element L
Prodotto aggiunto alla lista
Steel
galvanized
214x260x12mm

Accessory

B4116136 Support plate L and M

B4116136

Support plate L and M Suitable for lid L (B4030917) and lid M (B4016917) with card slot, one piece. Support plate for installation of most popular types of card readers.

Supply 1 support plate, 2 screws diameter 2.5 mm

Chiudi

B4116136

Support plate L and M
Prodotto aggiunto alla lista
Aluminium
matt anodised
102x45x1mm

Customising options for B4030217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 54 opt.
Necessary accessories: cover / cover convex and closed lid
Colore
off-white RAL 9002
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Width
302 mm
Depth
272 mm
Height
101 mm
PCB length, base
255 mm
PCB width, base
258 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.839 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
660 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
