A9178169 Station, Vers. II

A9178169

Station, Vers. II

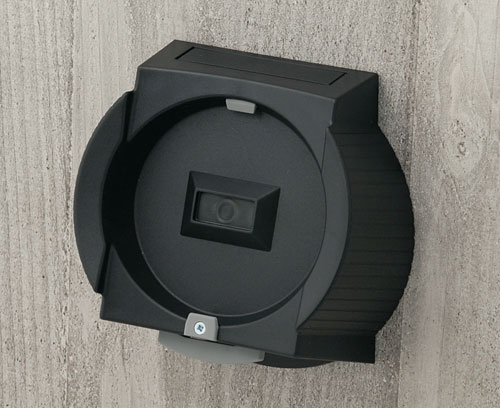

Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version

Wall-mounting

Supply

1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A9078109 DATEC-CONTROL M, Vers. I

A9078109

DATEC-CONTROL M, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Chiudi

A9078109

DATEC-CONTROL M, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
243x130x60mm
IP 54 opt.
A9078209 DATEC-CONTROL M, Vers. II

A9078209

DATEC-CONTROL M, Vers. II Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With maximum sized cutout for digital displays

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Chiudi

A9078209

DATEC-CONTROL M, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
243x130x60mm
IP 54 opt.
A9079109 DATEC-CONTROL L, Vers. I

A9079109

DATEC-CONTROL L, Vers. I Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With closed operating area, recessed: 1.7 mm deep

Supply Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Chiudi

A9079109

DATEC-CONTROL L, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
266x144x60mm
IP 54 opt.
A9079209 DATEC-CONTROL L, Vers. II

A9079209

DATEC-CONTROL L, Vers. II Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version With maximum sized cutout for digital displays

Supply Top and base part,end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

Chiudi

A9079209

DATEC-CONTROL L, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
266x144x60mm
IP 54 opt.

Accessory "battery"

A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

Chiudi

A9178118

Battery compartment holder
Prodotto aggiunto alla lista
PC
volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Chiudi

A9178128

Battery compartment, M/L, 4 x AA
Prodotto aggiunto alla lista
PC
volcano
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Chiudi

A9178158

Battery compartment, M/L, 5 x AA
Prodotto aggiunto alla lista
PC
volcano

Accessory

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated

Customising options for A9178169

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
267 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
