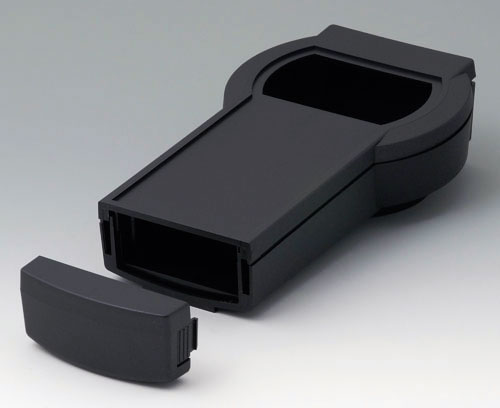

A9078209 DATEC-CONTROL M, Vers. II

A9078209

DATEC-CONTROL M, Vers. II

Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version

With maximum sized cutout for digital displays

Supply

Top and base part, end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

Chiudi

A9178118

Battery compartment holder
Prodotto aggiunto alla lista
PC
volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Chiudi

A9178128

Battery compartment, M/L, 4 x AA
Prodotto aggiunto alla lista
PC
volcano
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Chiudi

A9178158

Battery compartment, M/L, 5 x AA
Prodotto aggiunto alla lista
PC
volcano
A9178178 End plate for electronic area, Vers. I

A9178178

End plate for electronic area, Vers. I Simply inserted into the guides in the bottom part.

Version To close the electronic area

Supply 1 end plate for electronic area

Chiudi

A9178178

End plate for electronic area, Vers. I
Prodotto aggiunto alla lista
PC
volcano

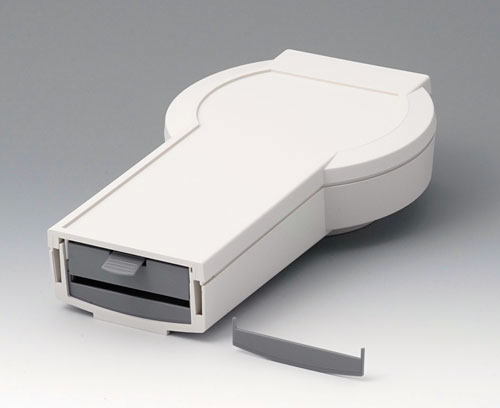

A9178188 End plate for electronic area, Vers. II

A9178188

End plate for electronic area, Vers. II Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

Chiudi

A9178188

End plate for electronic area, Vers. II
Prodotto aggiunto alla lista
PC
volcano

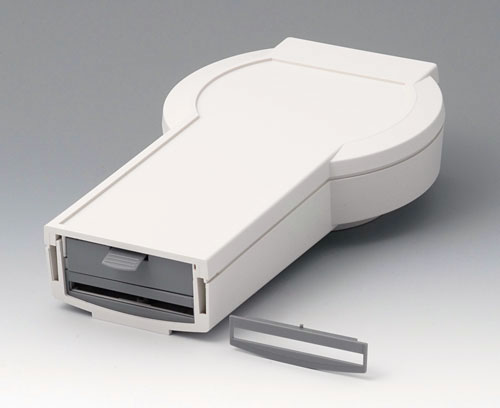

A9178198 End plate for electronic area, Vers. III

A9178198

End plate for electronic area, Vers. III Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

Chiudi

A9178198

End plate for electronic area, Vers. III
Prodotto aggiunto alla lista
PC
volcano

Accessory "station"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178007

Contacts, male
Prodotto aggiunto alla lista
gold-plated
A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

Chiudi

A9178118

Battery compartment holder
Prodotto aggiunto alla lista
PC
volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Chiudi

A9178128

Battery compartment, M/L, 4 x AA
Prodotto aggiunto alla lista
PC
volcano
A9178139 Station, Vers. I

A9178139

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

Chiudi

A9178139

Station, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

Chiudi

A9178158

Battery compartment, M/L, 5 x AA
Prodotto aggiunto alla lista
PC
volcano

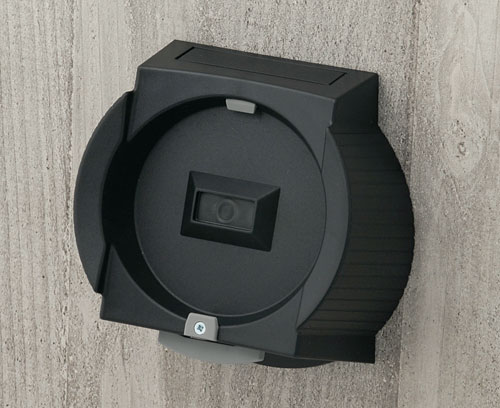

A9178169 Station, Vers. II

A9178169

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

Chiudi

A9178169

Station, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Accessory "protection"

A9178001 Display window M

A9178001

Display window M The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

Chiudi

A9178001

Display window M
Prodotto aggiunto alla lista
Acrylic glass
clear

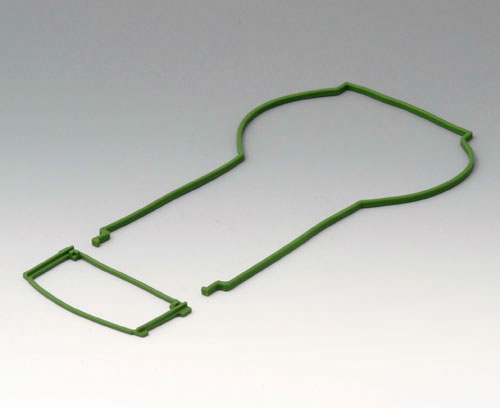

A9178006 Sealing kit M

A9178006

Sealing kit M Application: for increasing the protection class, of DATEC-CONTROL M.

Supply 1 sealing kit

Chiudi

A9178006

Sealing kit M
Prodotto aggiunto alla lista

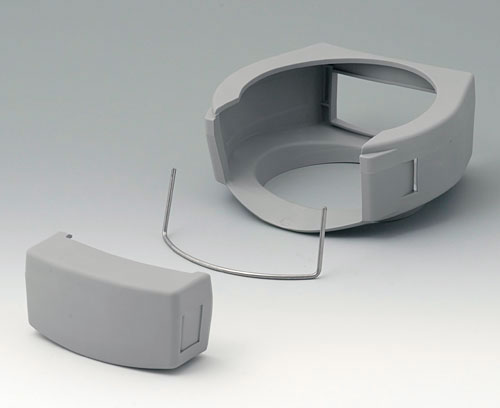

A9178108 Protector M

A9178108

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

Chiudi

A9178108

Protector M
Prodotto aggiunto alla lista
SBS (TPE)
volcano
A9178208 Protector M

A9178208

Protector M Special protector for DATEC-CONTROL M. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version With shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle)

Supply 1 protector, 1 shoulder strap

Chiudi

A9178208

Protector M
Prodotto aggiunto alla lista
SBS (TPE)
volcano

Accessory "wall/holder"

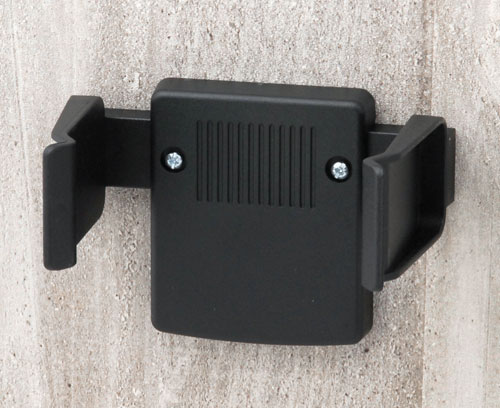

A9226119 Wall suspension element

A9226119

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

Chiudi

A9226119

Wall suspension element
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005

Accessory

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

Chiudi

A9178008

Contacts, female
Prodotto aggiunto alla lista
gold-plated

Customising options for A9078209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 54 opt.
Necessary accessories: sealing kit, display window (set with adhesive foil)
Colore
black RAL 9005
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
243 mm
Width
130 mm
Height
60 mm
PCB length, base
207 mm
PCB width, base
80 mm
PCB length, top
113 mm
PCB width, top
78 mm
Display length, base
51 mm
Display width, base
88 mm
Keypad length
189,2 mm
Keypad width
78 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 9.271 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

External Accessory - miscellaneous

Weight/1 part
250 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
