SNAPTEC

Snaptec

Contenitori con un clic IP 65

I contenitori SNAPTEC si distinguono per una tecnica di montaggio pratica e innovativa con arresto a scatto.

  • Contenitori a muro dai costi contenuti

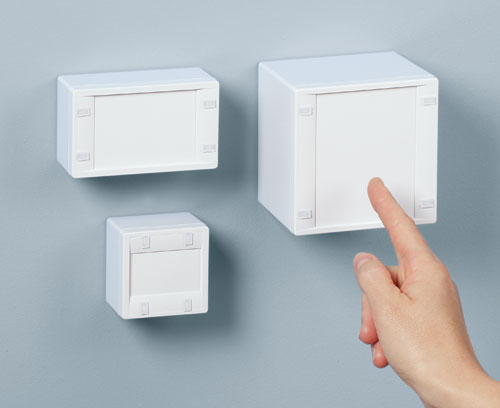

  • Montaggio facile grazie alla parte superiore con arresto a scatto

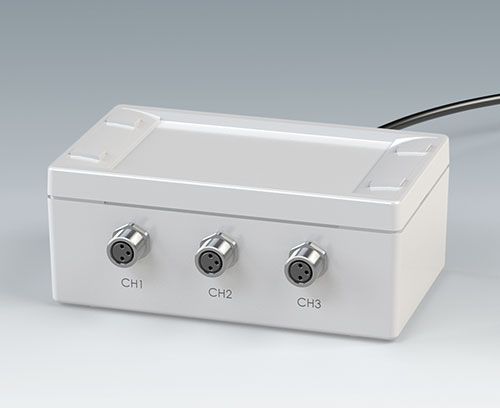

  • Parti inferiori rialzate che offrono ampio spazio per passacavi a vite e interfacce

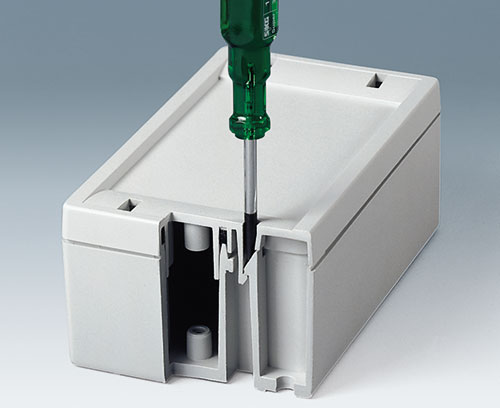

  • Smontaggio rapido con sistema di sblocco o cacciavite

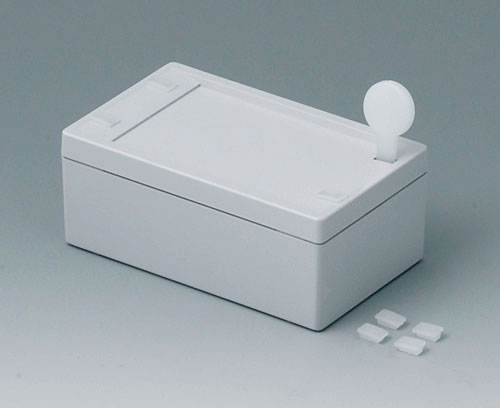

  • Sistema di sblocco e coperture per le aperture tra gli elementi forniti

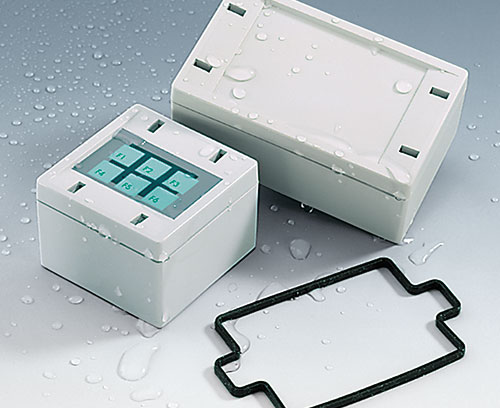

  • Elevato grado di protezione IP 65; guarnizione già inserita nella parte superiore
  • Superficie di comando incavata a protezione della tastiera a membrana o dell'etichetta

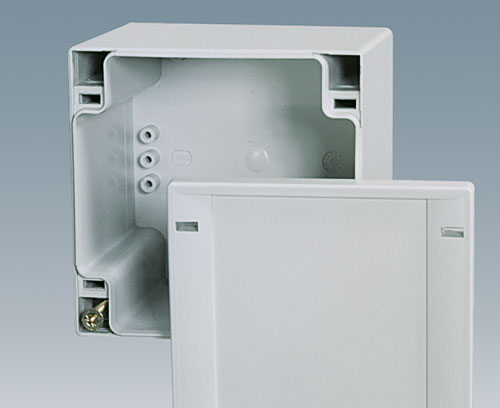

  • Montaggio a muro semplice e non visibile grazie agli appositi vani per le viti nella parte inferiore

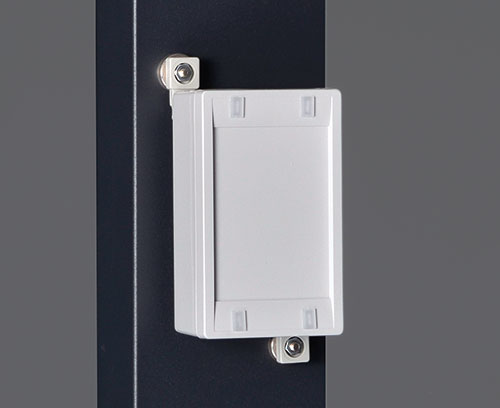

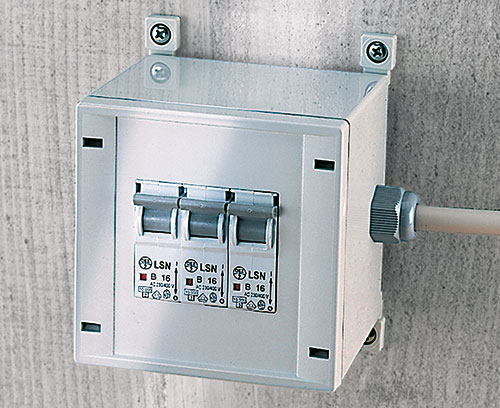

  • In alternativa montaggio tramite linguette di fissaggio esterne separate

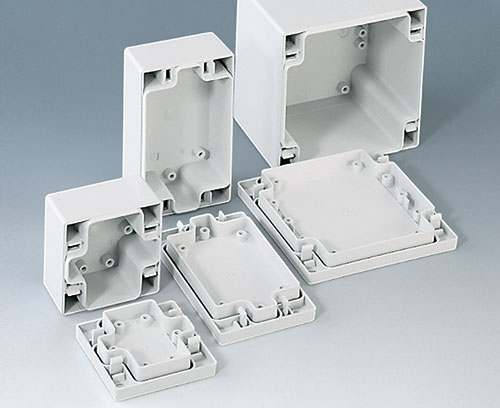

  • Punti di fissaggio integrati per schede e componenti di montaggio

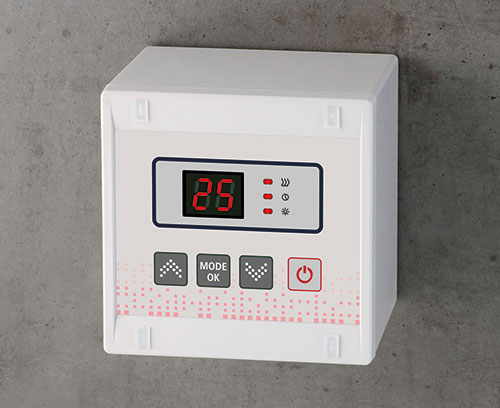

  • Esempi di applicazione

Application fields

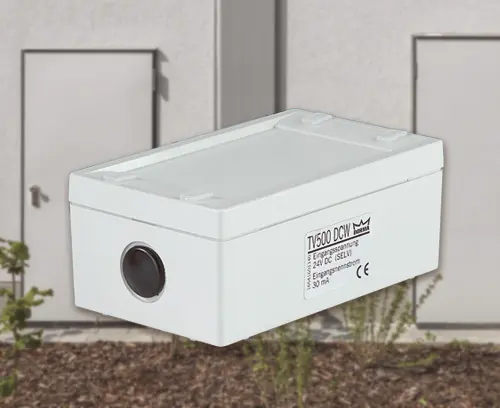

  • Predestinati per gli impianti elettrici, ad es. nella tecnica di riscaldamento, condizionamento e ventilazione per apparecchi di controllo e di monitoraggio, nella realizzazione di sistemi di controllo e di impianti, dei sistemi di sicurezza ecc.
  • Ma utilizzabili anche in ambito elettronico, ad es. per strumenti di misura digitali o analogici, sensori, come contenitori per interfacce, dispositivi di allarme, ecc.
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente

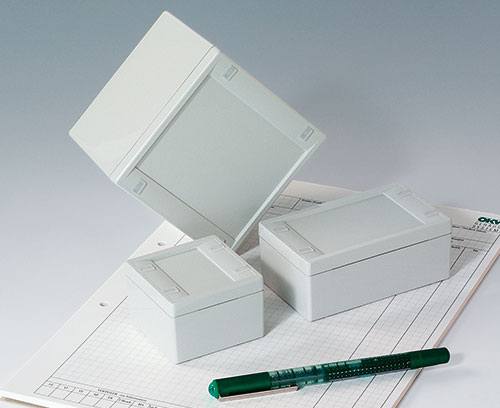

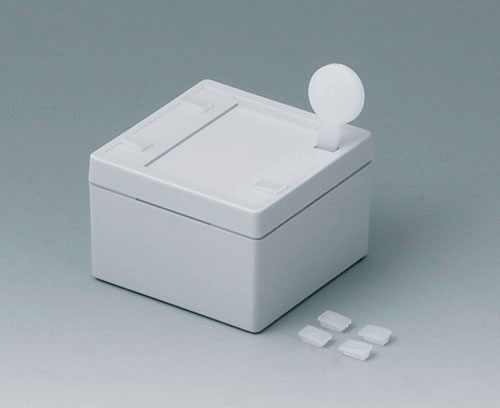

C3006061 SNAPTEC 60 x 60

C3006061

SNAPTEC 60 x 60 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, cover for the locking openings, dismantling key

Chiudi

C3006061

SNAPTEC 60 x 60
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
60x60x40mm
IP 65
C3006101 SNAPTEC 60 x 100

C3006101

SNAPTEC 60 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Chiudi

C3006101

SNAPTEC 60 x 100
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
60x100x40mm
IP 65

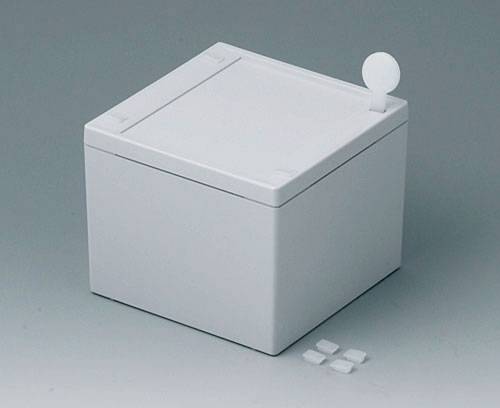

C3010101 SNAPTEC 100 x 100

C3010101

SNAPTEC 100 x 100 Top and base parts are fitted together using a unique snap-in machanism. Fixing towers in top and base part. Recessed area for membrane keyboards. Simple, invisible wall-mounting in pre-moulded shafts within the base part.

Supply 1 top and base part with sealing, covers for the locking openings, dismantling key

Chiudi

C3010101

SNAPTEC 100 x 100
Prodotto aggiunto alla lista
ABS (UL 94 HB)
light grey RAL 7035
100x100x80mm
IP 65
A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista
C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Chiudi

C2299028

Wall mounting brackets
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
C2306917 Pressure equalisation element M6x0.75

C2306917

Pressure equalisation element M6x0.75 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Chiudi

C2306917

Pressure equalisation element M6x0.75
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2310917 Pressure equalisation element M10x1

C2310917

Pressure equalisation element M10x1 Pressure equalisation elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure: > 6 bar.
Temperature range: -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalisation element, 1 seal washer, 1 nut

Chiudi

C2310917

Pressure equalisation element M10x1
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
light grey RAL 7035
IP 56
C2316147

C2316147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 5 - 10 mm. Operating temperatures from -40°C to +100°C. Borehole ø 16.5 mm.

Supply 1 cable grommet

Chiudi

C2316147

Cable grommet
Prodotto aggiunto alla lista
TPE
light grey RAL 7035
IP 67
C2320137

C2320137

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 1 - 4 mm and for cable diameters from 8 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Chiudi

C2320137

Cable grommet
Prodotto aggiunto alla lista
EPDM
light grey RAL 7035
IP 67
C2320147

C2320147

Cable grommet Simple cable grommet, easy to install, with easy-to-pierce membrane. Tight fit as soon as the cable is pulled backwards a little. Free of halogens. Suitable for wall thicknesses from 0.5 - 3 mm and for cable diameters from 6 - 13 mm. Operating temperatures from -40°C to +100°C. Borehole ø 20.5 mm.

Supply 1 cable grommet

Chiudi

C2320147

Cable grommet
Prodotto aggiunto alla lista
TPE
light grey RAL 7035
IP 67

Opzioni prodotto per Snaptec

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
