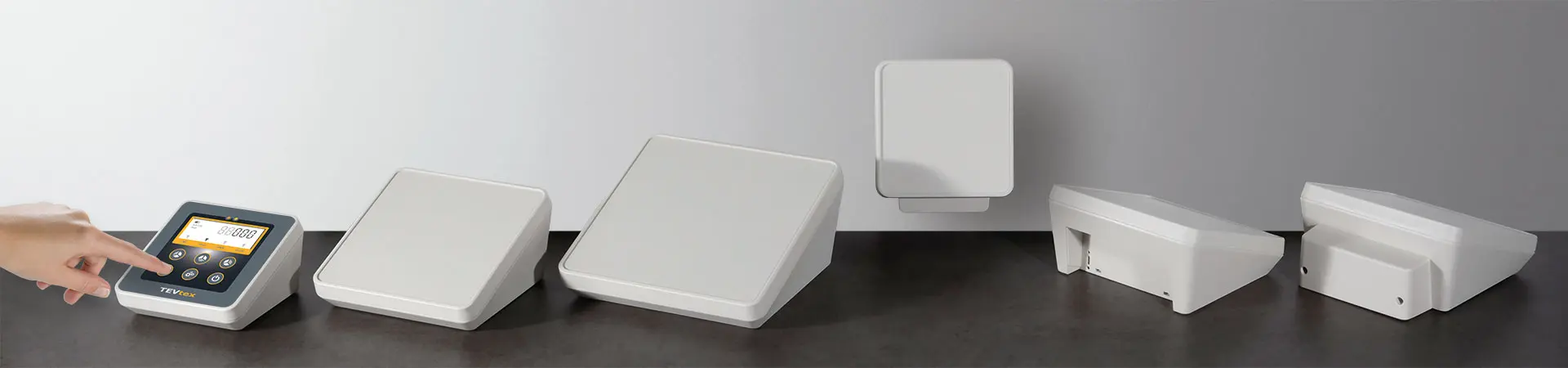

PROTEC contenitore a muro e da scrivania

Protec

Comandi in quadrato

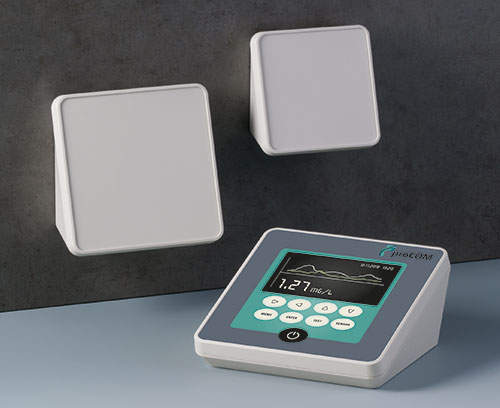

PROTEC è caratterizzato da una forma di base quadrata con linee di contorno morbide. Per questo motivo il contenitore a muro e da scrivania è perfettamente adatto per applicazioni elettroniche moderne sia in interni che in esterni.

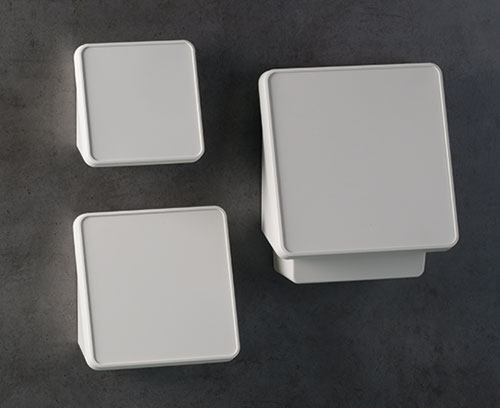

  • È disponibile nelle tre misure 140 / 180 / 220, ciascuna nelle seguenti versioni:

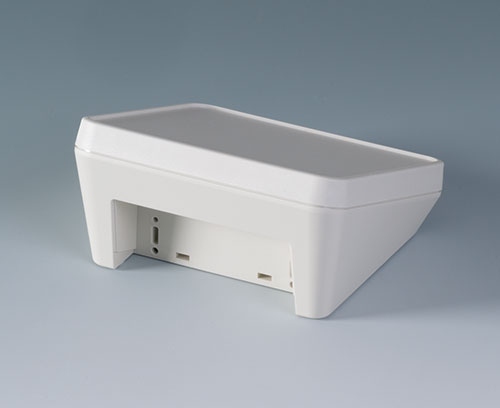

    Versione I

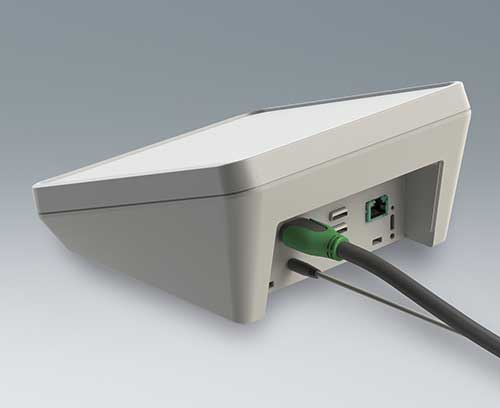

    Dispone di una zona arretrata per il montaggio e la protezione di interfacce o linee di alimentazione.

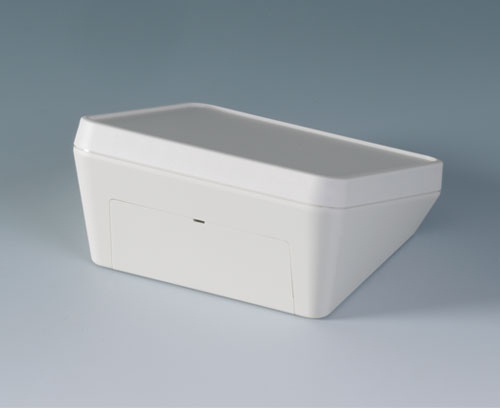

    Versione II
    Oltre a una parte superiore e una inferiore, tra gli elementi forniti è compreso anche un coperchio per coprire a filo le zona delle interfacce.

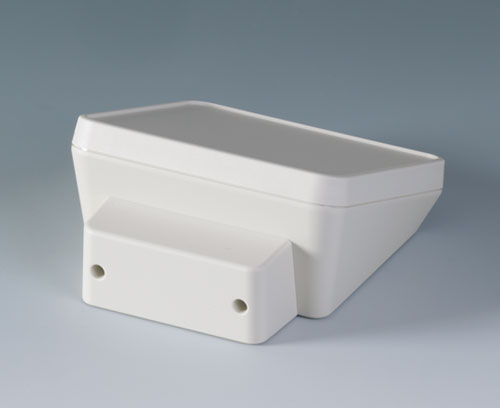

    Versione III
    Grazie al coperchio rialzato offre maggiore volume per il montaggio di componenti.

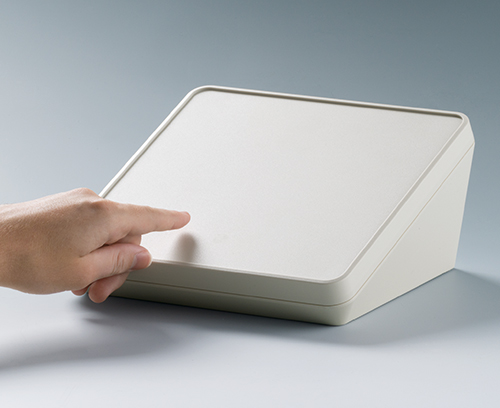

  • Superficie di comando con inclinazione ergonomica di 20°

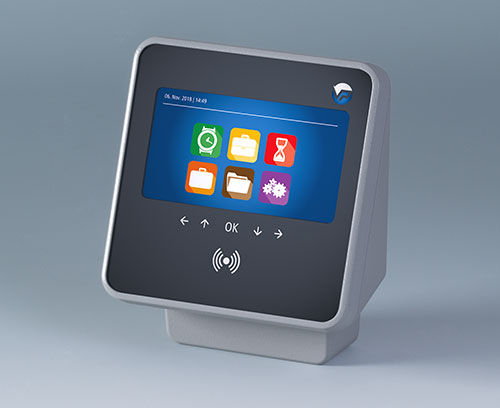

  • Superficie di comando incavata a protezione della tastiera a membrana

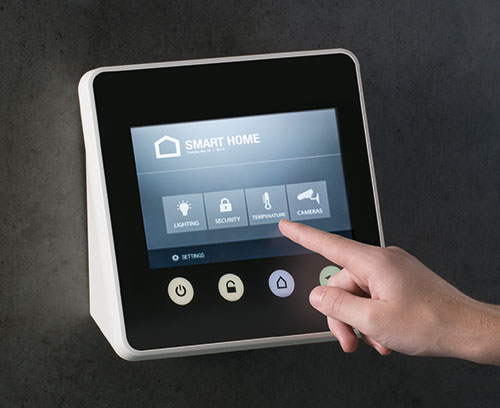

  • Molto spazio per touch screen (PROTEC 140: 5,7"/14,5 cm, PROTEC 180: 7"/17,8 cm, PROTEC 220: 8,4"/21,3 cm)
  • Collegamenti a vite completamente nascosti
  • Materiale V0 di elevata qualità in bianco grigiastro (RAL 9002) e grado di protezione opzionale IP 65 (guarnizione disponibile come accessorio) per settori di applicazione che richiedono resistenza

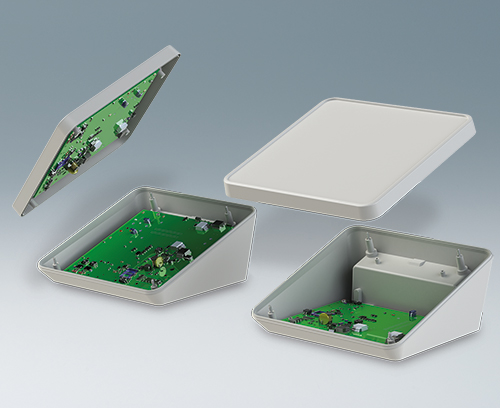

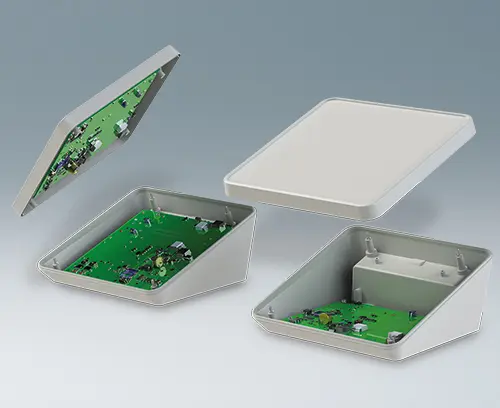

  • Vano ermetico per i componenti elettronici con 3 livelli per schede; ampio spazio per componenti

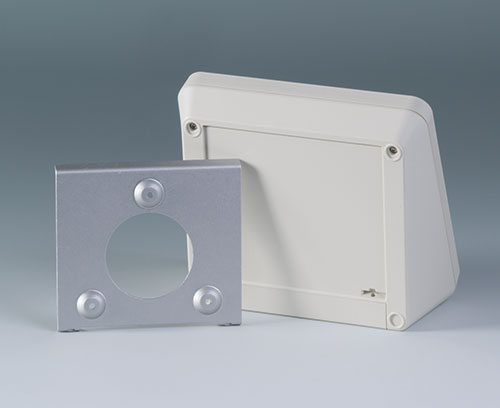

  • Montaggio a muro nascosto e a filo della parete con sicura antirimozione (supporto nel programma degli accessori)
  • Viti in acciaio inossidabile con azionamento Torx di sicurezza
  • Posizione sicura degli apparecchi da scrivania grazie ai piedini antiscivolo in gomma
  • Video
  • Esempi di applicazione

Application fields

  • Impianti di monitoraggio, controllo degli accessi
  • Sistemi di rilevamento dei dati
  • Gestione di impianti tecnici di edifici, centraline di controllo
  • IoT/IIoT
  • Smart Factory
  • Industria 4.0
  • Periferiche di computer
  • Metrologia e tecnica di regolazione

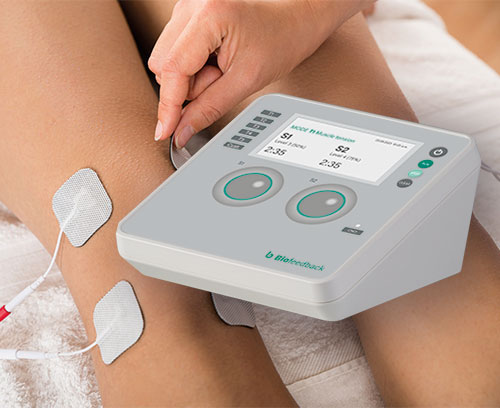

  • Tecnica medicale, health care
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente
B4414107 PROTEC 140, Vers. I

B4414107

PROTEC 140, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4414107

PROTEC 140, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
140x140x76mm
IP 65 opt.

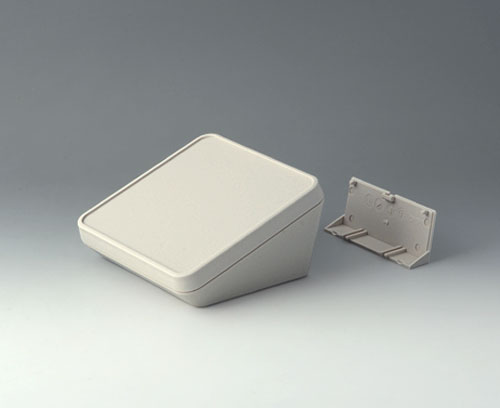

B4414207 PROTEC 140, Vers. II

B4414207

PROTEC 140, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4414207

PROTEC 140, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
140x140x76mm
IP 65 opt.

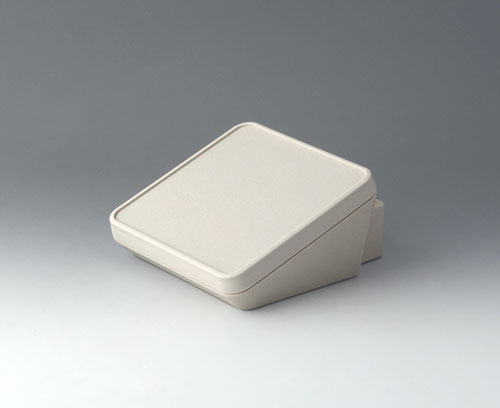

B4414307 PROTEC 140, Vers. III

B4414307

PROTEC 140, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4414307

PROTEC 140, Vers. III
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
140x160x76mm
IP 65 opt.
B4418107 PROTEC 180, Vers. I

B4418107

PROTEC 180, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4418107

PROTEC 180, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.
B4418207 PROTEC 180, Vers. II

B4418207

PROTEC 180, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4418207

PROTEC 180, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x180x92mm
IP 65 opt.
B4418307 PROTEC 180, Vers. III

B4418307

PROTEC 180, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4418307

PROTEC 180, Vers. III
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
180x201x92mm
IP 65 opt.

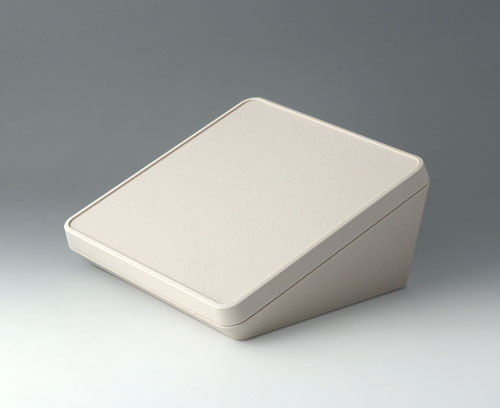

B4422107 PROTEC 220, Vers. I

B4422107

PROTEC 220, Vers. I Modern two piece plastic enclosure with an ergonomically inclined operating panel. Fastening pillars for PCBs and components in the top and bottom parts. Recessed interface area. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4422107

PROTEC 220, Vers. I
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.

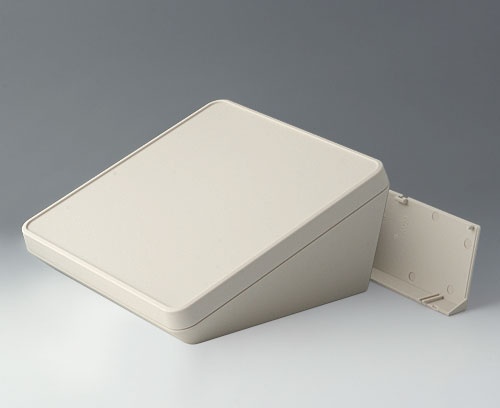

B4422207 PROTEC 220, Vers. II

B4422207

PROTEC 220, Vers. II Modern three piece plastic enclosure with an ergonomically inclined operating panel. The snap-on cover included in the supply makes it possible to close the deep recessed interface area at the rear both visually and/or to install additional electronics in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, snap-on cover, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4422207

PROTEC 220, Vers. II
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x220x108mm
IP 65 opt.

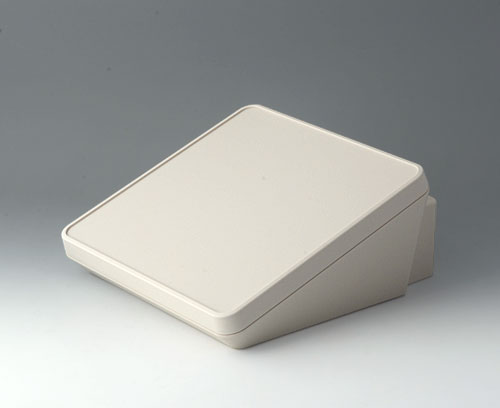

B4422307 PROTEC 220, Vers. III

B4422307

PROTEC 220, Vers. III Modern three piece plastic enclosure with an ergonomically inclined operating panel. The deep cover included in the supply provides additional space in a separate area. Fastening pillars for PCBs and components in the top and bottom parts. Wall suspension element and sealing (to raise the protection class up to IP 65) included in the range of accessories. Hidden stainless steel assembly screws with secure Torx heads. Can also be used outdoors thanks to the high-quality material and the robust design.

Supply Top and bottom parts, deep cover, assembly kit including 4 self-adhesive rubber feet

Chiudi

B4422307

PROTEC 220, Vers. III
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
220x243x108mm
IP 65 opt.
A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0325060 Self-tapping screw 2.5 x 6 mm (T8)

A0325060

Self-tapping screw 2.5 x 6 mm (T8) Self-tapping screw with T8 Torx drive. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0325060

Self-tapping screw 2.5 x 6 mm (T8)
Prodotto aggiunto alla lista
Stainless steel
A0399T08 Torx T8 screwdriver

A0399T08

Torx T8 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T8 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T08

Torx T8 screwdriver
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista
B4514030 Sealing 140

B4514030

Sealing 140

Application: for increasing the protection class, of PROTEC 140. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Chiudi

B4514030

Sealing 140
Prodotto aggiunto alla lista
B4514101 Wall suspension element 140

B4514101

Wall suspension element 140

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Chiudi

B4514101

Wall suspension element 140
Prodotto aggiunto alla lista
Aluminium
B4518030 Sealing 180

B4518030

Sealing 180

Application: for increasing the protection class, of PROTEC 180. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Chiudi

B4518030

Sealing 180
Prodotto aggiunto alla lista
B4518101 Wall suspension element 180

B4518101

Wall suspension element 180

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Chiudi

B4518101

Wall suspension element 180
Prodotto aggiunto alla lista
Aluminium

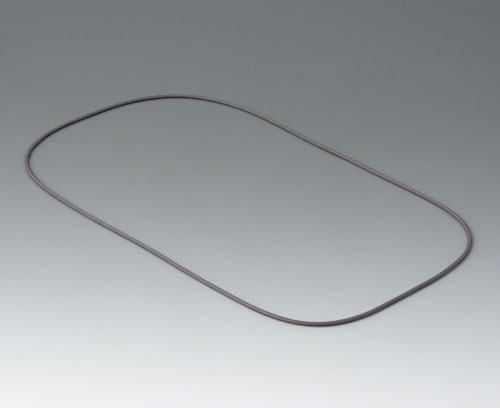

B4522030 Sealing 220

B4522030

Sealing 220

Application: for increasing the protection class, of PROTEC 220. Top part of the enclosure with groove for inserting the seal.

Supply 1 seal

Chiudi

B4522030

Sealing 220
Prodotto aggiunto alla lista

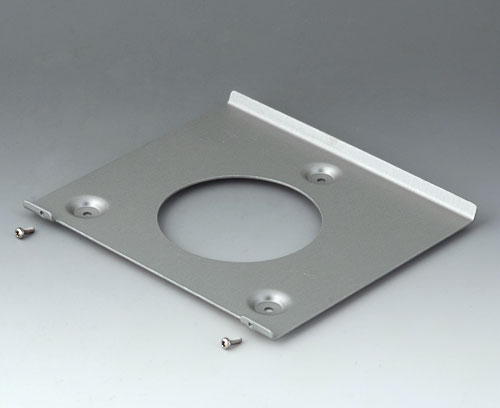

B4522101 Wall suspension element 220

B4522101

Wall suspension element 220

Holder for secure, flush mounting on the wall. The enclosure is screwed to the wall suspension element in the recessed interface area. Advantage: hidden mounting with no visible fixings.

Supply 1 wall suspension element and 2 screws

Chiudi

B4522101

Wall suspension element 220
Prodotto aggiunto alla lista
Aluminium

Opzioni prodotto per Protec

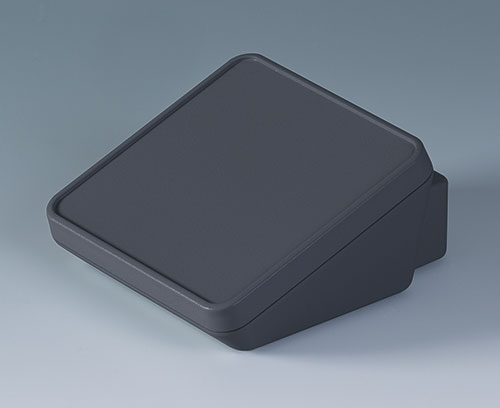

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
