CONNECT

Connect

Un collegamento ottimale

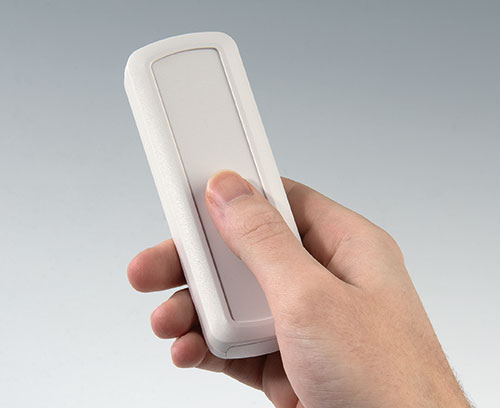

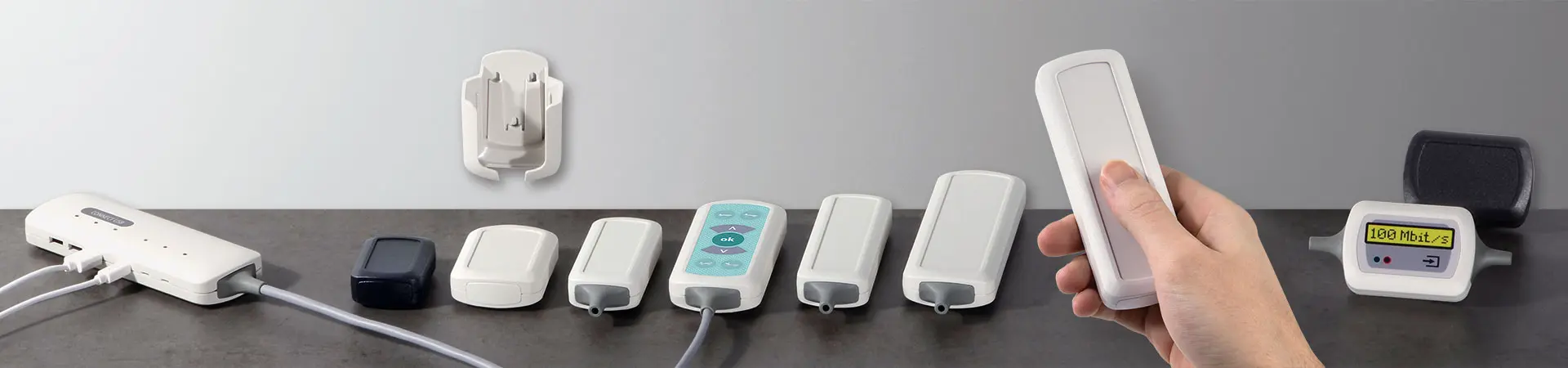

La serie di contenitori CONNECT è predestinata per applicazioni tramite cavo e applicazioni mobili a batteria.

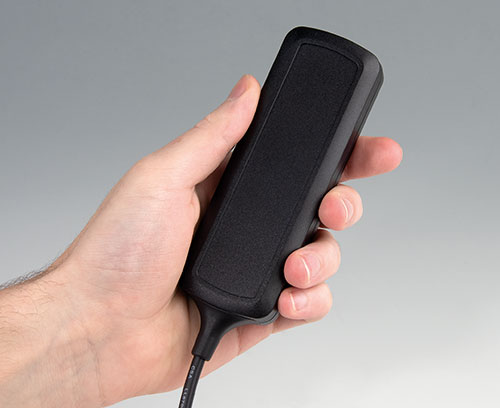

  • Novità: CONNECT S con soli 42 mm di larghezza del contenitore per una presa particolarmente facile, ideale per telecomandi, apparecchi di misura, strumenti di prova o simili oppure come contenitore per interfacce senza/con collegamento di cavi
  • Contenitore a due gusci, uno convesso e uno appiattito con superficie incavata
  • Le due metà del contenitore si inseriscono a pressione l'una nell'altra, senza venire avvitate e con tempi di montaggio più brevi. La parte anteriore dell'apparecchio può essere scelta liberamente.

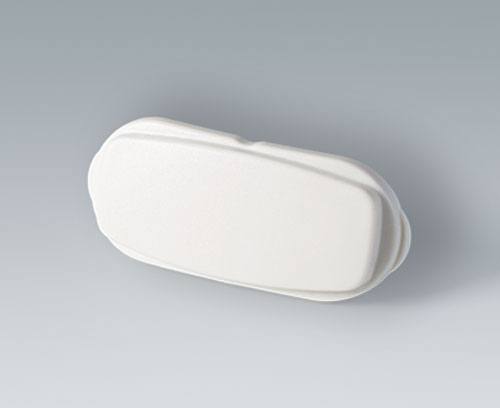

  • Spazi vuoti su entrambe le estremità; per il completamento del contenitore si possono impiegare a scelta unità frontali e/o passacavi

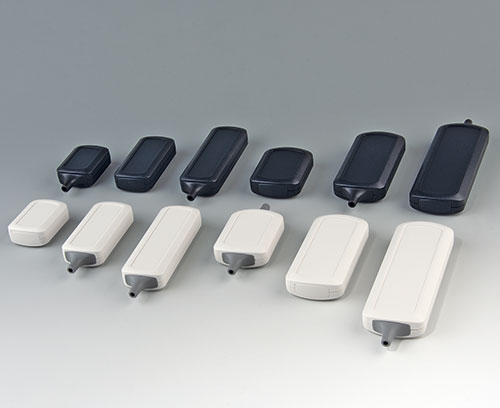

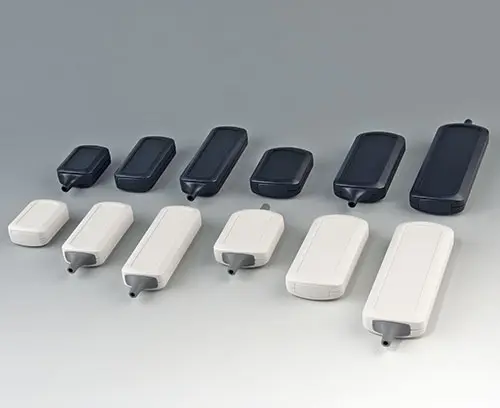

  • Contenitori CONNECT S ed M, ciascuno in tre lunghezze per un adeguamento esatto all’applicazione
  • Guscio del contenitore e unità frontali in materiale V-0 stabilizzato ai raggi UV
  • Grado di protezione IP 40 (con unità frontali)

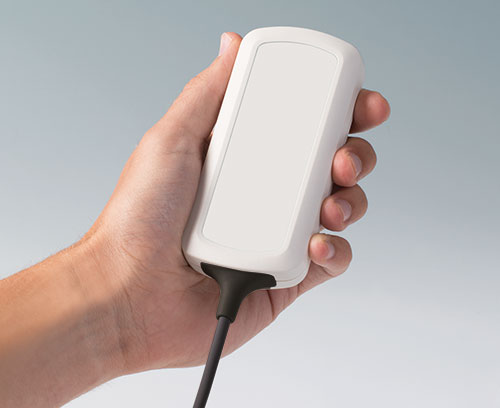

  • Dispositivo antistrappo integrato nel set di passacavi

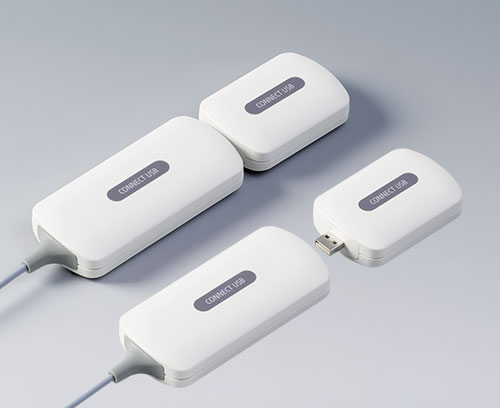

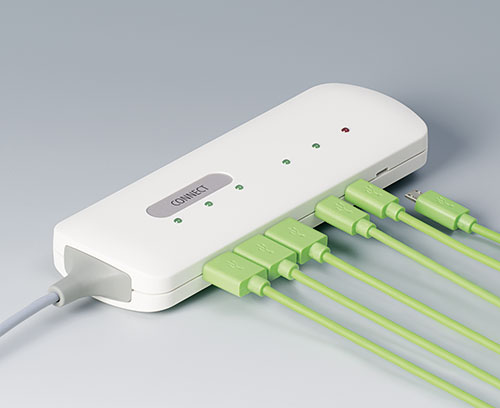

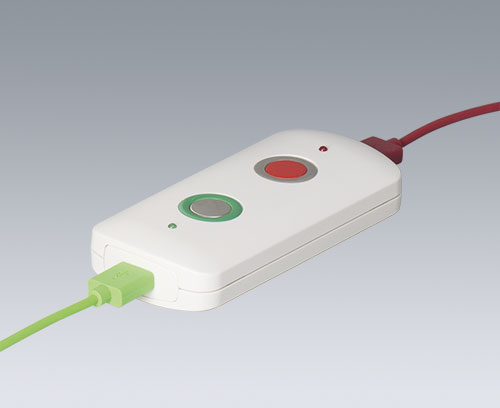

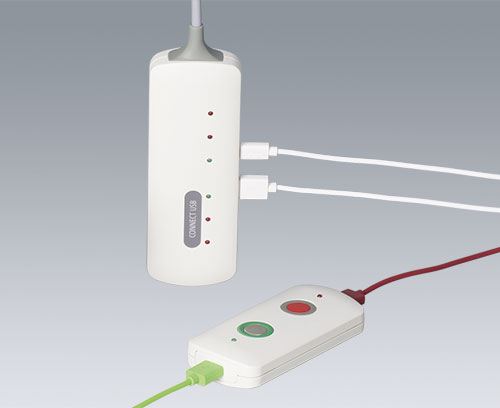

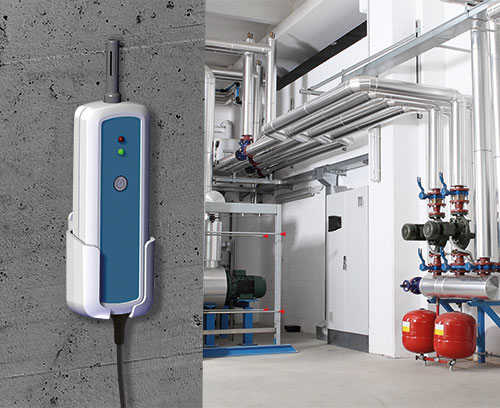

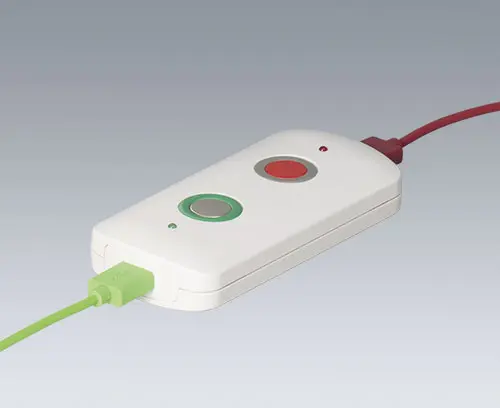

  • Spazio sufficiente per il montaggio di display compatti, LED e connettori USB e sonde di misura

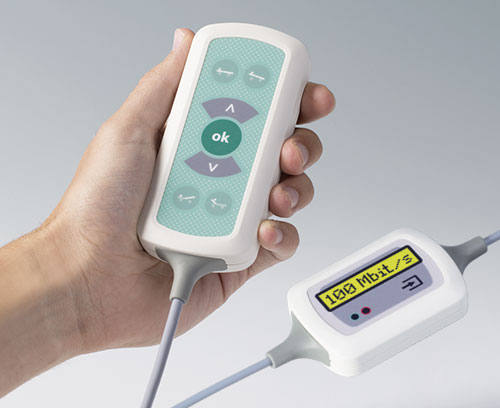

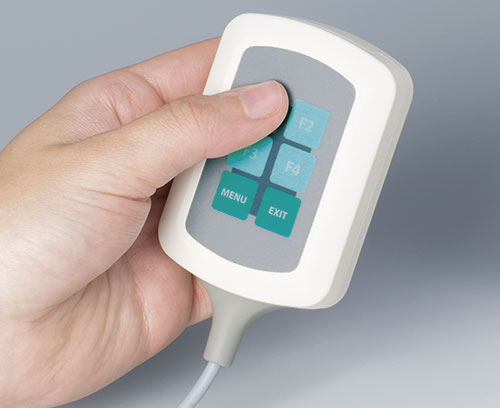

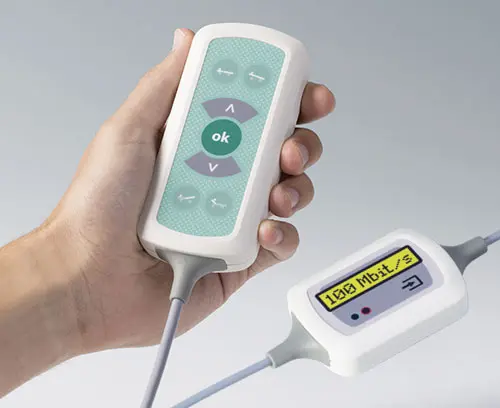

  • Superficie incavata a protezione della tastiera a membrana, della pellicola decorativa o dell'etichetta

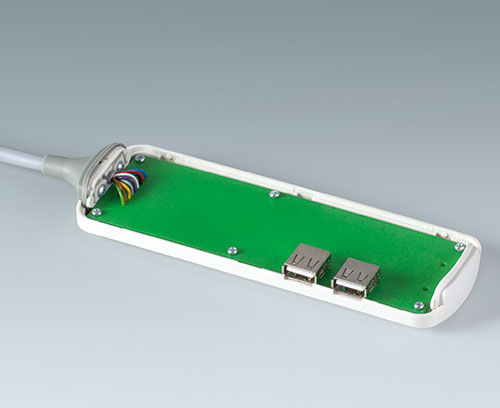

  • Punti di fissaggio per schede e componenti di montaggio nella metà appiattita del contenitore

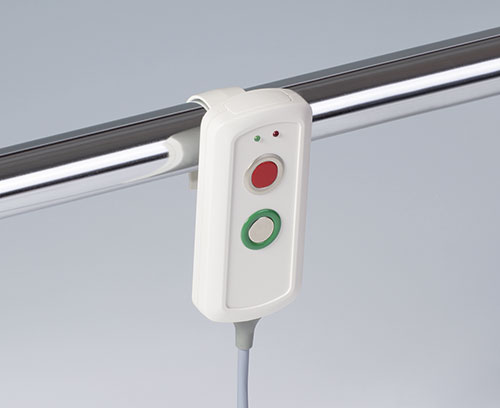

  • Clip di aggancio per tubo tondo fino a ø 32 mm come accessorio (CONNECT S: lunghezza 90/120 mm, CONNECT M: lunghezza 116/156 mm)

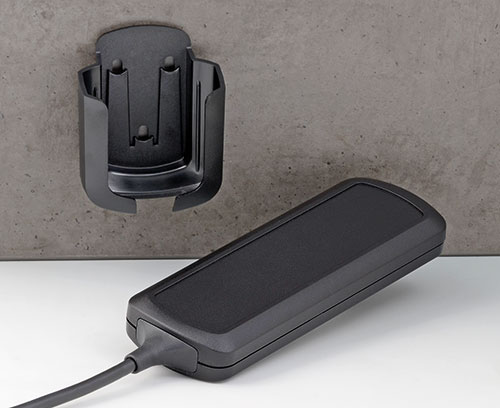

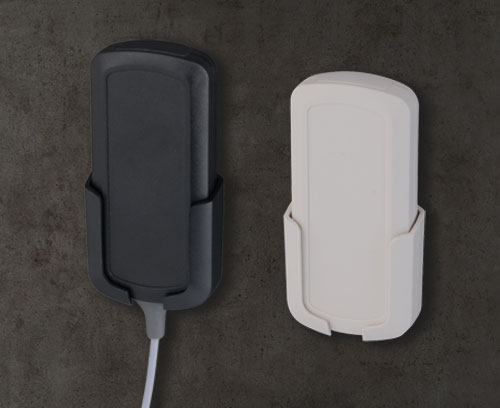

  • Supporto disponibile come accessorio per un fissaggio sicuro alla parete o superfici simili
  • Video
  • Esempi di applicazione

Application fields

  • Periferiche di computer
  • Tecnica di rete
  • Gestione degli impianti tecnici di edifici
  • Sistemi di sicurezza
  • IoT/ IIoT

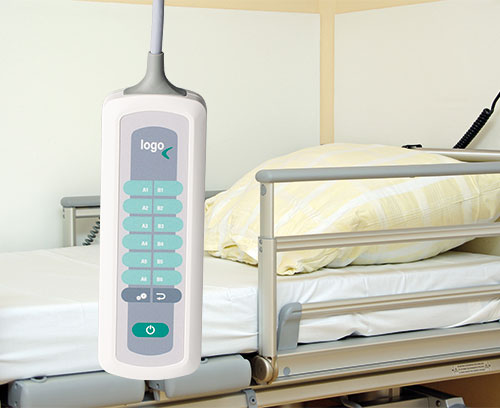

  • Tecnica medicale e applicazioni per terapia
  • Strumenti di analisi per laboratori

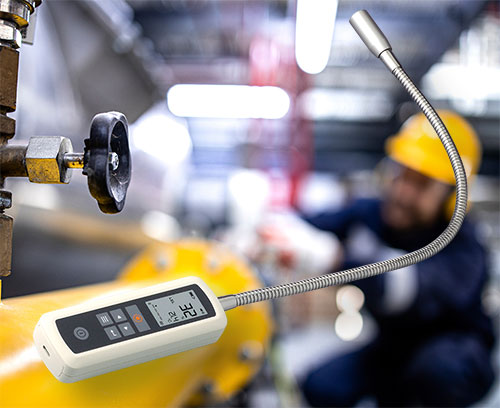

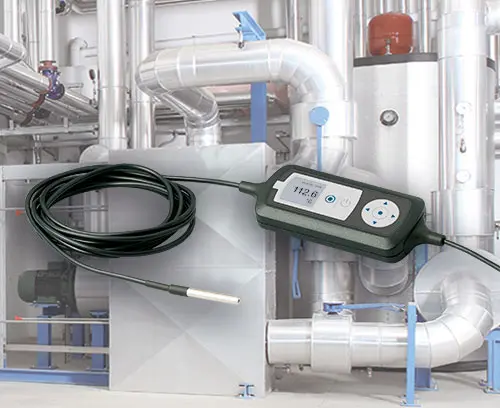

  • Metrologia, ad esempio rilevatori con sonda di misura, sistemi/strumenti di prova
  • Data logger per tecnica ambientale
  • Sensori
  • Seleziona tutti gli articoli
  • Accessori
  • Modifiche specifiche del cliente
B2822107 CONNECT S

B2822107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2822107

CONNECT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
60x42x22mm
B2822109 CONNECT S

B2822109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2822109

CONNECT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005
60x42x22mm
B2823107 CONNECT S

B2823107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2823107

CONNECT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
90x42x22mm
B2823109 CONNECT S

B2823109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2823109

CONNECT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005
90x42x22mm
B2824107 CONNECT S

B2824107

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2824107

CONNECT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
120x42x22mm
B2824109 CONNECT S

B2824109

CONNECT S Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2824109

CONNECT S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005
120x42x22mm
B2832107 CONNECT M

B2832107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2832107

CONNECT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
76x54x22mm
B2832109 CONNECT M

B2832109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2832109

CONNECT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005
76x54x22mm
B2833107 CONNECT M

B2833107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2833107

CONNECT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
116x54x22mm
B2833109 CONNECT M

B2833109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2833109

CONNECT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005
116x54x22mm
B2834107 CONNECT M

B2834107

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2834107

CONNECT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
156x54x22mm
B2834109 CONNECT M

B2834109

CONNECT M Basic enclosure, 2-piece, with convex and flattened shell. Recessed surface to protect the membrane keyboard, decor foil or label. Both end sides open, and end parts or the cable gland kits can optionally be mounted there (accessories). Four attachment domes for mounting a PCB in the flattened shell. Plastic enclosure snaps together.

Supply 1 shell convex and 1 flattened shell with recessed surface

Chiudi

B2834109

CONNECT M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005
156x54x22mm
A0304031 Self-tapping screws 2.2 x 5 mm (PZ1)

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0304031

Self-tapping screws 2.2 x 5 mm (PZ1)
Prodotto aggiunto alla lista
A9167027 Holding clamp

A9167027

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167027

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
off-white RAL 9002

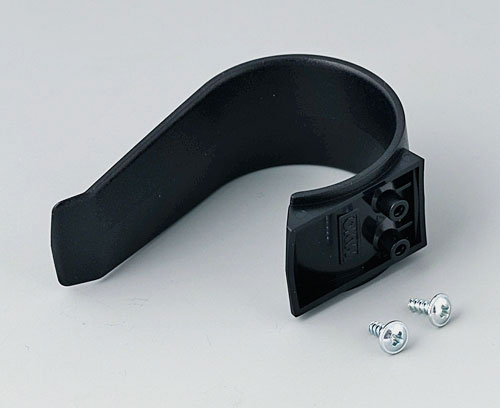

A9167029 Holding clamp

A9167029

Holding clamp Special holding clamp for attaching to tubes up to Ø 32 mm and corresponding suspensions. For fixing the preshaped centres in the bottom part have to be milled or punched.

Supply 1 holding clamp, assembly kit

Chiudi

A9167029

Holding clamp
Prodotto aggiunto alla lista
PA 6 (UL 94 HB)
black RAL 9005

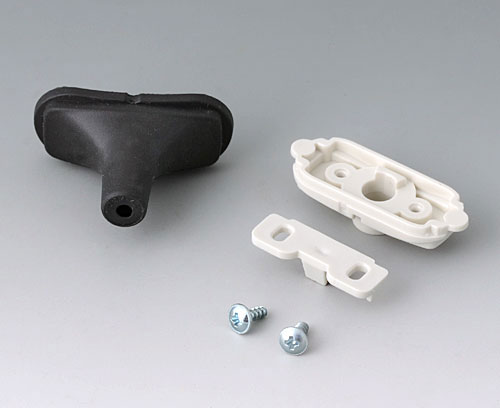

B2911308 Cable gland kit, 3.4 - 4.2

B2911308

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Chiudi

B2911308

Cable gland kit, 3.4 - 4.2
Prodotto aggiunto alla lista
TPE
volcano
B2911309 Cable gland kit, 3.4 - 4.2

B2911309

Cable gland kit, 3.4 - 4.2 For round cable diameter 3.4 - 4.2 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping element.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Chiudi

B2911309

Cable gland kit, 3.4 - 4.2
Prodotto aggiunto alla lista
TPE
black RAL 9005

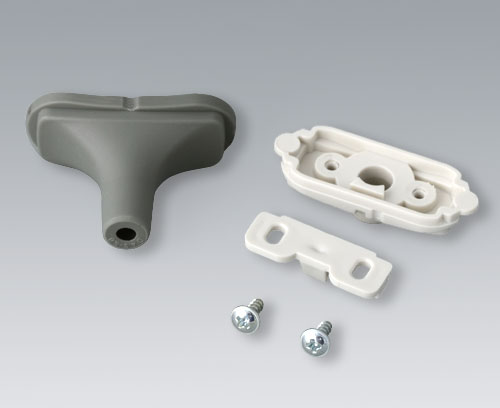

B2911318 Cable gland kit, 4.2 - 5.0

B2911318

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Chiudi

B2911318

Cable gland kit, 4.2 - 5.0
Prodotto aggiunto alla lista
TPE
volcano

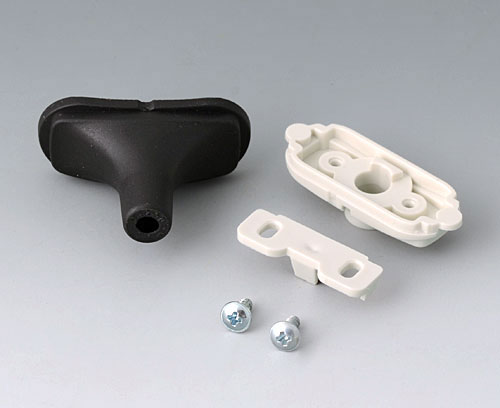

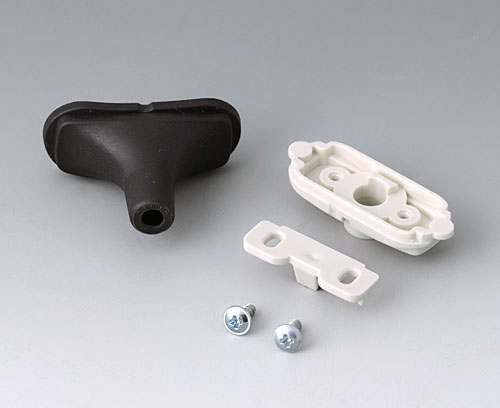

B2911319 Cable gland kit, 4.2 - 5.0

B2911319

Cable gland kit, 4.2 - 5.0 For round cable diameter 4.2 - 5.0 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Chiudi

B2911319

Cable gland kit, 4.2 - 5.0
Prodotto aggiunto alla lista
TPE
black RAL 9005
B2911328 Cable gland kit, 5.0 - 5.9

B2911328

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Chiudi

B2911328

Cable gland kit, 5.0 - 5.9
Prodotto aggiunto alla lista
TPE
volcano
B2911329 Cable gland kit, 5.0 - 5.9

B2911329

Cable gland kit, 5.0 - 5.9 For round cable diameter 5.0 - 5.9 mm. The resilient grommet serves as kink protection and is stabilised by the fixing element in the enclosure. Integrated strain relief with screwed clamping plate.

Supply Elastic cable gland, fixing element, clamping plate, 2 selftapping screws

Chiudi

B2911329

Cable gland kit, 5.0 - 5.9
Prodotto aggiunto alla lista
TPE
black RAL 9005
B2921507 Holder S

B2921507

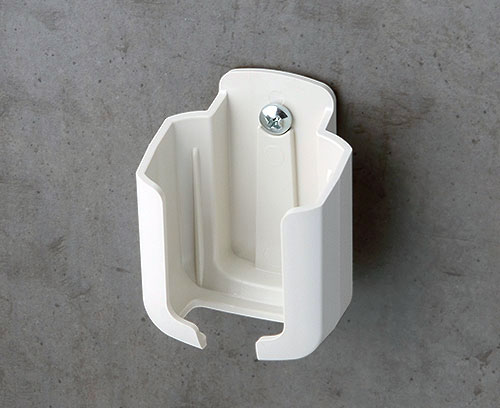

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Chiudi

B2921507

Holder S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002

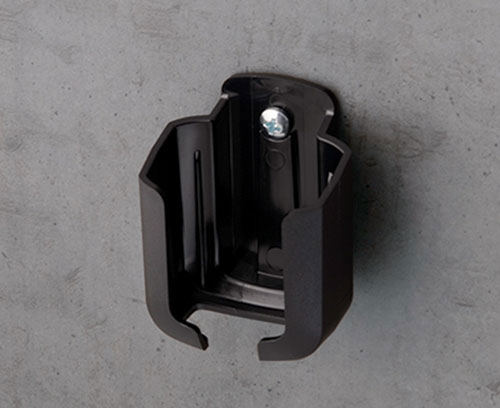

B2921509 Holder S

B2921509

Holder S Special holder for CONNECT S for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Chiudi

B2921509

Holder S
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005

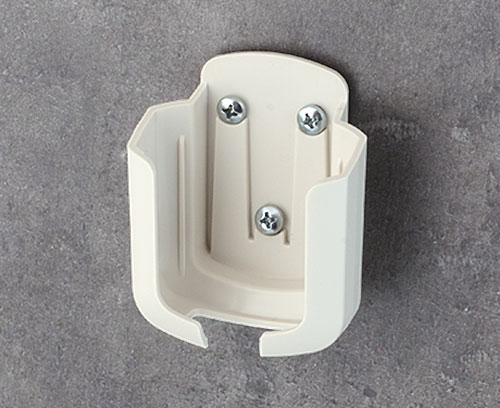

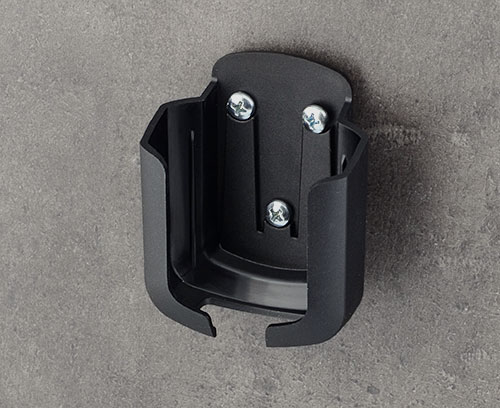

B2931507 Holder M

B2931507

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Chiudi

B2931507

Holder M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
off-white RAL 9002
B2931509 Holder M

B2931509

Holder M Special holder for CONNECT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 5.5 to 7 mm.

Supply 1 holder

Chiudi

B2931509

Holder M
Prodotto aggiunto alla lista
ASA+PC (UL 94 V-0)
black RAL 9005

Opzioni prodotto per Connect

Che caratteristiche deve avere il vostro prodotto personalizzato? Su richiesta vi forniamo i contenitori e manopole pronti per il montaggio e con tutte le modifiche e le caratteristiche specifiche.
