A9413648 SHELL-TYPE CASES V 190, Vers. V

A9413648

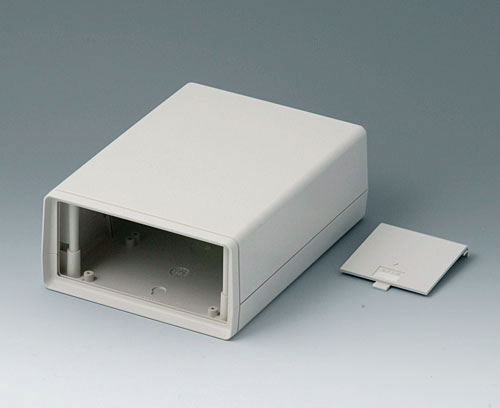

SHELL-TYPE CASES V 190, Vers. V

Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version

With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply

1 top and base part, battery compartment lid, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory to complete

A9113123 Front / rear panel V, O 190

A9113123

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply 1 front panel

Chiudi

A9113123

Front / rear panel V, O 190
Prodotto aggiunto alla lista
Acrylic glass
red transparent
124,2x56,6x1,5mm
A9114121 Front / rear panel V, O 190

A9114121

Front / rear panel V, O 190 Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply 1 front panel

Chiudi

A9114121

Front / rear panel V, O 190
Prodotto aggiunto alla lista
Aluminium
matt anodised
124,2x56,6x1,5mm

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V (PP3)

A9160003

Plug-in contact, 1 x 9 V (PP3) Version: Lateral cable exit. Cable length approx. 100 mm. Diameter of contacts = 5.7/5.3 mm.
Application: for a 9 V flat battery (PP3).

Supply 1 plug-in contact

Chiudi

A9160003

Plug-in contact, 1 x 9 V (PP3)
Prodotto aggiunto alla lista
A9190013 Set of battery clips, 4 x AA

A9190013

Set of battery clips, 4 x AA For contacting the batteries. Comply with DIN EN 60601. The modified geometry rules out the possibility of a short circuit when inserting the batteries incorrectly.

Supply 1 double contacts right, 2 double contact left, 1 single contact positive, 1 single contact negative

Chiudi

A9190013

Set of battery clips, 4 x AA
Prodotto aggiunto alla lista
Steel
nickel-plated
A9250250 Battery spacer

A9250250

Battery spacer The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply 1 spacer

Chiudi

A9250250

Battery spacer
Prodotto aggiunto alla lista
PE foam
50x25x4mm

Accessory "protection"

A9113150 Contact-strips V, O, G 190

A9113150

Contact-strips V, O, G 190 Provide additional electrical continuity between the top and base shells of shielded cases (order two pieces, one for each side).

Supply 1 contact-strip

Chiudi

A9113150

Contact-strips V, O, G 190
Prodotto aggiunto alla lista
Aluminium

Accessory "screws"

A0306031 Self-tapping screws 3 x 6 mm (PZ1)

A0306031

Self-tapping screws 3 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0306031

Self-tapping screws 3 x 6 mm (PZ1)
Prodotto aggiunto alla lista

Accessory

A9210290 Anti-slide feet 9.5 x 3.8 mm

A9210290

Anti-slide feet 9.5 x 3.8 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9210290

Anti-slide feet 9.5 x 3.8 mm
Prodotto aggiunto alla lista
transparent

Customising options for A9413648

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
off-white RAL 9002
Width
138 mm
Depth
190 mm
Height
68 mm
PCB length, base
114 mm
PCB width, base
118 mm
PCB length, top
173 mm
PCB width, top
118 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 2.304 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
294 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
