A9114121 Front / rear panel V, O 190

A9114121

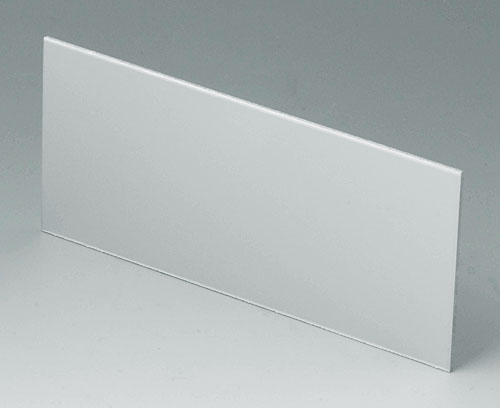

Front / rear panel V, O 190

Front panel for SHELL-TYPE CASE V and O. For case A941334.

Supply

1 front panel

  • Usato per
  • Modifiche specifiche del cliente
A9413340 SHELL-TYPE CASES O 190, Vers. I

A9413340

SHELL-TYPE CASES O 190, Vers. I Two-part plastic case with open front and open rear. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9413340

SHELL-TYPE CASES O 190, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
138x190x68mm
A9413343 SHELL-TYPE CASES V 190, Vers. I

A9413343

SHELL-TYPE CASES V 190, Vers. I Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version Without battery compartment

Supply 1 top and base part, assembly kit

Chiudi

A9413343

SHELL-TYPE CASES V 190, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
138x190x68mm
A9413648 SHELL-TYPE CASES V 190, Vers. V

A9413648

SHELL-TYPE CASES V 190, Vers. V Two-part plastic case with open front. Front panel (as accessory) can be inserted into the front guide grooves. Guide ridges and fastening pillars for mounting of PCBs in top and base.

Version With battery compartment for 4 x 1.5 V mignon cells (AA) or 2 x 9 V flat batteries (PP3)

Supply 1 top and base part, battery compartment lid, assembly kit

Chiudi

A9413648

SHELL-TYPE CASES V 190, Vers. V
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
138x190x68mm

Customising options for A9114121

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
Colore
matt anodised
Width
124,2 mm
Height
56,6 mm
Thickness
1,5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
28 g
Customs tariff number
(OKW product)
76069200
Country of manufacture
Germany
