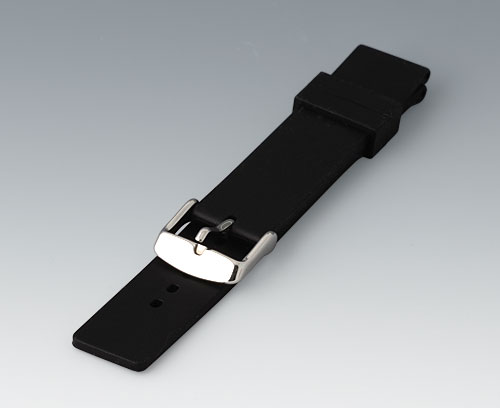

B1706202 Wrist strap, 18 mm

B1706202

Wrist strap, 18 mm

Special wrist strap made of silicone for BODY-CASE: elastic, waterproof and comfortable to wear. The smooth surface is also easy to clean. Spring bar width 18 mm. Total length without buckle approx. 193 mm. Buckle made of stainless steel. Fastening with spring bars.

Please note:
The Ø 1.5 x 18 mm spring bars supplied with the enclosure may come loose under torsional stress when used with the silicone wrist strap B1706202. For a better connection, we therefore recommend spring bars measuring Ø 1.5 x 19 mm.
OKW Part No: B1706206
Please determine the relevant suitability for use by carrying out your own tests.

Supply

1 wrist strap

  • Componenti adatti

System components to complete

B1604107 BODY-CASE M, without recess

B1604107

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1604107

BODY-CASE M, without recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
50x41x15mm
IP 65
B1604117 BODY-CASE M, without recess

B1604117

BODY-CASE M, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1604117

BODY-CASE M, without recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
50x41x15mm
IP 65
B1604207 BODY-CASE M, with recess

B1604207

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1604207

BODY-CASE M, with recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
50x41x14mm
IP 65
B1604217 BODY-CASE M, with recess

B1604217

BODY-CASE M, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1604217

BODY-CASE M, with recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
50x41x14mm
IP 65
B1606107 BODY-CASE L, without recess

B1606107

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1606107

BODY-CASE L, without recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65
B1606117 BODY-CASE L, without recess

B1606117

BODY-CASE L, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1606117

BODY-CASE L, without recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
55x46x17mm
IP 65
B1606207 BODY-CASE L, with recess

B1606207

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1606207

BODY-CASE L, with recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
55x46x16mm
IP 65
B1606217 BODY-CASE L, with recess

B1606217

BODY-CASE L, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1606217

BODY-CASE L, with recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
55x46x16mm
IP 65
B1608107 BODY-CASE XL, without recess

B1608107

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1608107

BODY-CASE XL, without recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
62x56x18mm
IP 65
B1608117 BODY-CASE XL, without recess

B1608117

BODY-CASE XL, without recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version Without recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1608117

BODY-CASE XL, without recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
62x56x18mm
IP 65
B1608207 BODY-CASE XL, with recess

B1608207

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1608207

BODY-CASE XL, with recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
62x56x17mm
IP 65
B1608217 BODY-CASE XL, with recess

B1608217

BODY-CASE XL, with recess Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Recessed area in top for locating a membrane keyboard or decor foil. Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version With recess

Supply Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

Chiudi

B1608217

BODY-CASE XL, with recess
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
62x56x17mm
IP 65

Accessory to complete

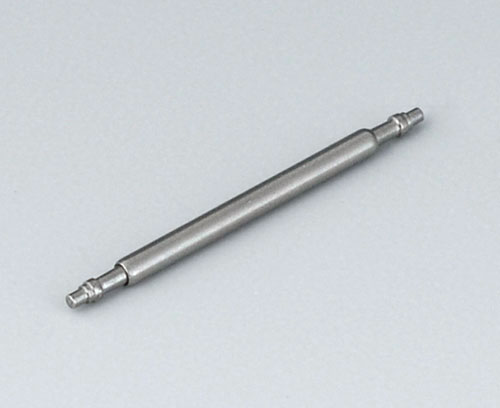

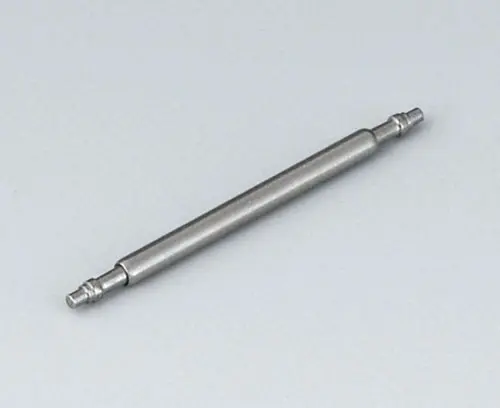

B1706206 Spring bar, Ø 1.5 x 19 mm

B1706206

Spring bar, Ø 1.5 x 19 mm

Please note: We would like to point out that B1706206 spring bars are only intended for use with the combination of the BODY-CASE enclosure and the silicone wrist strap.

However, the use of these spring bars with the B1706001 fastening kit is not recommended. Please use the spring bars supplied with the enclosures for this purpose, as otherwise the plastic parts may be damaged.

Supply 1 spring bar

Chiudi

B1706206

Spring bar, Ø 1.5 x 19 mm
Prodotto aggiunto alla lista
Stainless steel
  • Dati tecnici
  • Purchasing Data
Materiale
Colore
black
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
16 g
Customs tariff number
(OKW product)
91139000
Country of manufacture
China
