B1606117 BODY-CASE L, without recess

B1606117

BODY-CASE L, without recess

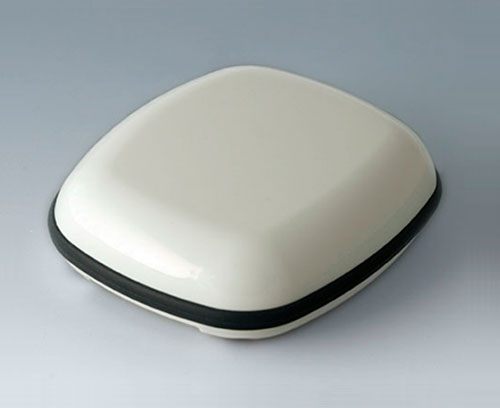

Modern small enclosure specifically designed for "wearable technologies". Three-part design consisting of highly polished top and bottom parts and a matt TPV sealing ring.
Location bars for a PCB are provided in the top part; after assembly of the enclosure the PCB is then held securely between the top and bottom parts. Internal power supply with round or button cells on the PCB, or alternatively, the use of a rechargeable battery with charging coil for charging the device inductively.
Wrist strap, fastening kit etc. as accessories.

Note
For this individual product, options shown in the tab "view customising options" only apply to modifications of the top and bottom parts of the enclosure. Modifications of the TPV sealing ring are not possible.

Version

Without recess

Supply

Top and bottom parts, sealing ring, 4 M2 x 6 mm enclosure screws (T6), 2 spring bars (18 mm)

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "station"

B1706017 Station L

B1706017

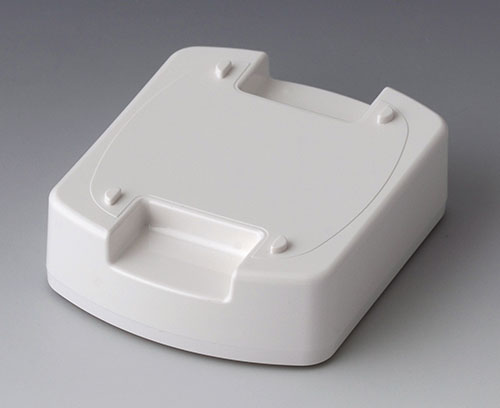

Station L For storing BODY-CASE L when not in use, and for fitting electronics, in particular for inductive charging of the device. Guides in the top part allow the enclosure to be easily located into position. On request, the stations can be mounted in series, for example as a charging console.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply Top part, bottom panel, assembly kit

Chiudi

B1706017

Station L
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm
B1706807 Station L (Mountable)

B1706807

Station L (Mountable) Station top part only, for mounting individually or in series on a table stand, equipment housing or the like. Used as a storage or charging cradle for BODY-CASE L when it is not in use. For example, inductive charging electronics can be fitted inside. Guides in the top allow the enclosure to be easily located into position. An accessory seal (B1706003) is available for IP 54 protection class. Download the drawing for the mounting cut-out details.

Exception: enclosure with belt / pocket clip. Inductive charging is not possible here.

Supply 1 top part

Chiudi

B1706807

Station L (Mountable)
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
62x50x17mm

Accessory "carrying"

A9164001 Key ring

A9164001

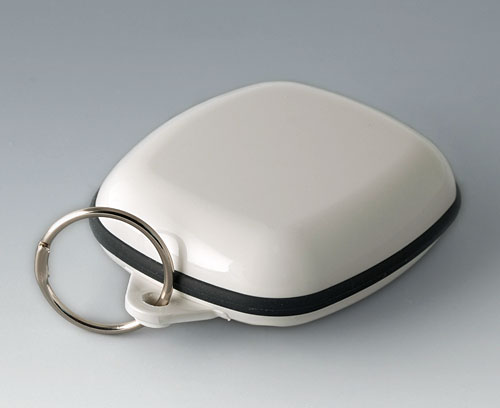

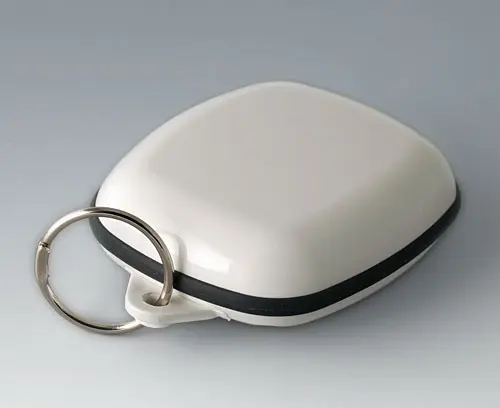

Key ring Version: diameter = 20.5 mm.

Supply 1 key ring

Chiudi

A9164001

Key ring
Prodotto aggiunto alla lista
Steel
nickel-plated
20,5mm
B1706001 Eyelet / pocket clip kit

B1706001

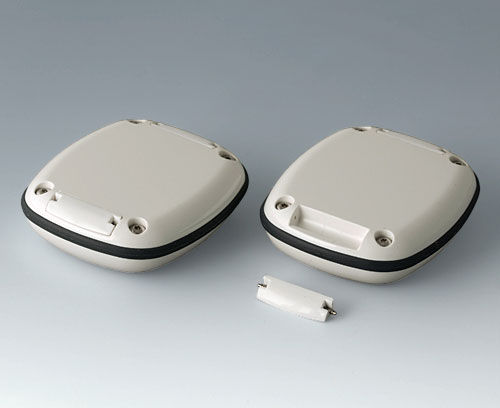

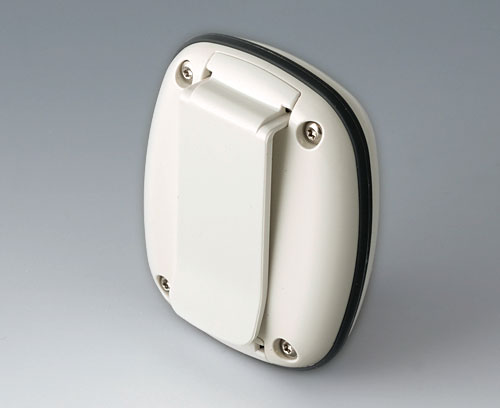

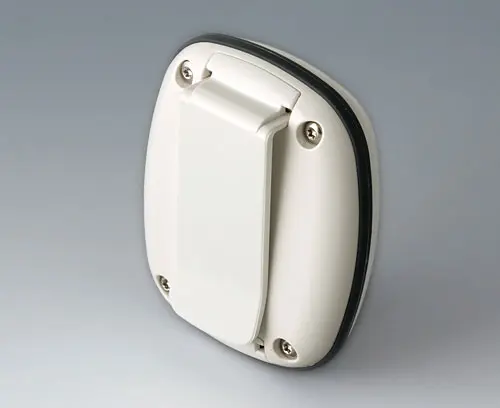

Eyelet / pocket clip kit Special accessories for BODY-CASE. Kit consisting of 1 pocket clip for shirt or trouser pocket, 1 fastening eyelet for lanyard/chain/cord as well as 2 covers for closing one or both rear wrist strap attachments if required. Fastening with spring bars (supplied with the enclosures).

Supply 1 kit

Chiudi

B1706001

Eyelet / pocket clip kit
Prodotto aggiunto alla lista
ASA (UL 94 HB)
traffic white RAL 9016
B1706202 Wrist strap, 18 mm

B1706202

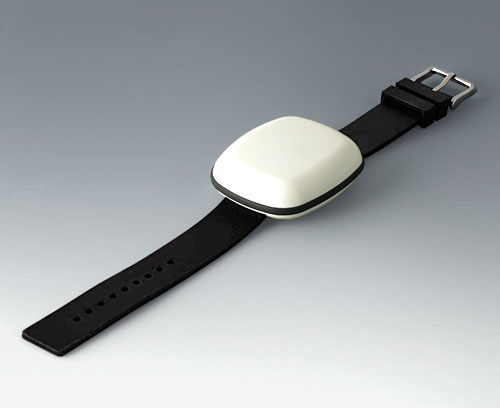

Wrist strap, 18 mm Special wrist strap made of silicone for BODY-CASE: elastic, waterproof and comfortable to wear. The smooth surface is also easy to clean. Spring bar width 18 mm. Total length without buckle approx. 193 mm. Buckle made of stainless steel. Fastening with spring bars.

Please note:
The Ø 1.5 x 18 mm spring bars supplied with the enclosure may come loose under torsional stress when used with the silicone wrist strap B1706202. For a better connection, we therefore recommend spring bars measuring Ø 1.5 x 19 mm.
OKW Part No: B1706206
Please determine the relevant suitability for use by carrying out your own tests.

Supply 1 wrist strap

Chiudi

B1706202

Wrist strap, 18 mm
Prodotto aggiunto alla lista
Silicone
black
B1706203 Spring bar tool

B1706203

Spring bar tool Tool with "fork-shaped" end for the easy insertion and removal of the spring bars of the wrist strap, belt / pocket clip, eyelet and covers. Pointed end suitable as an instrument for pushing out pins in metal wrist straps with flexible chain links, or in buckles. (The original part may differ from the part shown in the picture.)

Supply 1 Spring bar tool

Chiudi

B1706203

Spring bar tool
Prodotto aggiunto alla lista
Stainless steel
B9100063 Carrying strap, textile lanyard

B9100063

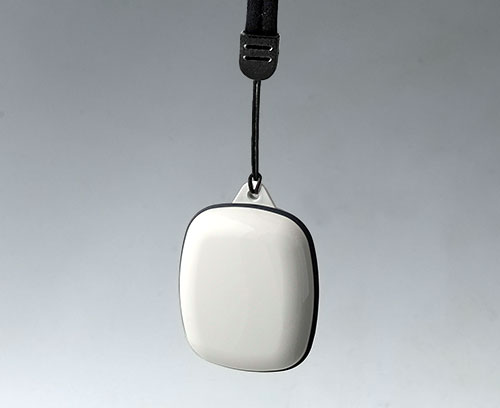

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Chiudi

B9100063

Carrying strap, textile lanyard
Prodotto aggiunto alla lista
black
860mm

Accessory "screws"

A0399T06 Torx T6 screwdriver

A0399T06

Torx T6 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T6 type screws. (The original part may differ from the part shown in the picture.)

Supply 1 T6 screwdriver

Chiudi

A0399T06

Torx T6 screwdriver
Prodotto aggiunto alla lista

Customising options for B1606117

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
ASA (UL 94 HB)
Bottom and top part
TPV 50A
Sealing ring
Protection class
Colore
Bottom and top part traffic white RAL 9016,
Sealing ring lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
55 mm
Width
46 mm
Height
17 mm
PCB length, base
39,6 mm
PCB width, base
38 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 716 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
12 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
