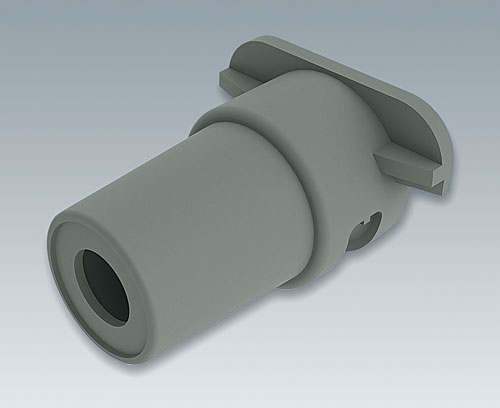

B2610101 Cable strain, 5.0 - 5.9

B2610101

Cable strain, 5.0 - 5.9

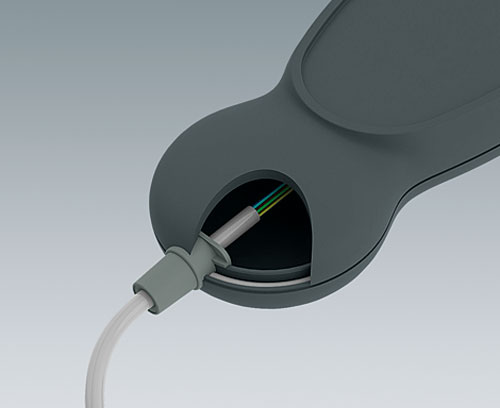

For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version

For cables Ø 5.0 - 5.9 mm

Supply

1 cable bushing

  • Usato per
B2510107 BLOB UNIT

B2510107

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Chiudi

B2510107

BLOB UNIT
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
130x60x30mm
IP 54 opt.
B2510108 BLOB UNIT

B2510108

BLOB UNIT A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Chiudi

B2510108

BLOB UNIT
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
130x60x30mm
IP 54 opt.
B2512107 BLOB CONTROL

B2512107

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Chiudi

B2512107

BLOB CONTROL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
114x76x31mm
IP 54 opt.
B2512108 BLOB CONTROL

B2512108

BLOB CONTROL An enclosure that can be held with one hand and operated with the second hand. Two-part enclosure design. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Chiudi

B2512108

BLOB CONTROL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
114x76x31mm
IP 54 opt.
B2514107 BLOB PANEL

B2514107

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Chiudi

B2514107

BLOB PANEL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
200x165x36mm
IP 54 opt.
B2514108 BLOB PANEL

B2514108

BLOB PANEL An enclosure that can be held and operated with two hands. Two-part enclosure design with symmetrically positioned gripping areas. Recessed surface for membrane keyboards. Separate recess for special functions. Attachment domes for a PCB in the top part.

Supply Top and bottom parts, assembly kit

Chiudi

B2514108

BLOB PANEL
Prodotto aggiunto alla lista
ABS (UL 94 HB)
lava
200x165x36mm
IP 54 opt.
  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Materiale
TPE
Cable gland
Colore
volcano
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 205 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
