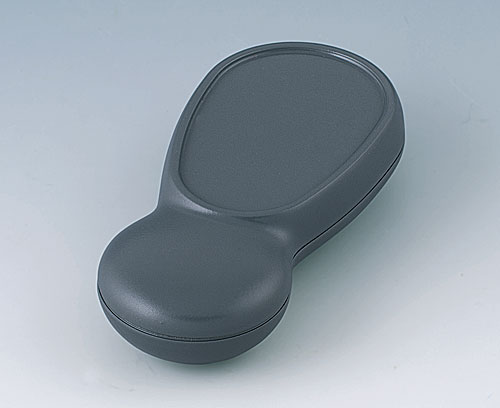

B2510108 BLOB UNIT

B2510108

BLOB UNIT

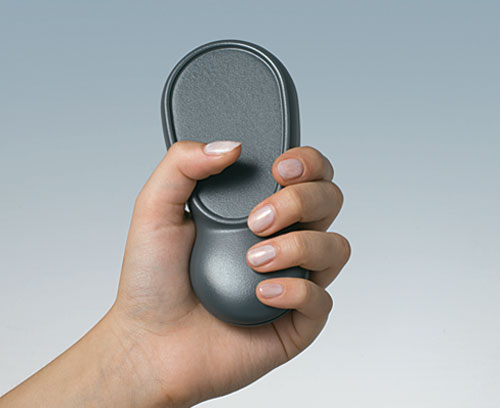

A genuine hand held enclosure that can be held and operated with one hand. Two-part enclosure design. Recessed surface for membrane keyboards. Attachment domes for a PCB in the top part.

Supply

Top and bottom parts, assembly kit

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "battery"

A9193034 Polarity reversal protection device, positive terminal AAA

A9193034

Polarity reversal protection device, positive terminal AAA For AAA round cell battery clip. Easy to push on. Prevents contact if the battery is inserted incorrectly. 1 pc required per round cell.

Supply Polarity reversal protection device

Chiudi

A9193034

Polarity reversal protection device, positive terminal AAA
Prodotto aggiunto alla lista
ABS (UL 94 HB)
off-white RAL 9002
A9193036 Battery clip, AAA

A9193036

Battery clip, AAA For AAA round cells. For installation on PCBs. 2 pcs required per round cell.

Supply 1 battery clip

Chiudi

A9193036

Battery clip, AAA
Prodotto aggiunto alla lista
Steel
nickel-plated
A9193037 Button cell holder, Ø 20 mm

A9193037

Button cell holder, Ø 20 mm For button cells with Ø 20 mm, e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Chiudi

A9193037

Button cell holder, Ø 20 mm
Prodotto aggiunto alla lista
A9193038 Button cell holder, Ø 23 mm

A9193038

Button cell holder, Ø 23 mm For button cells with Ø 23 mm, e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Chiudi

A9193038

Button cell holder, Ø 23 mm
Prodotto aggiunto alla lista
A9193039 Button cell holder, Ø 12 mm

A9193039

Button cell holder, Ø 12 mm For button cells with Ø 12 mm, e.g. CR1216, CR1220. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Chiudi

A9193039

Button cell holder, Ø 12 mm
Prodotto aggiunto alla lista
A9193040 Button cell holder, Ø 16 mm

A9193040

Button cell holder, Ø 16 mm For button cells with Ø 16 mm, e.g. CR1612, CR1620. For installation on PCBs.

Version Horizontal

Supply 1 button cell holder

Chiudi

A9193040

Button cell holder, Ø 16 mm
Prodotto aggiunto alla lista

Accessory "protection"

B2610001 Sealing Unit

B2610001

Sealing Unit Application: for increasing the protection class, of BLOB UNIT.

Supply 1 sealing

Chiudi

B2610001

Sealing Unit
Prodotto aggiunto alla lista
B2610101 Cable strain, 5.0 - 5.9

B2610101

Cable strain, 5.0 - 5.9 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 5.0 - 5.9 mm

Supply 1 cable bushing

Chiudi

B2610101

Cable strain, 5.0 - 5.9
Prodotto aggiunto alla lista
TPE
volcano
B2610111 Cable strain, 4.2 - 5.0

B2610111

Cable strain, 4.2 - 5.0 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 4.2 - 5.0 mm

Supply 1 cable bushing

Chiudi

B2610111

Cable strain, 4.2 - 5.0
Prodotto aggiunto alla lista
TPE
volcano
B2610121 Cable strain, 3.4 - 4.2

B2610121

Cable strain, 3.4 - 4.2 For universal use. The push-on cable gland forms an attractive connection with cable-linked applications. Cylindrical hole required.

Version For cables Ø 3.4 - 4.2 mm

Supply 1 cable bushing

Chiudi

B2610121

Cable strain, 3.4 - 4.2
Prodotto aggiunto alla lista
TPE
volcano

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Chiudi

A0399T10

Torx T10 screwdriver
Prodotto aggiunto alla lista

Customising options for B2510108

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Protection class
IP 54 opt.
Necessary accessories: sealing
Colore
lava
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
130 mm
Width
60 mm
Height
30 mm
PCB length, top
116 mm
PCB width, top
48 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 549 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
50 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
