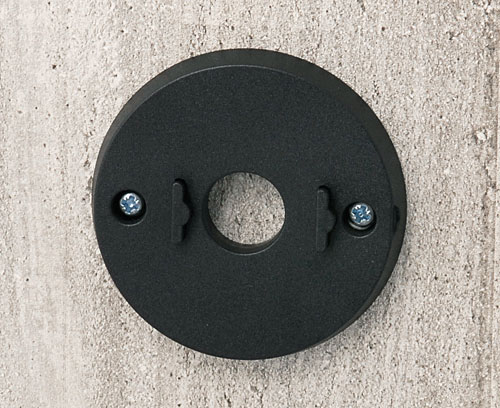

B5111309 Wall mounting set

B5111309

Wall mounting set

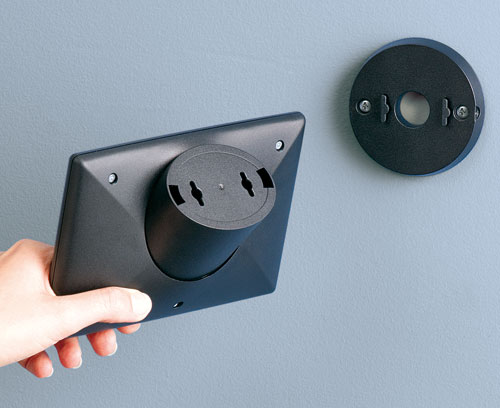

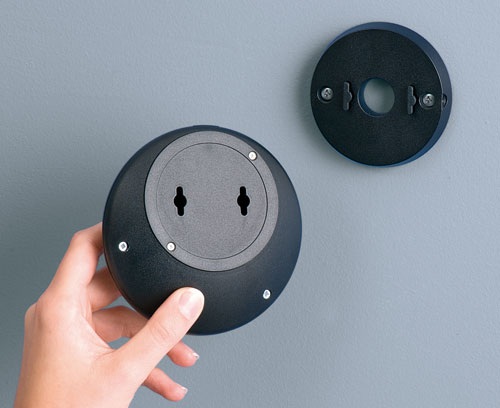

Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).

Supply

Wall mounting set, incl. safety screws

  • Usato per
  • Modifiche specifiche del cliente
B5010009 Bottom and top part R110F

B5010009

Bottom and top part R110F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Chiudi

B5010009

Bottom and top part R110F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
⌀110x30mm
B5010109 Bottom and top part R110 H

B5010109

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Chiudi

B5010109

Bottom and top part R110 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
⌀110x38mm
B5010209 Bottom and top part R110 F

B5010209

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Chiudi

B5010209

Bottom and top part R110 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
⌀110x38mm
B5010309 Bottom and top part R110 H

B5010309

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Chiudi

B5010309

Bottom and top part R110 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
⌀110x41mm
B5011119 Base

B5011119

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Chiudi

B5011119

Base
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
B5011219 Base 30°

B5011219

Base 30° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 30°

Chiudi

B5011219

Base 30°
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
B5011319 Base 55°

B5011319

Base 55° Assembly unit: suitable for all "inclined" bottom parts for ergonomically installation and assembly angles. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.).

Supply 1 base 55°

Chiudi

B5011319

Base 55°
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
B5011849 Lid

B5011849

Lid Assembly unit: suitable for all bottom parts, screw-down (not suitable for use with battery compartment).

Supply 1 lid, assembly kit

Chiudi

B5011849

Lid
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
B5011859 Battery compartment lid

B5011859

Battery compartment lid Assembly unit: suitable for all bottom parts when using battery compartment 2 x AAA (acc.), screw-down.

Supply 1 battery compartment lid, assembly kit

Chiudi

B5011859

Battery compartment lid
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
B5012209 Bottom and top part S110 F

B5012209

Bottom and top part S110 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Chiudi

B5012209

Bottom and top part S110 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
110x110x38mm
B5015009 Bottom and top part O160 F

B5015009

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Chiudi

B5015009

Bottom and top part O160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
160x110x30mm
B5015109 Bottom and top part O160 H

B5015109

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Chiudi

B5015109

Bottom and top part O160 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
160x110x38mm
B5015209 Bottom and top part O160 F

B5015209

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Chiudi

B5015209

Bottom and top part O160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
160x110x38mm
B5015309 Bottom and top part O160 H

B5015309

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Chiudi

B5015309

Bottom and top part O160 H
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
160x110x41mm
B5017209 Bottom and top part E160 F

B5017209

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Chiudi

B5017209

Bottom and top part E160 F
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
160x110x38mm

Customising options for B5111309

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Purchasing Data
Colore
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
