Componenti minimi
1 parte inferiore e superiore R110.
1 coperchio / coperchio vano batterie / base / base 30° o base 55° (a seconda della versione della parte inferiore e dell'inserto vano batterie).
System components to complete
B5010009
Bottom and top part R110F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 F, assembly kit
Chiudi
Bottom and top part R110F
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x30mm
B5010109
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part R110 H, assembly kit
Chiudi
Bottom and top part R110 H
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x38mm

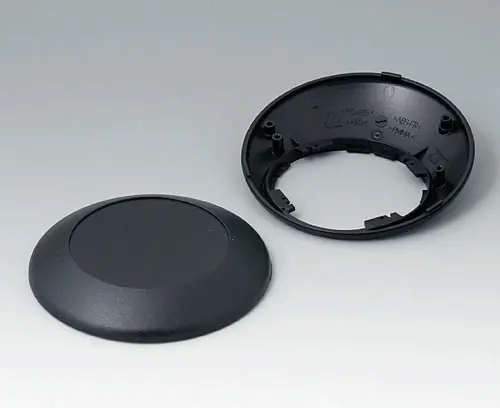

B5010209
Bottom and top part R110 F
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 F, assembly kit
Chiudi
Bottom and top part R110 F
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x38mm

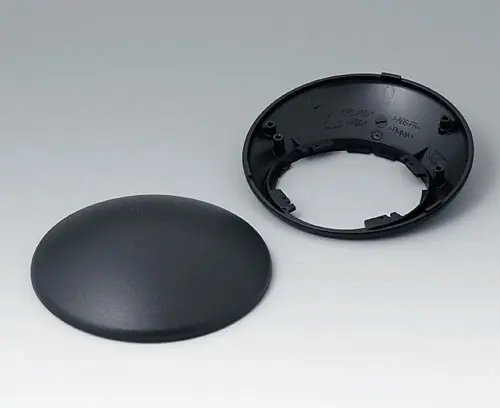

B5010309
Bottom and top part R110 H
Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part R110 H, assembly kit
Chiudi
Bottom and top part R110 H
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
⌀110x41mm
Accessory "battery"
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Supply
1 double contact, 2 single contacts
Chiudi
Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated
Accessory "protection"
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply
1 strain relief device, 2 screws
Chiudi
Strain relief
Prodotto aggiunto alla lista
PA 6
volcano
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Chiudi
Anti-rotation device
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Chiudi
Wall mounting set
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Chiudi
Set of screws
Prodotto aggiunto alla lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Chiudi
Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
Componenti minimi
1 parte inferiore e superiore S110.
1 coperchio / coperchio vano batterie / base / base 30° o base 55° (a seconda della versione della parte inferiore e dell'inserto vano batterie).
System components to complete

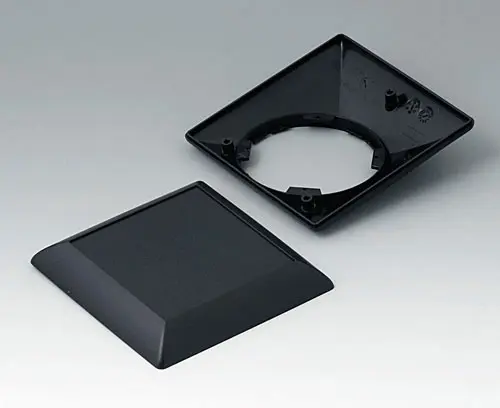

B5012209
Bottom and top part S110 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclinded"
Supply
1 top and bottom part S110 F, assembly kit
Chiudi
Bottom and top part S110 F
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
110x110x38mm
Accessory "battery"
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Supply
1 double contact, 2 single contacts
Chiudi
Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated
Accessory "protection"
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply
1 strain relief device, 2 screws
Chiudi
Strain relief
Prodotto aggiunto alla lista
PA 6
volcano
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Chiudi
Anti-rotation device
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Chiudi
Wall mounting set
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Chiudi
Set of screws
Prodotto aggiunto alla lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Chiudi
Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
Componenti minimi
1 parte inferiore e superiore O160.
1 coperchio / coperchio vano batterie / base / base 30° o base 55° (a seconda della versione della parte inferiore e dell'inserto vano batterie).
System components to complete

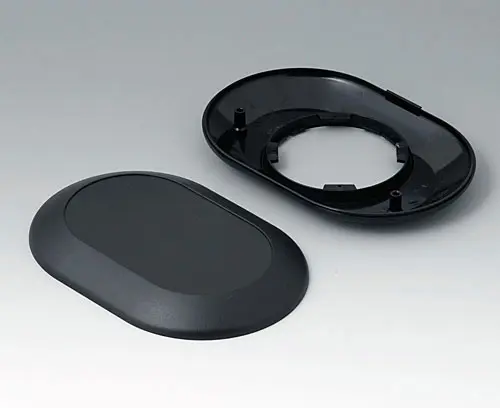

B5015009
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part O160 F, assembly kit
Chiudi
Bottom and top part O160 F
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
160x110x30mm

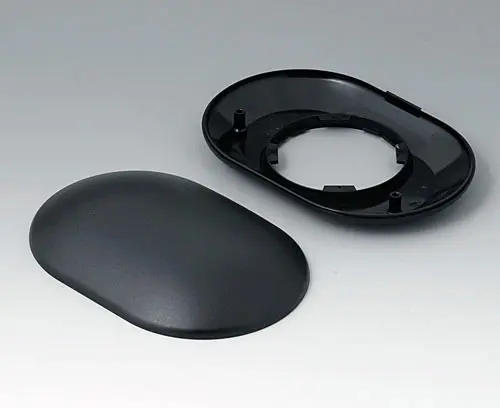

B5015109
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.
Version
Bottom part "level"
Supply
1 top and bottom part O160 H, assembly kit
Chiudi
Bottom and top part O160 H
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
160x110x38mm

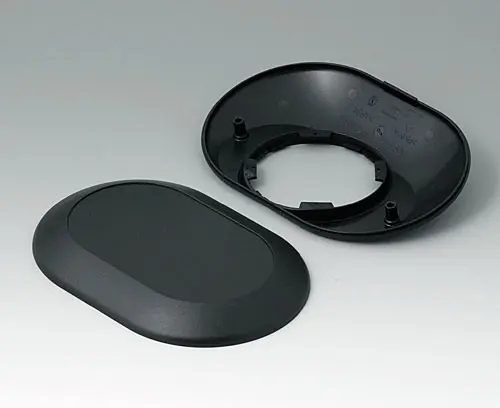

B5015209
Bottom and top part O160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 F, assembly kit
Chiudi
Bottom and top part O160 F
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
160x110x38mm
B5015309
Bottom and top part O160 H
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part O160 H, assembly kit
Chiudi
Bottom and top part O160 H
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
160x110x41mm
Accessory "battery"
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Supply
1 double contact, 2 single contacts
Chiudi
Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated
Accessory "protection"
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply
1 strain relief device, 2 screws
Chiudi
Strain relief
Prodotto aggiunto alla lista
PA 6
volcano
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Chiudi
Anti-rotation device
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Chiudi
Wall mounting set
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Chiudi
Set of screws
Prodotto aggiunto alla lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Chiudi
Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
Componenti minimi
1 parte inferiore e superiore E160.
1 coperchio / coperchio vano batterie / base / base 30° o base 55° (a seconda della versione della parte inferiore e dell'inserto vano batterie).
System components to complete
B5017209
Bottom and top part E160 F
Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.
Version
Bottom part "inclined"
Supply
1 top and bottom part E160 F, assembly kit
Chiudi
Bottom and top part E160 F
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
160x110x38mm
Accessory "battery"
A9190002
Set of battery clips, 2xN/2xAA/2xAAA
For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).
Supply
1 double contact, 2 single contacts
Chiudi
Set of battery clips, 2xN/2xAA/2xAAA
Prodotto aggiunto alla lista
Steel
tin-plated
Accessory "protection"
A9199005
Strain relief
Frame for securing the cable on existing supports. Suitable for cable ø approx. 5-7 mm.
Supply
1 strain relief device, 2 screws
Chiudi
Strain relief
Prodotto aggiunto alla lista
PA 6
volcano
B5111707
Anti-rotation device
To prevent the base from being removed.
Supply
Anti-rotation device, incl. screws
Chiudi
Anti-rotation device
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
off-white RAL 9002
Accessory "wall/holder"
B5111309
Wall mounting set
Suitable for all versions (except Euro Plug versions), for secure wall mounting of the enclosures (machining lid/bases necessary).
Supply
Wall mounting set, incl. safety screws
Chiudi
Wall mounting set
Prodotto aggiunto alla lista
ABS
(UL 94 HB)
black RAL 9005
Accessory "screws"
B5111201
Set of screws
Screw kit for mounting PCBs. Diameter 2.5 x 5 mm, type PZ1.
Supply
4 screws
Chiudi
Set of screws
Prodotto aggiunto alla lista
Accessory
A9207150
Anti-slide feet 6.5 x 2 mm
Rubber feet with self-adhesive foil facilitate a secure position.
Supply
2 rubber feet
Chiudi
Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent
Customising options for B5011119
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
