B1040365 TOPTEC 102, Vers. I

B1040365

TOPTEC 102, Vers. I

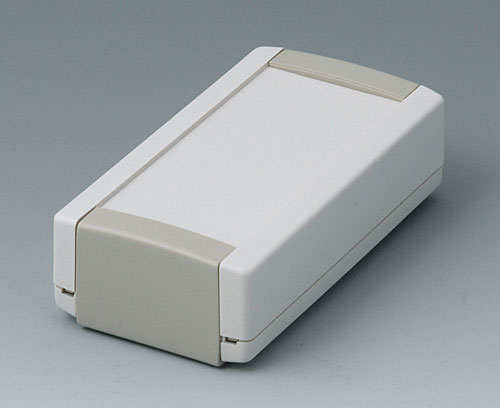

Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the bottom.

Version

without ventilations slots.

Supply

1 case-top and base, 2 end panels

  • Componenti adatti
  • Modifiche specifiche del cliente

Accessory "wall/holder"

B1340028 Wall suspension element for Toptec 102

B1340028

Wall suspension element for Toptec 102 Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply 1 wall suspension element

Chiudi

B1340028

Wall suspension element for Toptec 102
Prodotto aggiunto alla lista
PC+ABS (UL 94 V-0)
pebble grey RAL 7032

Accessory "screws"

A0305031 Self-tapping screws 2.5 x 6 mm (PZ1)

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.

Supply 1 self-tapping screw

Chiudi

A0305031

Self-tapping screws 2.5 x 6 mm (PZ1)
Prodotto aggiunto alla lista
A9199008 Set of screws

A9199008

Set of screws Screw kit for mounting PCBs. Diameter 2.5 x 6 mm, type PZ1.

Supply 4 screws

Chiudi

A9199008

Set of screws
Prodotto aggiunto alla lista

Accessory

A9207150 Anti-slide feet 6.5 x 2 mm

A9207150

Anti-slide feet 6.5 x 2 mm Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Chiudi

A9207150

Anti-slide feet 6.5 x 2 mm
Prodotto aggiunto alla lista
transparent

Customising options for B1040365

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Dati tecnici
  • Disegni / Informazioni
  • Esempi di applicazione
  • Purchasing Data
Protection class
Colore
Bottom and top part off-white RAL 9002,
End panels pebble grey RAL 7032
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
102 mm
Width
54 mm
Height
30 mm
PCB length, base
96 mm
PCB width, base
46 mm
Keypad length
82,6 mm
Keypad width
38 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.147 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
44 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
