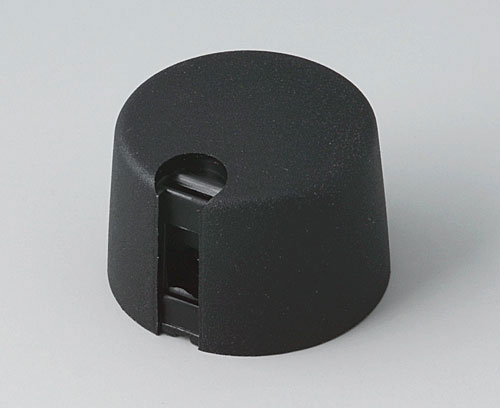

A1024069 TOP-KNOBS 24

A1024069

TOP-KNOBS 24

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Lateral screw fixing by hex-socket set screw (1.5 mm) and cup point.
Max. tightening torque: 50 Ncm.

Supply

1 TOP-KNOB

  • Componenti adatti
  • Modifiche specifiche del cliente

System components to complete

A1101003 Pin

A1101003

Pin Marking element simply to pin up, even subsequent exchange is possible. The lateral screw fixing becomes invisible by pinning up. With this, also the contact with live parts will be excluded.

Supply 1 Pin
