EZ031209 Extender kit
Scroll

EZ031209

Extender kit

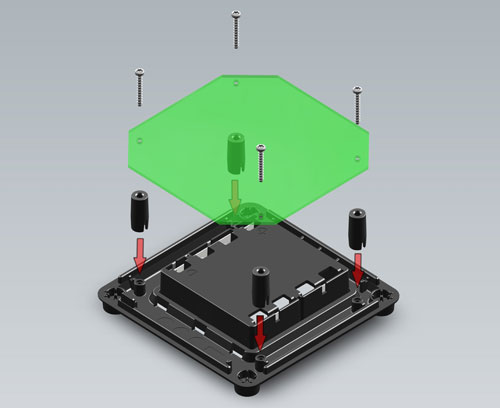

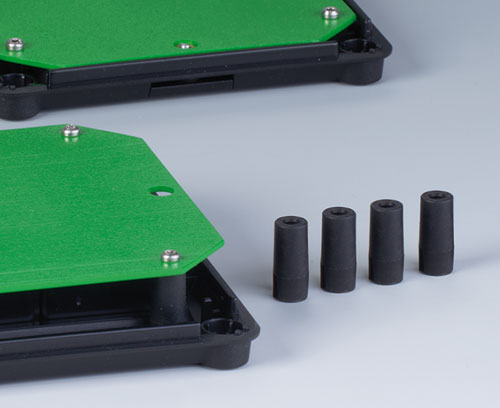

For increasing the height of the attachment domes for PCBs. Required when installing a PCB above the battery compartment (acc.) in the bottom part.

Supply

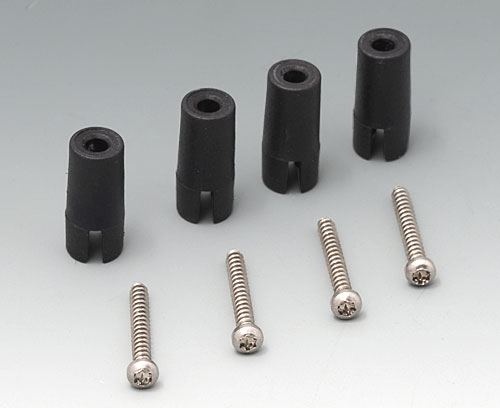

4 extender, 4 screws (Torx 8)

Aggiungi al carrello Aggiungi al carrello Aggiungi al carrello
Prodotto aggiunto alla lista
continua o Vai al carrello
Crea scheda dati PDF

Create la vostra scheda dati PDF per EZ031209

Selezionate le informazioni prodotto per la vostra scheda dati.

Chiudi
  • Usato per
EE163059 SYNERGY E160

EE163059

SYNERGY E160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE163059

SYNERGY E160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x40mm
IP 40
EE166059 SYNERGY E160

EE166059

SYNERGY E160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE166059

SYNERGY E160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x70mm
IP 40
EE169059 SYNERGY E160

EE169059

SYNERGY E160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE169059

SYNERGY E160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x100mm
IP 40
EE183059 SYNERGY E180

EE183059

SYNERGY E180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE183059

SYNERGY E180
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
180x90x40mm
IP 40
EE186059 SYNERGY E180

EE186059

SYNERGY E180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE186059

SYNERGY E180
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
180x90x70mm
IP 40
EE189059 SYNERGY E180

EE189059

SYNERGY E180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE189059

SYNERGY E180
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
180x90x100mm
IP 40
EE203059 SYNERGY E200

EE203059

SYNERGY E200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE203059

SYNERGY E200
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
200x100x40mm
IP 40
EE206059 SYNERGY E200

EE206059

SYNERGY E200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE206059

SYNERGY E200
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
200x100x70mm
IP 40
EE209059 SYNERGY E200

EE209059

SYNERGY E200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EE209059

SYNERGY E200
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
200x100x100mm
IP 40
EO163059 SYNERGY O160

EO163059

SYNERGY O160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO163059

SYNERGY O160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x40mm
IP 40
EO166059 SYNERGY O160

EO166059

SYNERGY O160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO166059

SYNERGY O160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x70mm
IP 40
EO169059 SYNERGY O160

EO169059

SYNERGY O160 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO169059

SYNERGY O160
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
160x80x100mm
IP 40
EO183059 SYNERGY O180

EO183059

SYNERGY O180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO183059

SYNERGY O180
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
180x90x40mm
IP 40
EO186059 SYNERGY O180

EO186059

SYNERGY O180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO186059

SYNERGY O180
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
180x90x70mm
IP 40
EO189059 SYNERGY O180

EO189059

SYNERGY O180 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO189059

SYNERGY O180
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
180x90x100mm
IP 40
EO203059 SYNERGY O200

EO203059

SYNERGY O200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit.

Chiudi

EO203059

SYNERGY O200
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
200x100x40mm
IP 40
EO206059 SYNERGY O200

EO206059

SYNERGY O200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO206059

SYNERGY O200
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
200x100x70mm
IP 40
EO209059 SYNERGY O200

EO209059

SYNERGY O200 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

EO209059

SYNERGY O200
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
200x100x100mm
IP 40
ER103059 SYNERGY R100

ER103059

SYNERGY R100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 2 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER103059

SYNERGY R100
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀100x40mm
IP 40
ER106059 SYNERGY R100

ER106059

SYNERGY R100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 2 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER106059

SYNERGY R100
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀100x70mm
IP 40
ER109059 SYNERGY R100

ER109059

SYNERGY R100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 2 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER109059

SYNERGY R100
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀100x100mm
IP 40
ER123059 SYNERGY R120

ER123059

SYNERGY R120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER123059

SYNERGY R120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀120x40mm
IP 40
ER126059 SYNERGY R120

ER126059

SYNERGY R120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER126059

SYNERGY R120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀120x70mm
IP 40
ER129059 SYNERGY R120

ER129059

SYNERGY R120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 3 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER129059

SYNERGY R120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀120x100mm
IP 40
ER143059 SYNERGY R140

ER143059

SYNERGY R140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER143059

SYNERGY R140
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀140x40mm
IP 40
ER146059 SYNERGY R140

ER146059

SYNERGY R140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER146059

SYNERGY R140
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀140x70mm
IP 40
ER149059 SYNERGY R140

ER149059

SYNERGY R140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with high UV protection and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ER149059

SYNERGY R140
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
⌀140x100mm
IP 40
ES103059 SYNERGY S100

ES103059

SYNERGY S100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES103059

SYNERGY S100
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
100x100x40mm
IP 40
ES106059 SYNERGY S100

ES106059

SYNERGY S100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES106059

SYNERGY S100
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
100x100x70mm
IP 40
ES109059 SYNERGY S100

ES109059

SYNERGY S100 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES109059

SYNERGY S100
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
100x100x100mm
IP 40
ES123059 SYNERGY S120

ES123059

SYNERGY S120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES123059

SYNERGY S120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
120x120x40mm
IP 40
ES126059 SYNERGY S120

ES126059

SYNERGY S120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES126059

SYNERGY S120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
120x120x70mm
IP 40
ES129059 SYNERGY S120

ES129059

SYNERGY S120 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES129059

SYNERGY S120
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
120x120x100mm
IP 40
ES143059 SYNERGY S140

ES143059

SYNERGY S140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES143059

SYNERGY S140
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
140x140x40mm
IP 40
ES146059 SYNERGY S140

ES146059

SYNERGY S140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES146059

SYNERGY S140
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
140x140x70mm
IP 40
ES149059 SYNERGY S140

ES149059

SYNERGY S140 4-part enclosure for many different applications. Sturdy frame made of aluminium, glass bead-blasted and anodised. Plastic parts made of ASA+PC-FR with good UV resistance and high flame resistance. Attachment domes for PCBs and components in the top and bottom parts. Top part with recessed surface to protect the membrane keyboard. Bottom part with opening and screw-down cover: practical for the use of a battery compartment or for access to the interior, e.g. for a memory card or batteries that are mounted directly on the PCB. Battery compartment kit 4 x AA with contact springs, battery clips, button cell holder and wall mounting option as accessories.

Supply Top part, bottom part, lid, aluminium profile, assembly kit

Chiudi

ES149059

SYNERGY S140
Prodotto aggiunto alla lista
Aluminium AlMgSi 0,5
matt anodised
140x140x100mm
IP 40
  • Dati tecnici
  • Purchasing Data
Materiale
ASA+PC (UL 94 V-0)
Plastic parts
Colore
black RAL 9005
Standards
RoHS compliant
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
