A9257409 Case feet, Vers. I

A9257409

Case feet, Vers. I

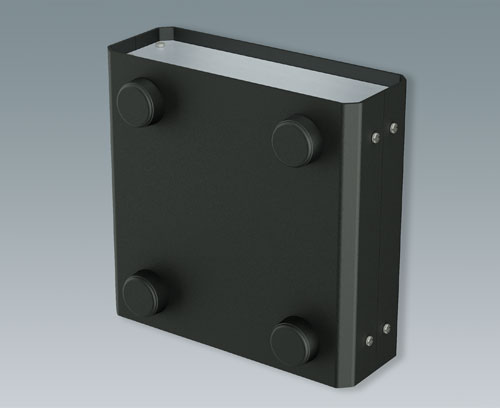

Universal case feet for all types of plastic and metal enclosures with max. 3 mm wall thickness.

Version

Without tilt legs

Supply

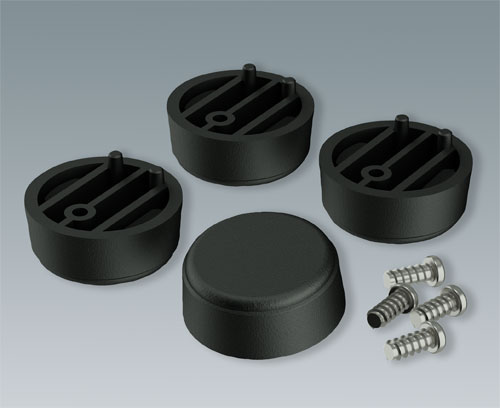

4 foot mouldings, 4 rubber inserts, 4 self-tapping screws

  • Dati tecnici
  • Disegni / Informazioni
  • Purchasing Data
Colore
black RAL 9005
Diameter
⌀ 30 mm
Height
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

  • Vista 3D in PDF (ruotare prodotto di 360°, nascondere/mostrare componenti ecc.) 1.711 KB

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
28 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
