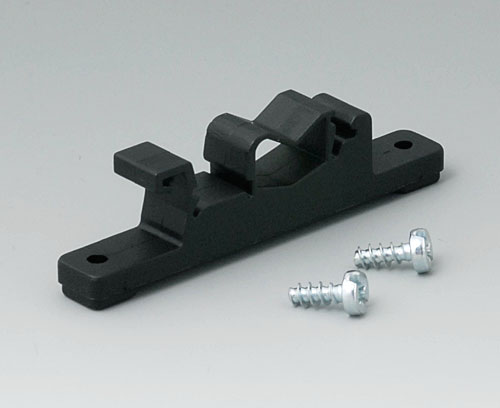

B1300019 Fastening element for DIN-Rails

B1300019

Fastening element for DIN-Rails

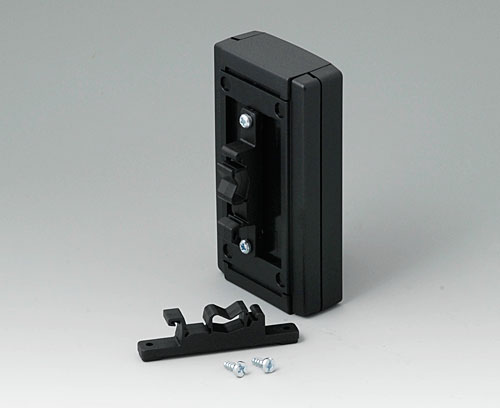

Especially for TOPTEC starting from size 123 F/H. For fastening the cases to DIN-rails according to DIN EN 60715 (TH35, G32). Easy assembly. 2 boreholes ø 3 mm required.

Supply

1 piece incl, assembly kit

  • Usato per
B1050369 TOPTEC 123 H, Vers. I

B1050369

TOPTEC 123 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1050369

TOPTEC 123 H, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
123x68x45mm
IP 40
B1050469 TOPTEC 123 H, Vers. II

B1050469

TOPTEC 123 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1050469

TOPTEC 123 H, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
123x68x45mm
IP 40
B1055369 TOPTEC 123 F, Vers. I

B1055369

TOPTEC 123 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1055369

TOPTEC 123 F, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
123x68x30mm
IP 40
B1055469 TOPTEC 123 F, Vers. II

B1055469

TOPTEC 123 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and bottom.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1055469

TOPTEC 123 F, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
123x68x30mm
IP 40
B1060369 TOPTEC 154 H, Vers. I

B1060369

TOPTEC 154 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1060369

TOPTEC 154 H, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
154x84x56mm
IP 40
B1060469 TOPTEC 154 H, Vers. II

B1060469

TOPTEC 154 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1060469

TOPTEC 154 H, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
154x84x56mm
IP 40
B1065369 TOPTEC 154 F, Vers. I

B1065369

TOPTEC 154 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1065369

TOPTEC 154 F, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
154x84x38mm
IP 40
B1065469 TOPTEC 154 F, Vers. II

B1065469

TOPTEC 154 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1065469

TOPTEC 154 F, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
154x84x38mm
IP 40
B1070369 TOPTEC 194 H, Vers. I

B1070369

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1070369

TOPTEC 194 H, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
194x115x68mm
IP 40
B1070469 TOPTEC 194 H, Vers. II

B1070469

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1070469

TOPTEC 194 H, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
194x115x68mm
IP 40
B1075369 TOPTEC 194 F, Vers. I

B1075369

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1075369

TOPTEC 194 F, Vers. I
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
194x115x46mm
IP 40
B1075469 TOPTEC 194 F, Vers. II

B1075469

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Chiudi

B1075469

TOPTEC 194 F, Vers. II
Prodotto aggiunto alla lista
ABS (UL 94 HB)
black RAL 9005
194x115x46mm
IP 40
  • Dati tecnici
  • Purchasing Data
Materiale
Colore
black RAL 9005
Standards
RoHS compliant
DIN EN 60715 G32
DIN EN 60715 TH35
REACH compliant
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
6 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
